Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Excavator > SW210E Pengpu Crawler Excavators

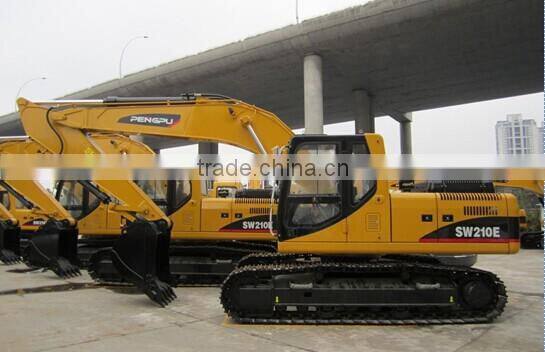

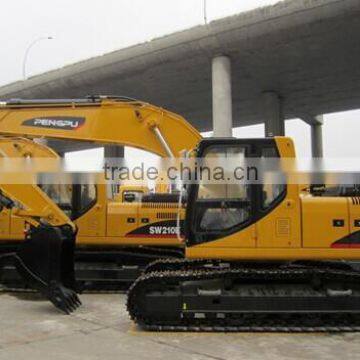

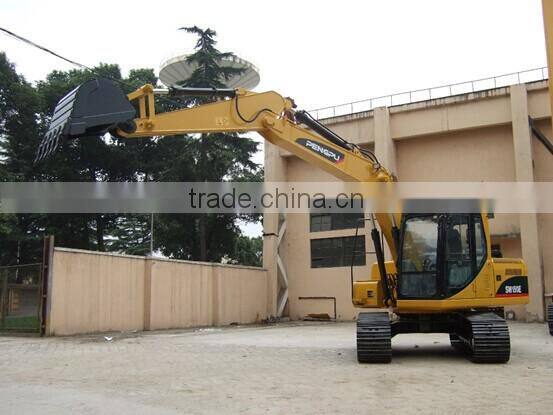

SW210E Pengpu Crawler Excavators

Name: SW210E Pengpu Crawler Excavators
Brand: Pengpu
SKU: 140733794
Availability: InStock

SW210E Pengpu Crawler Excavators thumbnail-1

SW210E Pengpu Crawler Excavators photo-1

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Pengpu

Model Number:

SW210E

Contact Supplier Request Quote Chat Now

Hk Mingyang International (group) Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Tianjin/Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Pengpu

Model Number SW210E

Condition New

Moving Type Crawler Excavator

Operating Weight 21470 kg

Bucket capacity 0.90 m3

Maximum Digging Height 9489 mm

Maximum Digging Depth 6638 mm

Machine Weight 21470 kg

Max Digging Radius 9910 mm

Rated Speed 3.1/5.4 km/h

Certification ISO9001 Certification

After-sales Service Provided Engineers available to service machinery overseas

SW210E Pengpu Crawler Excavators

NO.	DESCRIPTION			SPECIFICATON
1	Main machine
	(1)	Working weight		21470kg
	(2)	Bucket capacity		0.90M3
	(3)	Track width		600mm/800mm
	(4)	Transport dimension		954029803020(mm)
	(5)	Overall dimension	Length of track on ground	3650mm
			Ground clearance of counter weight	1070mm
			Total length	9540mm
			Total height	3130mm
			Total width	2980mm
			Track gauge	2380mm
			Min. ground clearance	490mm
			Track width	600mm
			Track height	945mm
			Tail swing radius	2810mm
	(6)	Working range	Max. working radius	9910mm
			Max. digging depth	6638 mm
			Max. vertical digging depth	6057 mm
			Max. digging height	9489mm
			Max. dump height	6672mm
			Min. swing radius	3650mm
	(7)	Performance	Ground pressure	44Kpa/35Kpa
			Swing speed	12r/min
			Traveling speed high/low	5.4/3.1km/h
			Grade ability	35°
			Noise inside the cab	≤80db(A)
			Fuel tank	360L
	(5)	Engine	Company	Cummins 6BTA5.9-C
			Type	6 cylinder, inline, turbocharged
			Rated horsepower	112KW/1950rpm
			Bore-stroke	102*120mm
			Displacement	5.9L
			Min. fuel consumption	≤228g/kw.h
			Max. torque / revolution	597Nm/1600rpm
	(6)	Main hydraulic pump	Company	KAWASAKI
			Type	K3V112DT-1X7R-9N2P-1V
			Rated pressure	31.4Mpa
			Max. delivery	208*2L/min
			Pump type	2*variable flow axial piston pump+1 gear pump
			Method of power adjustment	Gross power adjustment + variable power + negative flow control
	(7)	Swing motor	Company	KAWASAKI
			Type	M5X130CHB-10A-12B/260-RG10D20K1
			Rated pressure	25.5Mpa
			Max. delivery	129.2c/rev
	(8)	Travel motor	Company	JAPAN NEBTESCO
			Type	GM35VL-A-75/130
			Rated pressure	34.81MPa
			Max. delivery	130.4cc/rev (max)
	(9)	The pressure of hydraulic control system	Working part	31.4Mpa
			Traveling part	31.4Mpa
			Hydraulic oil tank	160L
			Hydraulic oil filter	Double filter in the tank
	(10)	Swing system	Swing speed	12RPM
	(10)	Swing system	Type	constant closed disc type brake with buffer function
	(11)	Chassis system	Track feature	three grouser, grease tension
			Track rollers and carrier rollers	Floating sealing
			Quantity	2 carrier rollers and 7 track rollers
			Brake type	Hydraulic brake
	(12)	Working equipment	Arm length	5700mm
			Rod length	2800mm
			Bucket digging force	120KN
			Rod crowed force	95KN
	(13)	Driving cab	Cab	Imported cab, SAE certificate
			Air-conditioner	Jiangsu chuang dao
			Seat	Direction adjustment
			Instrument panel	hour meter, engine revolution, oil temperature, water temperature, oil pressure.
	(14)	Electric instrument	Power	24V
			Company	XUZHOU KANG DA
			Battery	VARTA 160A.H
