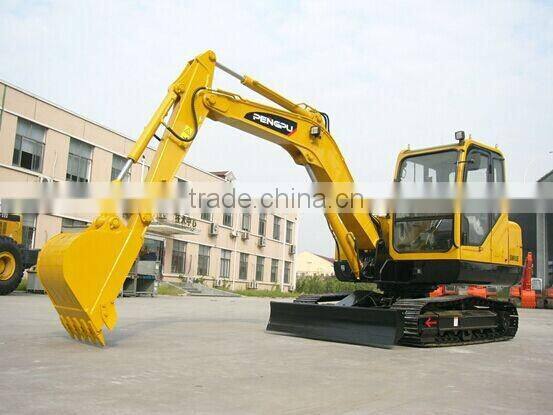

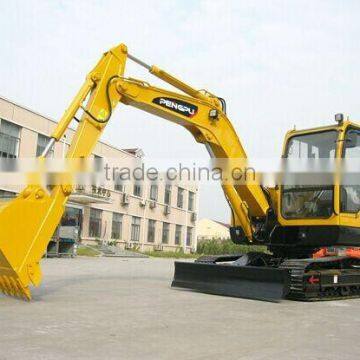

SW60E Small Sized Excavator
Machine model |
SW60E |
|
|
|
|
Standard equipment |
Engine |
JAPAN YANMAR |
Hydraulic pump |
JAPAN NACHI |
|
Control valve |
KOREA JEIL |
|
Swing motor |
KOREA JEIL |
|
Travel motor |
KOREA JEIL |
|
Cylinder |
HENG LI |
|
Electrical Instrument |
YONG QING |
|
Driving cab |
Comfortable |
|
Seat |
Comfortable |
|
Painting |
Nippon Painting |
|
Time of warranty is one year or 2000hours, whichever occurs first.
This price does not include the engineer working overs
SW60E EXCAVATOR SPECIFICATION
NO. |
DESCRIPTION |
SPECIFICATON |
||
|
1 |
Main machine |
|
||
(1) |
Working weight |
6100kg |
||
(2) |
Bucket capacity |
0.22M3 |
||
(3) |
Track width |
400mm |
||
(4) |
Transport dimension |
5900*2660*2025mm |
||
(5) |
Overall dimension |
Length of track on ground |
2000mm |
|
Ground clearance of counter weight |
720mm |
|||
Tail swing radius |
1650mm |
|||
Total length |
5900mm |
|||
Total height |
2660mm |
|||
Total width |
2025mm |
|||
Track gauge |
1600mm |
|||
Min. ground clearance |
340mm |
|||
Track width |
400mm |
|||
Track height |
590mm |
|||
Dozer |
2000*375mm |
|||
(6) |
Working range |
Max. working radius |
6150mm |
|
Max. working radius on the ground |
6110mm |
|||
Max. digging depth |
3850mm |
|||
Max. digging height |
6040mm |
|||
Max. dump height |
4250 mm |
|||
Min. swing radius |
2310mm |
|||
(7) |
Performance |
Ground pressure |
37Kpa |
|
Swing speed |
9.9r/min |
|||
Travelling speed high/low |
4.3/2.3km/h |
|||
Grade ability |
35° |
|||
Noise inside the cab |
≤85db(A) |
|||
Fuel tank |
120L |
|||
(8) |
Engine |
Company |
YANMAR 4TNV94L-FSN |
|
Type |
4 cylinder, inline, turbocharged |
|||
Rated horsepower |
39KW/2200rpm |
|||
Bore-stroke |
94*110mm |
|||
Displacement |
3.054L |
|||
Min. fuel consumption |
≤235g/kw.h |
|||
Max. torque and revolution |
206Nm/2400RPM |
|||
(9) |
Main hydraulic pump |
Company |
NACHI |
|
Type |
PVD-3B-56P-18G5-4191A |
|||
Rated pressure |
21.6Mpa |
|||
Max. delivery |
160L/min |
|||
Pump type |
plunger variable pump + gear pump |
|||
Method of power adjustment |
constant output regulation |
|||
(10) |
Swing motor |
Company |
KOREA JEIL |
|
Type |
JMF-29-01-VBR-RK-19 |
|||
Rated pressure |
21.6Mpa |
|||
Max. delivery |
28.87cc/rev |
|||
(11) |
Travel motor |
Company |
KOREA JEIL |
|
Type |
JMV-44/22-02-VBC-RJ-45 |
|||
|
Rated pressure |
21.6Mpa |
||
Max. delivery |
55L/min |
|||
(12) |
The pressure of hydraulic control system |
Working part |
21.6Mpa |
|
Traveling part |
21.6Mpa |
|||
Hydraulic oil tank |
80L |
|||
Hydraulic oil filter |
Double filter in the tank |
|||
(13) |
Swing system |
Swing speed |
9.9RPM |
|
Type |
constant closed disc type brake with buffer function |
|||
2 |
(14) |
Chassis system |
Track feature |
Double grouser, hydraulic tension |
Track rollers and carrier rollers |
Floating sealing |
|||
Quantity |
1 carrier roller and 5 track rollers each side. |
|||
Brake type |
Hydraulic brake |
|||
(15) |
Working equipment |
Arm length |
3010mm |
|
Rod length |
1610mm |
|||
Bucket digging force |
≥27N |
|||
Rod crowed force |
≥39KN |
|||
(16) |
Driving cab |
Cab |
Imported cab, SAE certificate |
|
Air-conditioner |
Jiangsu chuang dao |
|||
Seat |
Direction adjustment |
|||
Instrument panel |
hour meter, engine revolution, oil temperature, water temperature, oil pressure. |
|||
(17) |
Electric instrument |
Power |
24V |
|
Company |
XUZHOU KANG DA |
|||
Battery |
1×12V×120Ah |
|||
