JC45 Wheel Skid Steer Loader
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
YMO
Model Number:
JC45
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
YMO
Model Number
JC45
Place of Origin
Shandong, China
Type
Skid Steer Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
2900*1300*2000
Rated Load
700 kg
Certification
CE & ISO9001 Certification
Warranty
Within 12 months after delivery
After-sales Service Provided
Engineers available to service machinery overseas

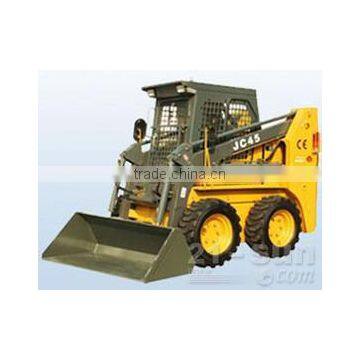

JC45 Wheel Skid Steer Loader
Main features:
u Compact structure, maneuverable movement suitable for narrow space operation.
u Open cabin with mechanical control system.
u Double accelerograph control.
u Multi-function with a wide range of attachments.
u Hydraulic brake.
Technical Parameters:
Model |
Unit |
JC45 |
Rated Operating Capacity |
Kg |
700 |
Tipping load |
Kg |
1400 |
Bucket Capacity |
m3 |
0.36-0.45 |
Work weight |
Kg |
2750 |
Max. travel speed |
km/h |
12 |
Grade ability |
° |
20 |
Tire model |
/ |
10-16.5 |
Fuel/hyd. Oil capacity |
L |
50/50 |
Height at Maximum Extension |
mm |
3670 |
Hinge Pin Height |
mm |
2900 |
Total Height |
mm |
2050 |
Length with Bucket |
mm |
3380 |
Length without Bucket |
mm |
2450 |
Width with Bucket |
mm |
1740 |
Track Width |
mm |
1450 |
Wheelbase |
mm |
991 |
Ground Clearance |
mm |
185 |
Dumping Angle |
° |
40 |
Dumping Height |
mm |
2310 |
Maximum Reach |
mm |
710 |
