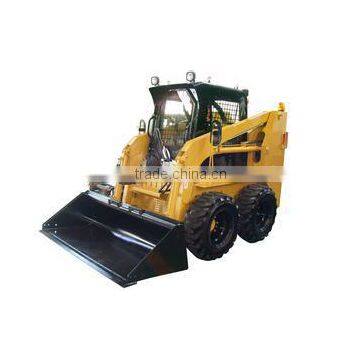

JC50D Mini Skid Loader
Main features:
u Compact structure, maneuverable movement suitable for narrow space operation.
u Open cabin with mechanical control system.
u Double accelerograph control.
u Multi-function with a wide range of attachments.
u Hydraulic brake.
u Solid tire.
Technical Parameters:
Model |
Unit |
JC50D |
Rated Operating Capacity |
Kg |
750 |
Tipping load |
Kg |
1500 |
Bucket Capacity |
m3 |
0.3 |
Hydraulic Pump Flow |
L/min |
75 |
Engine power |
HP |
60 |
Weight |
Kg |
2900 |
Max. travel speed |
km/h |
8 |
Gradeability |
° |
20 |
Tire model |
/ |
28×9-15 |
Fuel/hyd. Oil capacity |
L |
75/75 |
Height at Maximum Extension |
mm |
3300 |
Hinge Pin Height |
mm |
2810 |
Total Height |
mm |
1600 |
Length with Bucket |
mm |
3490 |
Length without Bucket |
mm |
2900 |
Width with Bucket |
mm |
1680 |
Track Width |
mm |
1400 |
Wheelbase |
mm |
991 |
Ground Clearance |
mm |
150 |
Dumping Angle |
° |
40 |
Dumping Height |
mm |
1500 |
Maximum Reach |
mm |
1000 |
