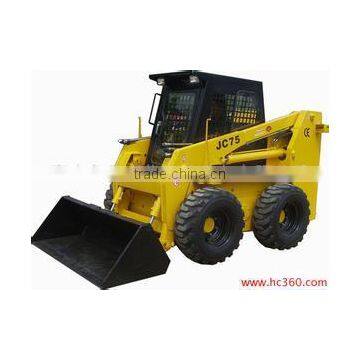

JC75 Wheeled Skid Steer
Main features:
u Compact structure, maneuverable movement suitable for narrow space operation.
u Close cabin with joystick control system.
u Extended wheelbase.
u High flow double output.
u Double accelerograph control.
u Auto-leveling system.
u Multi-function with a wide range of attachments.
u Hydraulic brake.
Technical Parameters:
Model |
Unit |
JC75 |
Rated Operating Capacity |
Kg |
1050 |
Tipping load |
Kg |
2100 |
Bucket Capacity |
m3 |
0.55 |
Lifting Force |
Kg |
2400 |
Hydraulic Pump Flow |
L/min |
75/125 |
Engine power |
HP |
75 |
Weight |
Kg |
3500 |
Max. travel speed |
km/h |
12/18 |
Gradeability |
° |
20 |
Tire model |
/ |
12-16.5 |
Fuel/hyd. Oil capacity |
L |
90/90 |
Height at Maximum Extension |
mm |
4070 |
Hinge Pin Height |
mm |
3150 |
Total Height |
mm |
2050 |
Length with Bucket |
mm |
3560 |
Length without Bucket |
mm |
2780 |
Width with Bucket |
mm |
1900 |
Track Width |
mm |
1500 |
Wheelbase |
mm |
1185 |
Ground Clearance |
mm |
200 |
Dumping Angle |
° |
40 |
Dumping Height |
mm |
2450 |
Maximum Reach |
mm |
710 |
