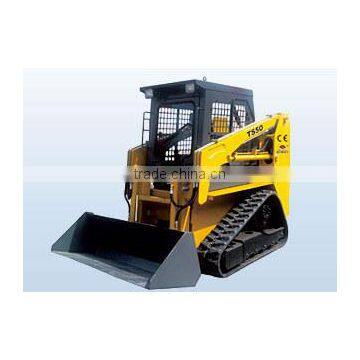

TS50 Crawler Skid Steer Loader
Main features:
u The main components are all of international famous brand. The machine obtained 8 national patents.
u The machine power covers 30-120hp; It has several controlling modes, such as manual control, hydraulic control and electronic control; High-speed gear transmission and low-speed chain driving are available.
u Open type and closed type cabin, air conditioner are optional.
u Special models of extra narrow and low types are available.
Technical Parameters:
Model |
Unit |
TS50 |
Turning method |
/ |
skid steering |
Bucket Capacity |
m3 |
0.3 |
Rated loading capacity |
kg |
700 |
Hydraulic Pump Flow |
L/min |
40 |
Fuel/hyd. Oil capacity |
L |
50 |
Crawler size |
/ |
300 ×52.5×72 |
Max. traveling speed |
km/h |
8 |
Machine weight |
t |
2800 |
Total height |
mm |
2050 |
Ground clearance |
mm |
180 |
Max. Lifting |
mm |
2770 |
Crawler chassis length |
mm |
1600 |
Length without bucket |
mm |
2300 |
Length with bucket |
mm |
2950 |
Track ground length |
mm |
1240 |
Machine width |
mm |
1500 |
