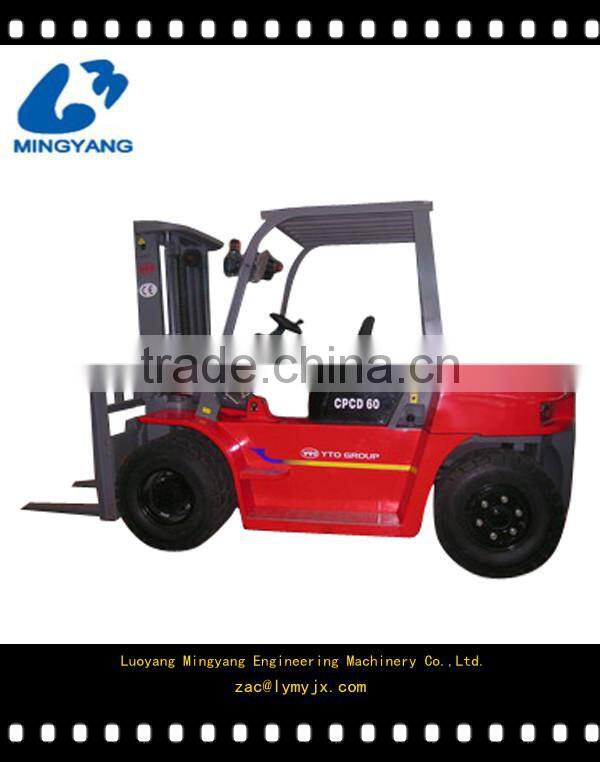

CPCD60 6t Diesel Fork Lift
Main features:
Digital intelligent driving control system can facilitate obtaining the operation data of forklift so as to achieve the whole-process control.
Full hydraulic steering system, can greatly reduce the fatigue of operator, uses crank sliding piece steering and compact structure.
Big arch design on top of the ballast can improve the visibility of rear view; can guarantee the optimum visibility when drive reverses within fixed distance.
The engine hood can open by 90°, and can be effectively supported with air spring so as to facilitate the inspection and maintenance.
The gantry rail section design will be optimized; the interior width is enlarged so that the driver can enjoy a wide scope of eyesight.
The engine has good performance; it has virtues in operation in stability, low noise, low vibration and low consumption.
Technical Specifications:
| Speciality parameter | Model | Unit | CPCD60 | |||
| Power type | Diesel | |||||
| Rated capacity | kg | 6000 | ||||
| Load center | d | mm | 600 | |||
| Lift height | h2 | mm | 3000 | |||
| Mast tilt angle (forward/backward) | α/β | Deg | 6/12 | |||
| Wheel-base | L4 | mm | 2250 | |||
| Tread(front/rear) | b4/b5 | mm | 1470/1700 | |||
| Performance parameter | Travel brake | Hydraulic-Foot pedal | ||||
| Parking brake | Mechanical-Hand level | |||||
| Lift speed(with/without load) | mm/s | 350/380 | ||||
| Lower speed (with/without load) | mm/s | (with load)<600 (without load)>300 | ||||
| Travel speed (with/without load) | km/h | 20/21 | ||||
| Max. gradeability (with load) | % | 20 | ||||
| Max. Towing (with/without load) | kN | 42/32 | ||||
| Weight Distribution with load(front/rear) | 11380/1720 | |||||
| Weight Distribution without load(front/rear) | 3740/4360 | |||||
|
Power, transmission and others |
Engine | Model | LR4B3-24 | |||
| Manufacturer | YTO | |||||
| Rated power | kw | 64/2400 | ||||
| Max. rotation | Nm/rpm | 288/1700 | ||||
| Displacement | L | 4.578 | ||||
| Battery | Voltage | V | 24 | |||
| Capacity | Ah | 2×100 | ||||
| Gearbox | Transmission type | Hydraulic | ||||
| Gears,speed (front/rear) | Ⅱ/Ⅱ | |||||
| Tire | type | Spare tyres | ||||
| Model | Front | 8.25-15-14PR | ||||
| Rear | 8.25-15-14PR | |||||
| Others | Self.weight | kg | 8100 | |||
| Free lift height | h4 | mm | 195 | |||
| Fork | Thickness×Width×Length | c×b×a | mm | 60×150×1220 | ||
|
Overall dimensions |
Overall length(without forks) | L2 | mm | 3510 | ||
| Overall width | b1 | mm | 1995 | |||
|
Overall height |
Extended height(mast) | h1 | mm | 4365 | ||
| Lower height(mast) | h3 | mm | 2500 | |||
| Overhead guard | h7 | mm | 2470 | |||
| Min. turning radius | Wa | mm | 3300 | |||
| Min. under ground clearance | Under mast | m1 | mm | 195 | ||
| Center of wheel-base | m2 | mm | 200 | |||
