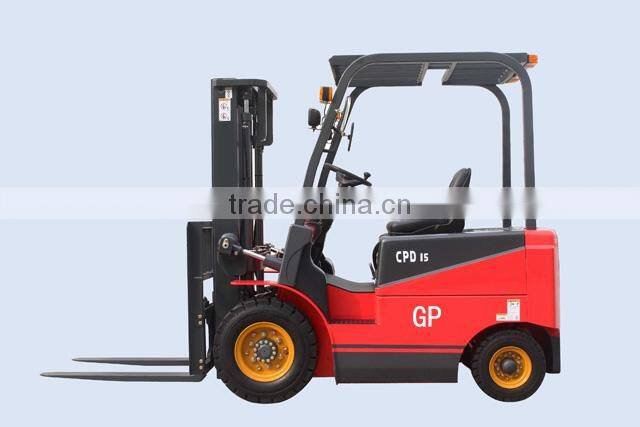

1.5ton Electric Forklift in Refrigeration House Minus 20degree

1.5ton Electric Forklift in Refrigeration House Minus 20degree thumbnail-1
1.5ton Electric Forklift in Refrigeration House Minus 20degree photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New, new
Brand Name:
GP
Model Number:
CPD15
Contact Supplier Request Quote Chat Now
Shanghai Gather Power Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GP
Model Number CPD15
Type Other, Electric forklift, Electric forklift
Power Souce DC Motor
Rated Loading Capacity 1500kg
Max. Lifting Height 6000mm
Min. Lifting Height 2100mm
Fork Length 920mm
Fork Width 100mm
Overall Dimensions 2056x1090x2162mm
Certification ISO,CE
After-sales Service Provided Engineers available to service machinery overseas
General   Manufacturer   GP
1 Model   CPD20 CPD25 CPD30

2 Rated capacity kg 2000 2500 3000
3 Load center mm 500
4 Power type   Battery
5 Tire type Front/Rear   Pneumatic
6 Wheels Front/Rear   2*2
Dimensions 7 Lift height mm 3000
8 Free lift height mm 140 145
9 Fork size L*W*T mm 1070*120*40 1070*120*45
10 Mast tilt angle Fwd/Bwd deg 6/12 6/10
11 Overall length (without fork) mm 2349 2381 2481
12 Overall width mm 1152 1265
13 Mast height fork lowered mm 2060 2040
14 Overall height fork raised mm 4040 4273
15 Overall height (overhead guard) mm 2159 2125
16 Turning radius (outside) mm 2050 2100 2230
17 Load distance (centerline of front axle to front face of forks) mm 479 484 454
18 Minimum Aisle -90. stack(Add load length and clearance) mm 4160 4360 4850
19 Wheel base mm 1500 1630
20 Tread Front mm 960 1040
21 Rear mm 950 980
22 Min. Under-clearance Bottom of mast mm 100/120 85/105
23 Bottom of frame mm 100/120 120/140
Performance 24 Speed Travel Max. With load km/h 11 10.5 12
25 Without load km/h 12.5 12.5 13
26 Lifting With load km/h 260 250 250
27 Without load km/h 400 390 380
28 Max. Drawbar pull With/without load Kn 8 8 10
29 Max.Gradeability With/without load % (fan) 10 10
Weight 30 Service weight kg 4160 4360 4850
Tyre 31 Tyre Size Front   7.00-12-12PR 23*9-10
32 Rear   18*7-8-14PR 18*7-8
power control 33 Battery Voltage V 48 80
34 Capacity AH *630/700 *500/600
35 Hyfraulic motor drive motor kw/rpm 7.0/1400 10.2/1500
36 lift motor kw 8.6/1600 10/2000
37 controller   GE separate excitation controller
38



We MANUFACTURE and EXPORT full range of material handling equipments made in China. These Products are

internal combustion forklift, electric forklifts, reach truck, electric stacker, hand pallet jack, order picker, tractor,

wheel loader, container crane, as well as various forklift attachments and spare parts such as side shifter, rotator,

paper roll clamp…etc. Above items have been exported to more than 70 countries.

Should you have any question, please don’t hesitate to contact me.

1.5ton electric forklift in refrigeration house minus 20degree1.5ton electric forklift in refrigeration house minus 20degree1.5ton electric forklift in refrigeration house minus 20degree
