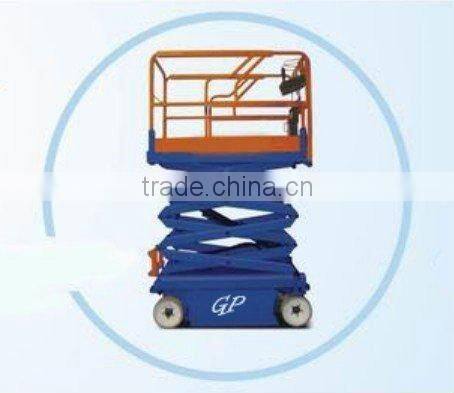

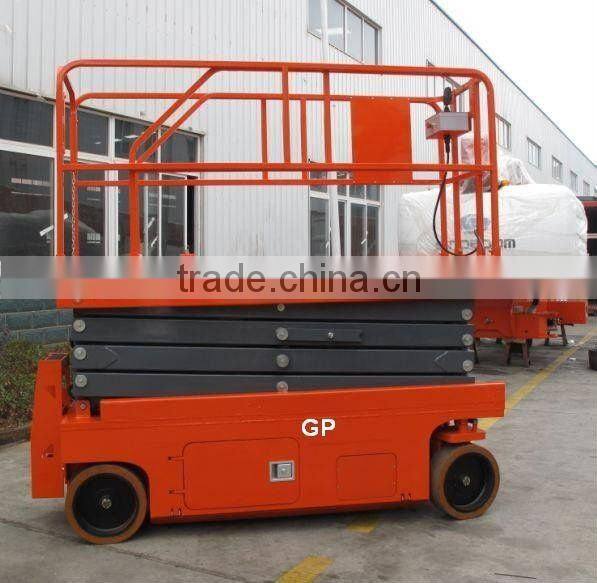

Full Electric Hydraulic Scissor Lift Platform

Shanghai Gather Power Industry Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Model Number:

GTJZ0.45-9.0

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name GP

Model Number GTJZ0.45-9.0

Lift Mechanism Scissor Lift

Lift Drive / Actuation Electric Motor

Rated Loading Capacity 450KG

Min. Lifting Height 9000MM

Max. Lifting Height 11000MM

Certification ISO

After-sales Service Provided Engineers available to service machinery overseas

Specifications

self-propelled, USA WHITE lifter motor

Model	UNIT	GTJZ06	GTJZ07
Max platform height	mm	6000	7400
Max machine height		7100	8500
Min platform height		918		1020
Ground clearance		80
Lift rated capacity	kg	300	250
Platform extend capacity		100	80
Platform size	mm	218707601230
Platform length extended		900
Max drive speed(Platform stowed)	Km/h	3-4
Max drive speed(Platform elevated)		0.6-1
Min turning radius	mm	1900
Max travel grade	%	10-15
Caster size	mm	8
Driving motor	V/kw	2*24/0.4-0.5
Lifting motor		24/3
Aneroid battery	V/Ah	2*12/120
Charger	V/A	24/12
Pothote Protection System	N/A	Auto Mechanism
Overall length	mm	1870
Overall width		900
Overall height		2018		2120
Overall weight		1200		1290
