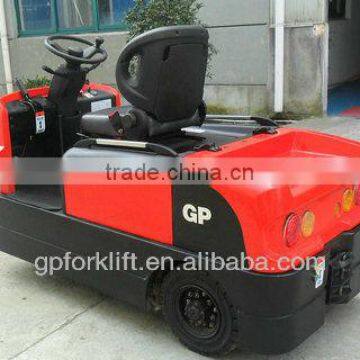

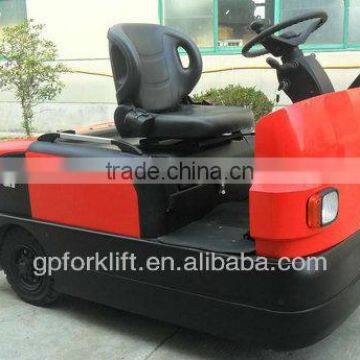

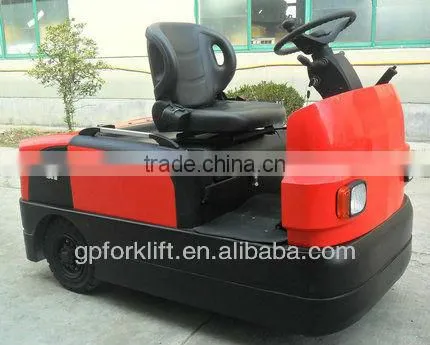

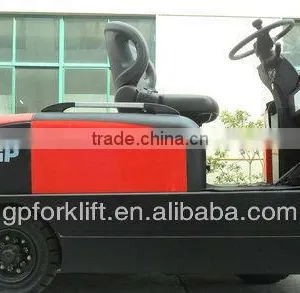

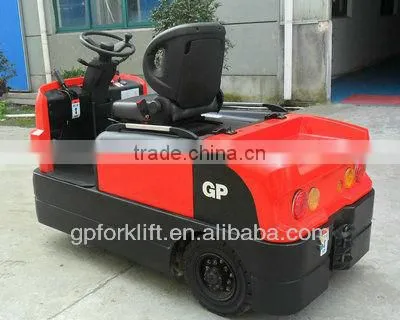

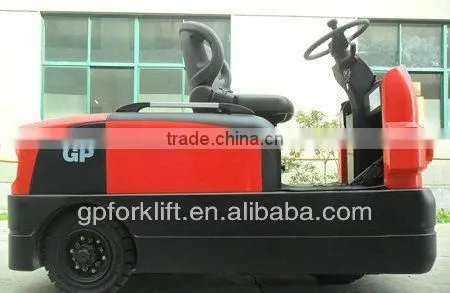

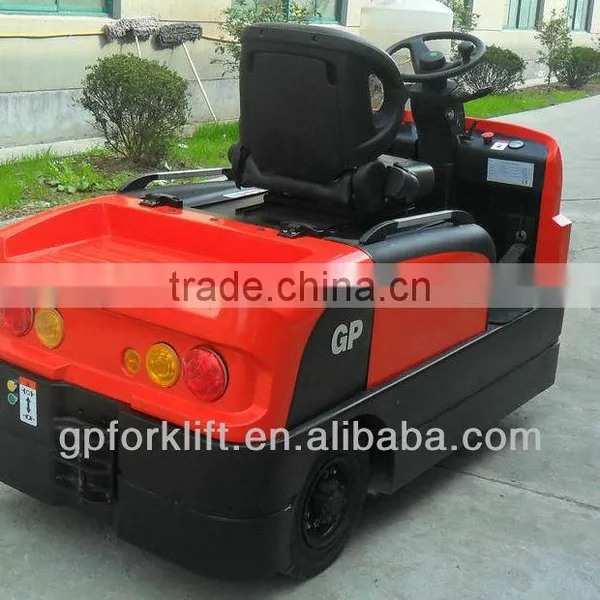

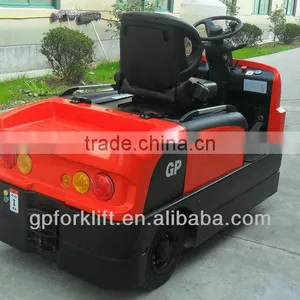

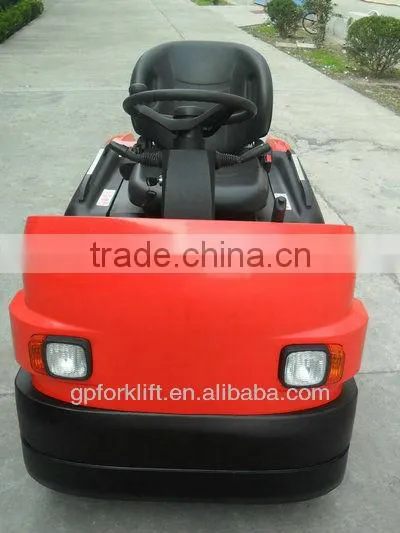

Help CenterElectric Tow Tractor (3-6Ton)
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
By wheel:
2WD
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai or China any port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Brand New Japanese 4JB1 EngineNegotiableMOQ: 1 Set -
SIDE LOADING ELECTRIC FORKLIFT (2 TON)NegotiableMOQ: 1 Set
-
1.5ton Electric Forklift in Refrigeration House Minus 20degreeNegotiableMOQ: 1 Unit
-
10t Diesel ForkliftNegotiableMOQ: 1 Unit
-
Full Electric Hydraulic Scissor Lift PlatformNegotiableMOQ: 1 Unit
Condition
New
Type
Other
By wheel
2WD
Usage
Other
Certificate
CE
Brand Name
GP
Model Number
TG60,TG40,TG20
Place of Origin
Shanghai, China
Specifications
Electric Tow Tractor1. high quality
2. competitive price
3.stable after-service
Electric Tow Tractor
| Detailed Specification of Electric Tow Tractor : | ||||||
| Electric Tow Tractor / Model | TG60 | TG40 | TG30 | |||
| 1 | Feature | Power type | Battery | Battery | Battery | |
| 2 | Operation | Rider seated | Rider seated | Stand | ||
| 3 | Load capacity | Q (kg) | 6000 | 4000 | 3000 | |
| 4 | Rated tractive force | F (N) | 1200 | 1200 | 600 | |
| 5 |
Weight |
Weight | kg | 1150 | 1150 | 550 |
| 6 |
Wheel |
Tyre type | Pneumatic | Pneumatic | Pneumatic | |
| 7 | Dimensions | Overall height | h6 (mm) | 1300 | 1300 | 1560 |
| 8 | Tow coupling height | h10a/b (mm) | 285/365 (235/315,340/420) | 285/365 (235/315,340/420) | 188/233/277/322 | |
| 9 | Stage height(without load) | h11 (mm) | 770 | 770 | —— | |
| 10 | Stage length | l3 (mm) | 370 | 370 | —— | |
| 11 | Stage width | b9 (mm) | 700 | 700 | —— | |
| 12 | Overall length | l1 (mm) | 1900 | 1900 | 1210 | |
| 13 | Overall width | b1/ b2 (mm) | 990/990 | 990/990 | 850 | |
| 14 | Gap between the truck and the ground | m2 (mm) | 150 | 150 | 150 | |
| 15 | Turning radius | Wa (mm) | 1850 | 1850 | 1047 | |
| 16 | Performance | Walking sped(full load/without load) | km/ h | 7/17 | 7/17 | 6/8 |
| 17 | Tractive force(full load/without load) | N | 1200 | 1200 | 600 | |
| 18 | Maximum tractive force(full load/without load) | N | 4500 | 4500 | 1500 | |
| 19 | Gradeability(full load/without load) | % | 5/20 | 3/12 | 2/9 | |
| 20 | Drive |
Driving motor | kW | 4 | 4 | 4 |
| 21 | Battery capacity | V/ Ah | 48/ 325 | 48/280 | 24/210 | |
| 22 | Other |
Driver type and brand | AC ZAPI | AC ZAPI | AC ZAPI | |
| 23 | Tow coupling | PIN | PIN | PIN | ||
Our company is a professional manufacturer of material handling equipments in China,our main products line includes:
30-40 tons mast mobile container crane,
1-25 tons internal combustion forklift trucks,
1-2.5 tons electric reach trucks , electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, forklifts spare parts, etc
Anything you are interested in, pls tell me and I'll quote the favorable price to you.
