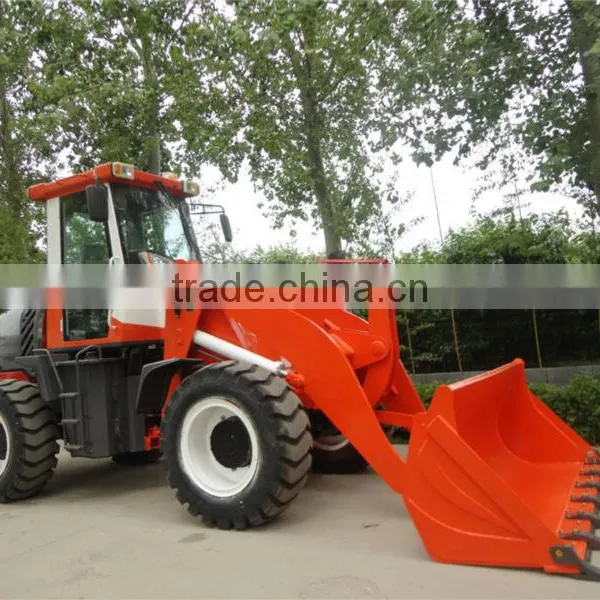

ZL30 Wheel Loader Made in China With Komatsu Technology

US$ 5,000 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

Model Number:

ZL30

Shanghai Gather Power Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name GP

Model Number ZL30

Place of Origin Shanghai, China

Type Mini Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 6900*2050*2950 mm

Rated Load 3000kg

Certification CE,ISO

Warranty 15 months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

3 ton wheel loader with Komastu Technology
1. Load capacity: 3000kg
2. Engine: Cummins engine
3. Cabin available
4. CE

3 ton wheel loader with Komastu Technolpgy

Advantage:

have a special frame,,we did study it from komatsu, the arm is stonger,longer and more stable

Specificaton:

	Item	Parameters
Performance	1 .Rated Load	3000 kg
	2. Total Weight	7000 kg
	3. Rated Bucket Capacity	1.3-1.5 m³
	4. Max. Tractive Force	61 KN
	5. Max. Breakout Force	≥ 72 KN
	6. Max. Gradeability	38°
	7. Dumping Height	3500 mm
	8. Dumping Reach	1300 mm
	9. Raising Time	≤ 6.0 s
	10. Total Cycle Time	≤ 11.5 s
	11. Overall Dimensions (L x W x H)	690020502950 mm
	12. Min. Turning Radius	3800 mm
Engine	13. Model	Cummins 4BTA3.9-C105
	14. Type	Four-cylinder, Inline, Water-cooled, Four-stroke Engine
	15. Rated Power	105HP
	16. Rated Speed	2400 rpm
	17. Min. Fuel Consumption Ratio	≤ 210 g/kw·h
Transmission	18. Hydraulic Torque Converter	ZL280 Split Torque Converter
	19. Gear Shift	1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
	20. Max. Speed	25 km/h
Drive Axle	21. Model of Axle	ZL20 Hub Reduction Axle (big)
	22. Wheel Tread	1650 mm
	23. Wheel Base	2600 mm
Drive	24. Mode	4-way Drive
Hydraulic System	25. System Working Pressure	20 MPa
Hydraulic System	26. Fuel Tank Capacity	100 L
Brake System	27. Service Brake	Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
Brake System	28. Parking Brake	Flexible Shaft Controlled Disc Brake
Tyre	29. Type Specification	16/70-24
	30. Front Tyre Pressure	0.40 Mpa
	31. Rear Tyre Pressure	0.35 Mpa
