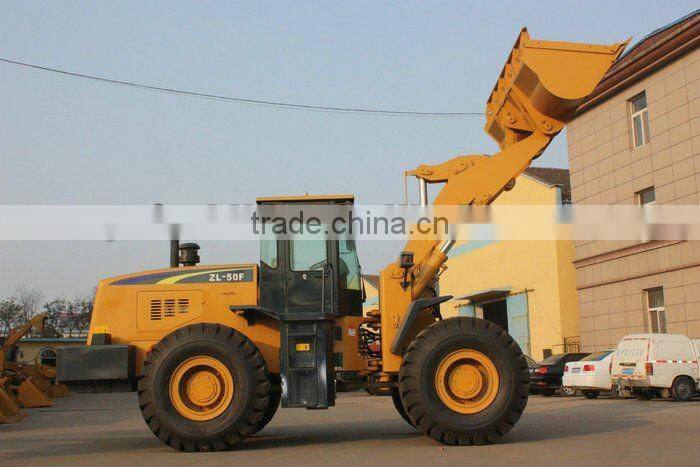

Help Center5 Ton Wheel Loader
Related Products
Advantages:
1.Streamlined appearance design,elegant and generous;
2.Bucket that can be set level automatically,computer is adopted to optimize design,single tipping bucket cylinder"Z"type turning bucket structure,to realize the enormous shovel digging forces;
3.The body is longer and body is heavier.The traction force is bigger and the digging force is bigger;
4.Torque device and gearbox of fixed axle type,higher dependability;
5.Gearbox and torque device has separable structure,reliable performance,convenient maintanence;
6.Dynamical system selects engine of model WD61567G3-29,reliable performance,high efficiency and economizing on fuel;
7.The system of changing direction with load sensing,complete hydraulic,enlarged coaxial flow make it light operation and effectual energy-conservation;
8.Dual pump meeting hydraulic system can economize on oil 10%,fast rise and lift,high working efficiency;
9.Can allocate many kinds of selectable assembly such as wooden fork,pipe fork,grass fork,stone bucket,enlarged bucket etc,to meet the needs of various working states
| Product Name | Wheel Loader |
| Model of engine | ZL50F |
| Rated weight | 5000KG |
| Rated capacity | 3.0m3 |
| Operating weight | 16000KG |
| Model of engine | STEYR WD12G220E11 |
| Rated power | 162KW |
| Rated speed | 2200r/min |
| Max .dump height | 3098mm |
| Max .dump reach | 1198mm |
| Min .ground clearance | 450mm |
| Wheel base | 3200mm |
| Tread | 2250mm |
| Lifting time | Total time:11.3s |
| Lowering time | |
| Unloading time | |
| Max.breakout force | 172.6KN |
| Min.turning tadius | 7268mm |
| Overall dimensions(length*width*height) | 7836x3010x3300mm |
