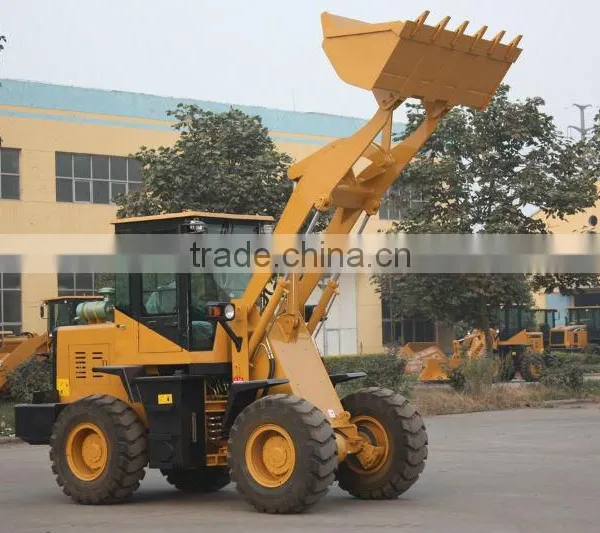

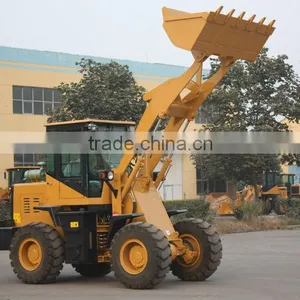

Help Center1.6-3.0T Wheel Loader
Related Products
Advantage:
l Integral new luxury cab, excellent visibility, safety and reliability.
l Fully hydraulic poered steering with flow-amplified system, Pilot operated control for loader hydraulic system, power shift and electric shift optional transmission makes convenient and flexible operating.
l GP new Z bar linkage, high breakout force, short hydraulic cycle time, automatic leveling on any position, and higher productivity.
l Special quadrat type transmission shaft of construction machinery. Power transmission is more reliable.
l EG-TM combination is supported on three points by dual directions, vibration-isolators. Reducing resonance and fatigue failure of structure.
l Optimized structure of diesel engine air intake system reduces dust into air filter, Prolonging the durability of the engine and convenience the service of air filter element. Optimized cooling system drops overall heat balance temperature.
l Integral openable hood made of compound material reduces noise and vibration, and makes operation and service more convenient and flexible.
l Equipped with SHANGHAI,STYRE,or CUMMINS diesel engine, which is of electric starting, electric stopping and excellent performance and reliability.
| Model | ZL16 | ZL18 | ZL20 | ZL28 | ZL30 | |
| Specification | overall weight(kg) | 4400 | 4000 | 5600 | 5800 | 9500 |
| L×W×H(mm) | 5700x1830x2730 | 5700x1830x2730 | 5400X1960X2810 | 6570x2150x2850 | 7050×2430X3120 | |
| rated bucket capacity(m3) | 0.8 | 0.9 | 1.3 | 1.2 | 1.7 | |
| Rated load(kg) | 1600 | 1800 | 2000 | 2800 | 3000 | |
| Maximum dump height (mm) | 3200/3700/4500 | 3200/3700/4500 | 3250 | 3200/3500 | 3020/3250 | |
| Bucket indicator | Yes | Yes | Yes | Yes | Yes | |
| Max. breakout force(KN) | 43 | 43 | 48.8 | 48.8 | 138 | |
| Engine | Model | Weichai4102 | Changchai490 | YTR4108G92 | YTR4108G92 | Xichai/Deutz TD226B/Cummins 6BT5.9-C125 |
| Type | In line,direct injection,four-stroke,liquid cooled | In line,direct injection,four-stroke,liquid cooled | In-line arrangement, direct injection, water cooling, four-stroke | In-line arrangement, direct injection, water cooling, four-stroke | In line,direct injection,four-stroke,liquid cooled | |
| Rated power(kw) | 47 | 39 | 60 | 60 | 92 | |
| Rated speed(r/min) | 2200 | 2200 | 2400 | 2400 | 2200 | |
| Transmission system | Model of torque converter | YJ265 | YJ265 | YJ280 | YJ280 | YJ320B |
| Type | Single-stage, 3 elements | Single-stage, 3 elements | Single grade three componets | Single grade three componets | Single-phase single-stage radial-inward turbine triplex | |
| Gearbox type | Axial full power shift transmission | Axial full power shift transmission | Fixed-spindle power shift | Fixed-spindle power shift | Fixed-spindle power shift | |
| Gear shift | 2 gears ahead,2 gear astern | 2 gears ahead,2 gear astern | 2 gears ahead,2 gear astern | 2 gears ahead,2 gear astern | 2 gears ahead,2 gear astern | |
| Hydraulic system | Distribution of work valve | DF15.2C | DF15.2C | DF20.2C | DF20.2C | DF25 |
| Working pump | CBG2040 | CBG2040 | CBF18 | CBF18 | CBGj2100, CBGq2100 | |
| Steering system | Type | Articulated hydraulic steering | Articulated hydraulic steering | Articulated hydraulic steering | Articulated hydraulic steering | Articulated hydraulic steering |
| Max. turning angle | 35±1° | 35±1° | 35±1° | 35±1° | 36.5±1° | |
| Min turning radius(mm) | 4200 | 4200 | 4500 | 4500 | 5862 | |
| Brake system | Brake type | Air assist oil disc on four wheel | Air assist oil disc on four wheel | Air assisted oil disc on four wheel | Air assisted oil disc on four wheel | Air assisted oil disc on four wheel |
| Tyres | Standard tyres | 22.5-16 | 20.5/70-16 | 16/70-20 | 16/70-20 | 17.5-25 |
| Optional wide tyres | - | - | - | - | - |
