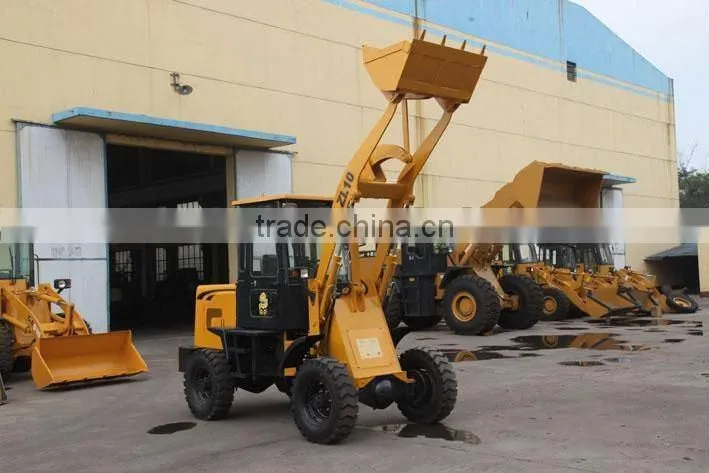

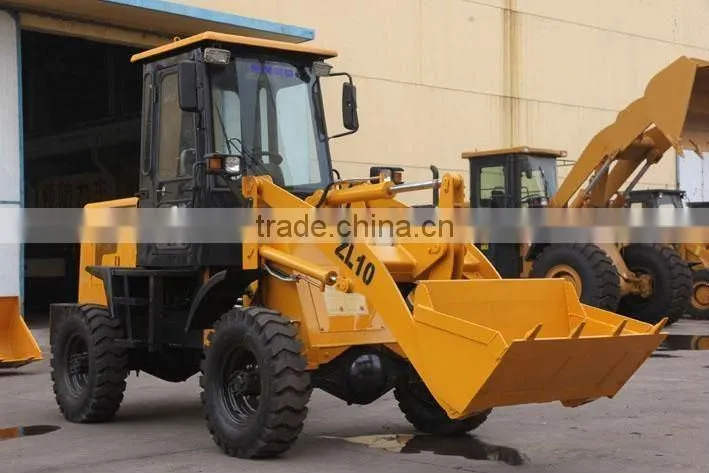

Help CenterNew Design 1 Ton Wheel Loader
Related Products
Specifications
The front frame adopts the box-type structure to ensure the reliable operation1.The small-sized loaders adopts Caterpillar technology and the front frame, movable arm, tension rod and bucket are designed by computer simulation design, features function of automatic leveling
2.The front frame adopts the box-type structure to ensure the reliable operation.
3.The front and back frames both adopt articulated type connected by oscillating bearings and the back frame eliminates the non-standard channel steel; 4.The whole vehicle adopts post-sway stand and eliminates the middle-sway stand located between the front and back frame, ensuring the stress point on the middle axis.
5.ISUZU weight bridge and the transmission case with thickened and widened gears effectively reduce the failure rate of the axle and transmission gear.
6.The control system of clutch adopts mechanical connecting rod and gets rid of clutch cable, making the operation of the clutch handy and reliable and prolonging the service life of the clutch
| Product Name | Wheel Loader |
| odel | ZL10 |
| Rated weight | 1000KG |
| Rated capacity | 0.43m³ |
| Operating weight | 2300KG |
| Model of engine | changchai(L24/L28) |
| Rated power | 17KW/20KW |
| Rated speed | 2200r/min |
| Max .dump height | 2850mm |
| Max .dump reach | 790mm |
| Min .ground clearance | 230mm |
| Wheel base | 2100mm |
| Tread | 1400mm |
| Lifting time | 6s |
| Lowering time | 4s |
| Unloading time | 3s |
| Max.breakout force | |
| Min.turning tadius | 3400mm |
| Overall dimensions(length*width*height) | 4900x1600x2550mm |
