Home > Products > Wheel Loader > China Wheel Loader 1.8-3Ton

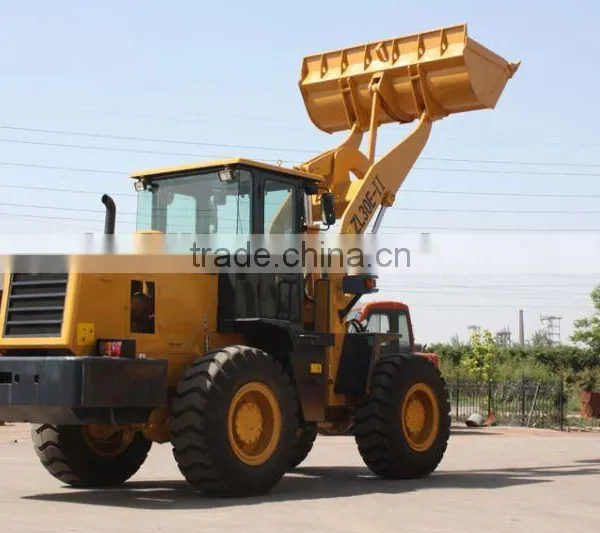

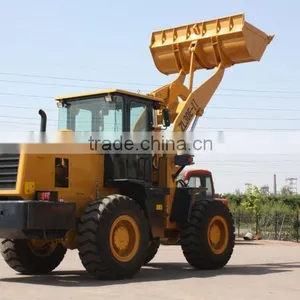

China Wheel Loader 1.8-3Ton
- 1000 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Brand Name: | GP | Model Number: | ZL30 |
Place of Origin: | Shanghai, China | Type: | Mini Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 7050*2430*3120mm | Rated Load: | 3000kg |
Product Description
Specifications
1. ISO and CE certificates1.STEYR diesel engine 2.Single-phase 3. Power and driving system combine in optimize way
WHEEL LOADER | Model | |||||
Item | Specification | ZL18 | ZL20 | ZL28 | ZL30 | ZL30A |
1 | Rated weight | 1800KG | 2000KG | 2800KG | 3000KG | 3000KG |
2 | Rated capacity | 1.03m³ | 1.3m3 | 1.6m3 | 1.7m3 | 1.7m3 |
3 | Operating weight | 4000KG | 7480KG | 6000KG | 9500KG | 9500KG |
4 | Model of engine | Weifang ZH4102 | weifang ZH4102 | luotuo YTR4108 | xichai 6110 | DEUTZ TD226B |
5 | Rated power | 50KW/47 KW | 45KW | 55KW | 85KW | 92KW |
6 | Rated speed | 2200r/min 2400rpm | 2400r/min | 2400r/min | 2300r/min | 2300r/min |
7 | Max .dump height | 3200/3700/4500mm | 2800mm | 3200/3500mm | 3020/3250mm | 3250mm |
8 | Max .dump reach | ≥930mm | 885mm | 1084mm | 1200mm | 1200mm |
9 | Min .ground clearance | 310mm | 310mm | 310mm | 380mm | 380mm |
10 | Wheel base | 2160mm | 2150mm | 2470mm | 2760mm | 2760mm |
11 | Tread | 1080mm | 1440mm | 1380mm | 1800mm | 1800mm |
12 | Lifting time | 4s | Total time:9.8s | Total time:11.3s | Total time:11s | Total time:11s |
13 | Lowering time | 3s | ||||
14 | Unloading time | 2s | ||||
15 | Max.breakout force | 32KN | 48.87KN | 70KN | 138KN | 138KN |
16 | Min.turning radius | 3500mm | 4239mm | 4500mm | 5700mm | 5700mm |
17 | Overall dimensions(length*width*height) | 5800*1730*2800mm | 5910x1910x2810mm | 6150x1970x3000mm | 7050x2430x3120mm | 7050x2430x3120mm |
18 | Engine option | 1. weifang ZH4102 2.WEICHAI HUAFENG ZH402GG41 | 1. weifang ZH4102. 2.WEICHAI HUAFENG R4105G57 | 1. luotuo YTR4108. 2. Xinchai 4105 3 . CUMMINS 4BT3.9 | 1. xichai 6110 2. CUMMINS 6BT5.9 | 1. xichai 6110 2. weichai 6105 3. CUMMINS 6BT5.9 4 DEUTZ TD226B |
1.Hangzhou Advance Gear group WG180 torque converter and fix-shaft gearbox , with ZF technology 2. Single lever pilot control system makes operation easy and comfortable 3.Strengthened axles owns large bearing capacities and high reliability 4.Twin pump merging hydraulic system makes lower consumption and excellent performance 5.The coaxes flow -amplified ,hydraulic compensated steering makes operation easy and performance reliable 6.Air over hydraulic brake system ;eight caliper disc brakes
