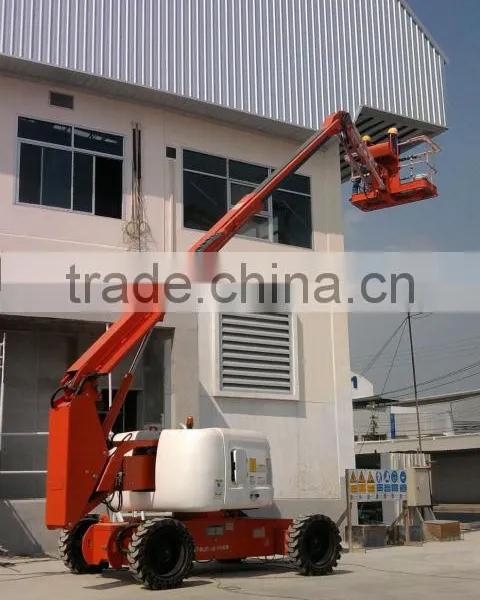

28 Meters Telescopic Boom Lift

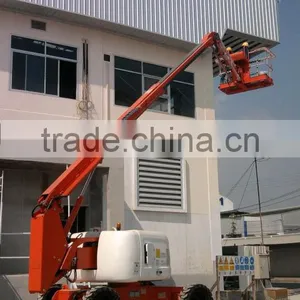

28 Meters Telescopic Boom Lift thumbnail-1
28 Meters Telescopic Boom Lift photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
GP
Model Number:
GTZZ28
Contact Supplier Request Quote Chat Now
Shanghai Gather Power Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name GP
Model Number GTZZ28
Lift Mechanism Articulated Lift
Lift Drive / Actuation Hydraulic
Rated Loading Capacity 250kgs
Max. Lifting Height 30.1 meters
Table Size 1.45 m *0.85 m *1.24 m
Weight 16300kgs
Certification ISO&CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

360 full direction operation
max.load capacity 250 kgs
Self-adaption floating device
Overload limit and rollover protection

Productivity
GTBZ25
GTBZ27
GTBZ28
Platform height max.
25.2M (83ft)
26.7M (88ft)
28.1M (92ft)
Working height max.
27.2M (89ft)
28.7M (94ft)
30.1M (99ft)
Horizontal reach max.
21.9M (72ft)
23.4M (77ft)
20.1M (66ft)
Turntable rotation
360°continuous
360°continuous
360°continuous
Platform rotation
160°
160°
160°
Platform Load capacity
250kg (non-restricted)
250kg (non-restricted)
250kg (non-restricted)
480kg (restricted)
Grade ability
35% (2wd)
35% (2wd)
35% (2WD)
40% (4wd)
40% (4wd)
40% (4WD)
Turning radius(outside)
5.84M (19ft)
5.84M (19ft)
5.8M (19ft)
Turning radius(inside)
2.44M (8ft)
2.44M (8ft)
2.13 M (7ft)
Turntable tailswing
1.32M (4.3ft)
1.32M (4.3ft)
1.18M (4ft)
Max. Driving Speed
5.2KM/H
5.2KM/H
5.2km/h
Driving Speed (stowed)
0~5.2km/h
0~5.2km/h
0~5.2km/h
Driving Speed (extended)
0~1.1km/h
0~1.1km/h
0~1.1km/h
Max allowable wind force
12.5m/s
12.5m/s
12.5m/s
Max allowable slope
3°
3°
3°
Max noiseon normal use
82dB(A)
82dB(A)
82dB(A)
Max allowable    side force
400N
400N
400N
Dimensions
GTBZ25
GTBZ27
GTBZ28
Overall length(stowed)
11.35M (37ft)
12.37M (40ft)
12.4M(41ft)
Overall width(stowed)
2.49M (8ft)
2.49M (8ft)
2.75M (9ft)
Overall height(stowed)
2.8M (9ft)
2.8M (9ft)
2.8M (9ft)
Ground clearance
0.33M (1.1ft)
0.33M (1.1ft)
0.33M (1ft)
Wheelbase
3.0M (10ft)
3.0M (10ft)
3M (9.8ft)
Overall weight
16000kg (2WD)
16200kg (2WD)
16300kg (2WD)
16070kg (4WD)
16270kg (4WD)
16370kg (4WD)
Platform Size (L*W*H)
2.44*0.91*1.1M (8ft*3ft*3.6ft)
1.83*0.76*1.1M(6ft *2.5ft *3.6ft)
1.83*0.76*1.1M  (6ft *2.5ft *3.6ft)
Platform levelling
Automatic
Automatic
Automatic
Tire specification
12.00-20
12.00-20
12.00-20
Tire type
Solid
Solid
Solid
Hydraulic tank vol.
170L
170L
170L
Hydraulic system vol.
(inc. the tank)
270L
270L
270L
Fuel tank vol.
125L
125L
125L
Control voltage
24V
24V
24V
Engine
Original CumminsB3.3 80hp
Original CumminsB3.3 80hp
Original CumminsB3.3 80hp
Drive & steer model
2WD*2WS
2WD*2WS
2WD*2WS
Standard applied: EN280, AS1418 and JG/T5100
