Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > 22M Self-propelled Telescopic Boom Lift GTBZ22

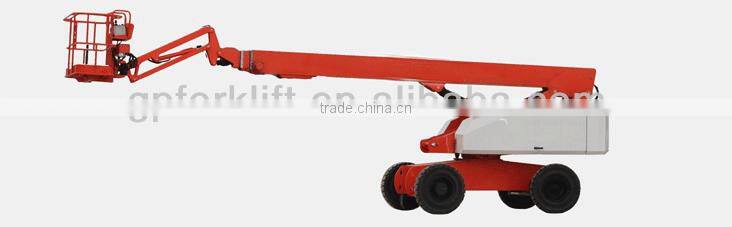

22M Self-propelled Telescopic Boom Lift GTBZ22

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Model Number:

GTBZ22

Lift Mechanism:

Telescoping Lift

Contact Supplier Request Quote Chat Now

Shanghai Gather Power Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name GP

Model Number GTBZ22

Lift Mechanism Telescoping Lift

Power Cummins Diesel engine

Rated Loading Capacity 250kgs

Max. Lifting Height 22.2m

Table Size 1.83X0.76X1.1m

Overall Dimensions 10.2X2.49X2.8m

Weight 18820kgs

Warranty 1 year

Specifications

Lift up to 22meters. Specially designed for aerial working with flexible lifting up and down and travelling forward and backward

GTBZ22 arm-type aerial work platform

1. For shipbuilding, large steel structure construction, construction, municipal, advertising and other industries;

2. Provide users with safe and reliable aerial work platforms, rugged, reliable design with excellent performance to meet the challenging the environmental conditions need;

3. 45% of the maximum gradeability to make the product does not stop at this slope down, and can start again on the slope;

4. United States imported engines provide a strong impetus for the product; Durable solid tires. Imported PLC using military-grade, according to customer requirements and development program set to meet individual needs.

Technical data:

Product Performance	GTBZ22
Maximum platform height	22.2m
Maximum working height	24.2m
Maximum horizontal extension	18.8m
Outer turning radius	4.97m
Turning radius	1.66m
Tail sweep	1.32m
Turntable rotation	360°
Rotating platform	160°
Gradeability	30%(2WD)
	45%(4WD)
Platform loading capacity	250Kg
Travel speed (retracted)	0~6.3km/h
Travel speed (extended state)	0~1.1km/h
Maximum allowable wind speed	12.5m/s
Maximum permissible tilt angle	3°
Normal operation noise	≤82dB(A)
Maximum permissible lateral force	400N
Size
Overall length (retracted)	10.2m
Overall width (retracted)	2.49m
Overall height (retracted)	2.8m
Minimum ground clearance	0.45m
Wheelbase	2.49m
Platform size (L * W * H)	1.830.761.1m
Vehicle weight	11165Kg(2WD)
	11235Kg(4WD)
Tire Size / Type	9.00—20/7.0
Hydraulic oil tank	170L
Hydraulic system capacity	270L
Fuel tank capacity	125L
Engine	Cummins
Drive Mode	2WD2WS/4WD2WS
