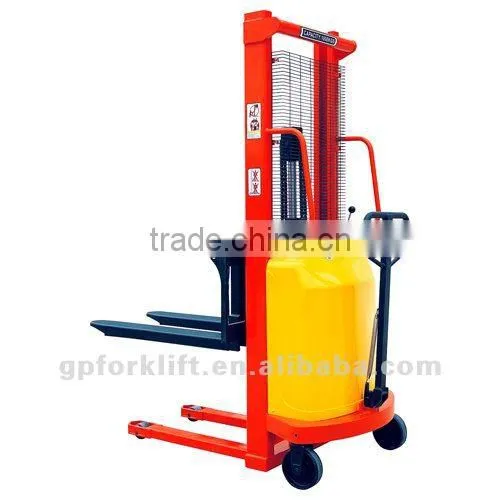

Winch Driven Stacker Truck

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

Shanghai Gather Power Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name GP

Model Number TA15T

Type Powered Pallet Truck

Power Souce AC Motor

Rated Loading Capacity 1500kg

Max. Lifting Height 3060mm

Min. Lifting Height 0mm

Fork Length 1000mm

Fork Width 680mm

Overall Dimensions 1660*810*1830mm

Specifications

1)Stability Analysis of Structures, compacted design
2)Strong frame, operating lightly and easil

1.Stability Analysis of Structures, compacted design 2.Strong frame,operating lightly and easily 3.Low noise

Model	TA10T-16	TA10T-24	TA10T-30	TA10T-35	TA15T-24	TA20T-16
Capacity (Kg)	1000	1000	1000	800	1500	2000
Load center (mm)	450	450	450	450	450	450
Fork size (mm)	1000X160		1000X160		1000X160
Overall length (mm)	1650	1650	1650	1650	1650	1650
Overall width (mm)	825	825	825	825	825	825
Load wheel to fork top (mm)	320	320	320	320	320	320
Fork adjust width (mm)	690	690	690	690	690	690
Lowered fork height (mm)	85	85	85	85	85	85
Overall height fork lowered (mm)	2000	1745	2075	2325	1775	2000
Lift height (mm)	1600	2400	3000	3500	2400	1600
Mast extended height (mm)	2040	2840	3440	3940	2840	2040
Turning radius (mm)	1400	1400	1400	1400	1400	1400
Battery capacity (V/Ah)	12/120	12/120	12/120	12/120	12/120	12/120
Charger (V)	~220	~220	~220	~220	~220	~220
