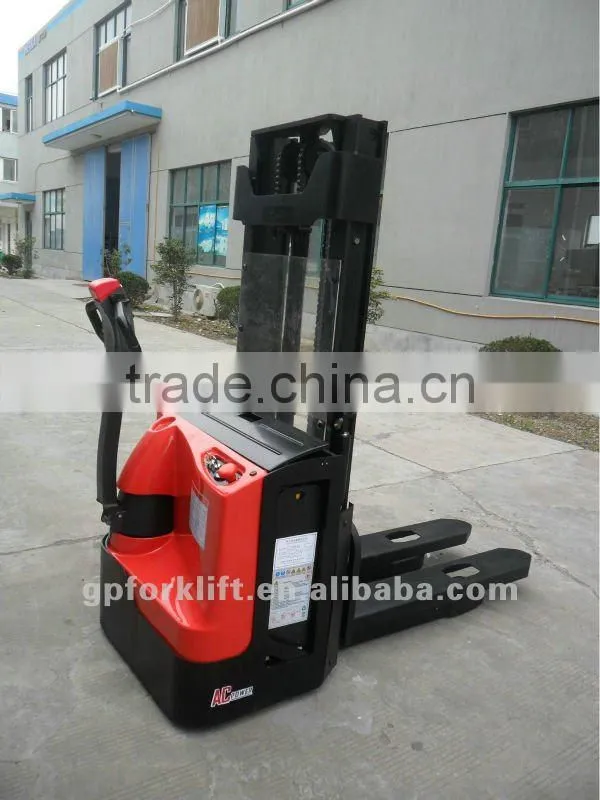

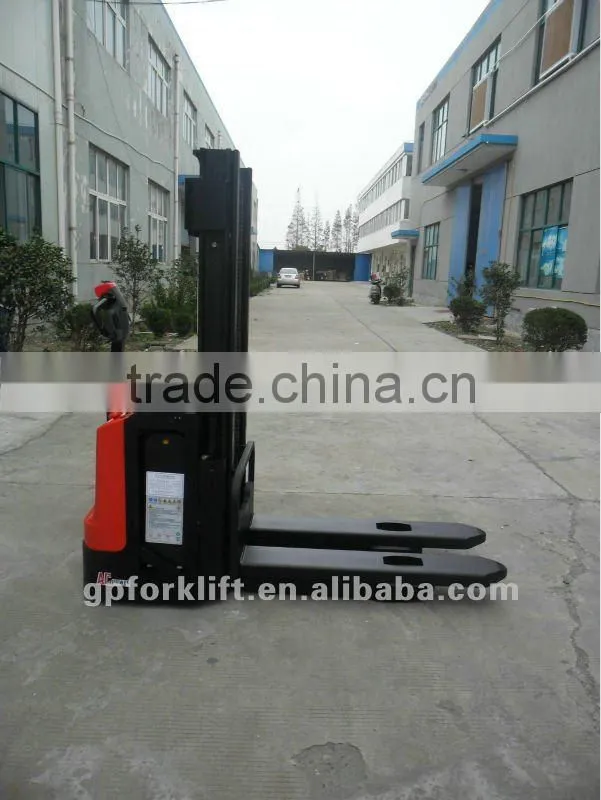

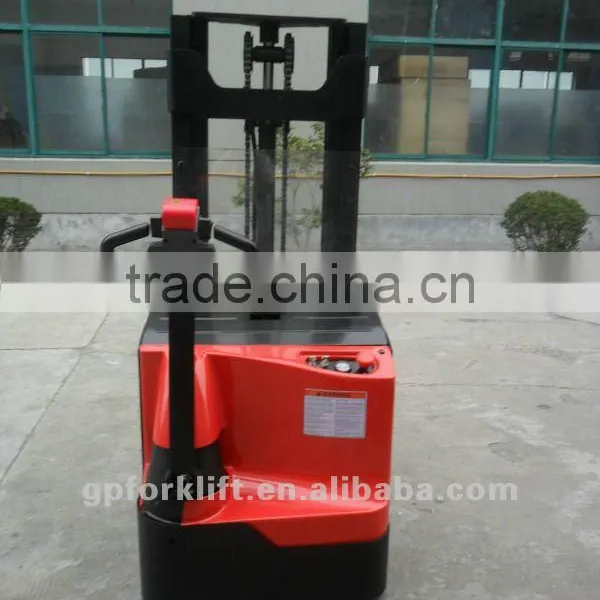

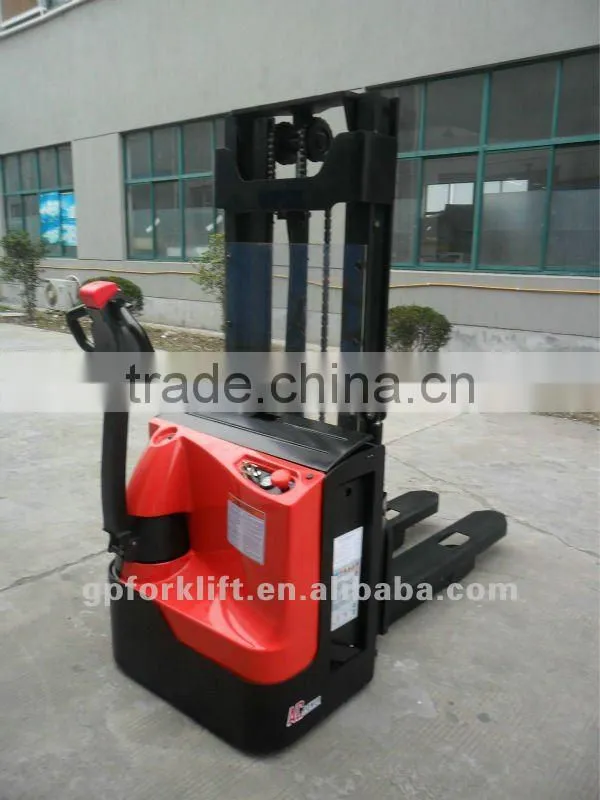

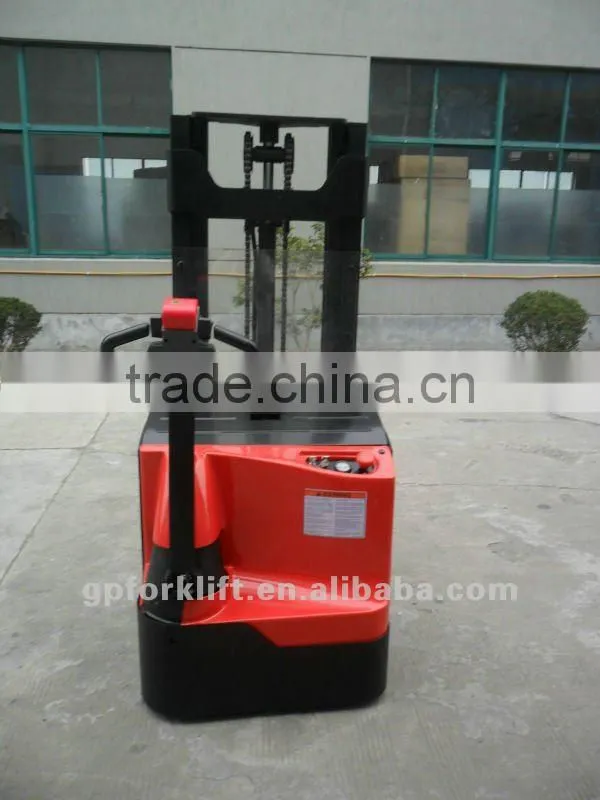

1600mm lift height full battery stacker
- 800 Unit / Units per Month
- Shanghai
- T/T
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | GP |
Model Number: | TB-A | Type: | Powered Pallet Truck | Power Souce: | DC Motor |
Rated Loading Capacity: | 1200kg | Max. Lifting Height: | 4500mm | Min. Lifting Height: | 1600mm |
Product Description
Specifications
Hourmeter and BDI(Battery Discharge Indicator)on time informs the operator of recharge requirements.FEATURES
1.Durable and rigid frame construction ensure the stackers to handle heavy loads.
2.Hourmeter and BDI(Battery Discharge Indicator)on time informs the operator of recharge requirements.
3.Sideway battery exchange to reduce intervals,ensure working efficiency and productivity.
4.Tilter head ergonomically designed for maximum opertor comfortable,and control buttons positioned to allow operation with either hand.
5.limit switch mounted on top of mast to precisely set the max.Lifting height,avoid any risk of lifting motor overload.
6.Robust and rigid mast configuration optimize stackers lifting stability and safety.
(AC)Electric Initial Stacker | |||
Manufacturer | GP | GP | |
Model designation | TB10A-16 | TB12A-16 | |
Drive unit | Battery | Battery | |
Operator type | Pedestrian | Pedestrian | |
Load capacity | Q (kg) | 1000 | 1200 |
Service weight (Incl. battery) | kg | 990 | 1050 |
Tyre type | PU/ PU | PU/ PU | |
Height, mast lowered | h1 (mm) | 1302 | 1302 |
Free lift | h2 (mm) | 100 | 100 |
Lift height | h3 (mm) | 1600 | 1600 |
Initial lift | h5 (mm) | 125 | 125 |
Overall length | l1 (mm) | 1847 | 1847 |
Overall width | b1/ b2 (mm) | 800 | 800 |
Fork dimensions | s/ e/ l (mm) | 60/ 190/ 1150 | 60/ 190/ 1150 |
Aisle width, 1000×1200 pallet crossways | Ast (mm) | 2400 | 2400 |
Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2263 | 2263 |
Outer turning radius | Wa (mm) | 1423 | 1423 |
Travel speed, laden/ unladen | km/ h | 5/ 5.5 | 5/ 5.5 |
Lifting speed, laden/ unladen | m/ s | 0.1 | 0.1 |
Lowering speed, laden/ unladen | m/ s | —— | —— |
Maximum gradeability, laden/ unladen S2 5 min. | % | 8/16 | 8/16 |
Drive motor rating S2 60 min. | kW | 1.1 | 1.1 |
Lift motor rating at S3 15% | kW | 2.2 | 2.2 |
Battery voltage/ rated capacity (5h) | V/ Ah | 24/ 160 | 24/ 160 |
Battery weight (with box) | kg | 120 | 120 |
Type of drive control | AC | AC | |
Manufacturer | ZAPI | ZAPI |
