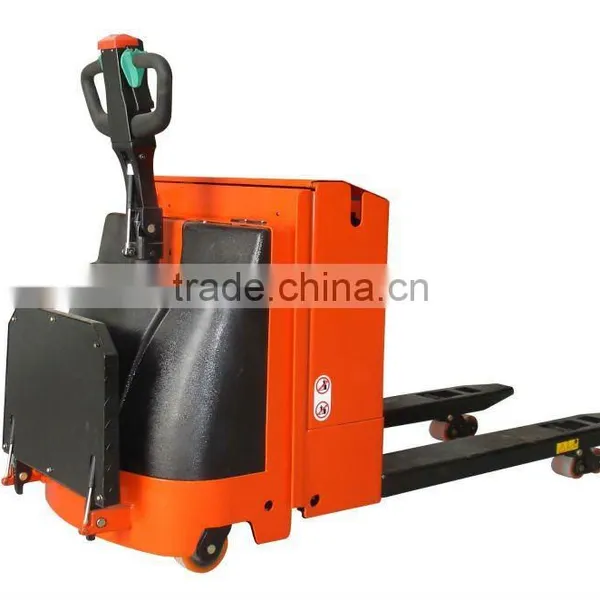

Electric Pallet Truck

Shanghai Gather Power Industry Co., Ltd.
Electric Pallet Truck thumbnail-1
Electric Pallet Truck photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
GP
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name GP
Model Number ERE15-25
Type Powered Pallet Truck
Power Souce AC Motor
Rated Loading Capacity 1500kg-2500kg

Specifications

1Imported hydraulic pump station makes the lifting of goods steady and powerful

1. Imported hydraulic pump station makes the lifting of goods steady and powerful
2. Compact structure, solid carriage and large capacity
3. Large capacity battery keeps the truck long time working
4. Top quality control system from Curtis, makes the truck reacts quickly and operates easily

 5. Optional imported handle, guard, pedal and AC motor
6.Smooth stepless speed control from CURTIS
7.power unit and drive wheel made in Europe, powerful traction battery





FULL ELECTRIC PALLET TRUCKMODEL
ItemSpecificationUnitERE15ERE20ERE22ERE25
1GeneralRated capacityKg1500200022002500
2Load center mm600600600600
3Drive type Standed
4Motor brake  Electromagnetic
5Load distance (centerline of front axle to front face of forks)mm963/1054963/1033963/1033957
6Battery weightKg48185185280
7Self weight (with battery)Kg286520515970
8Full Load per Axle - Driving side / bearing sideKg675/11151040/14801085/1630162/1850
9Empty Load per Axle - Driving side / bearing sideKg230/60405/115400/115780/200
10DimensionsLifting Height (standard)mm120120120130
11Fork min. ground clearancemm85858585
12Adjust width of fork (standard)mm520/650540/685540/685560
13Fork sizemm47/160/122060/160/115060/160/115060/160/1150
14Minimum ground clearancemm24252525
15Overall lengthmm16601815/18851815/18852025
16Overall widthmm700726726796
17Overall height (including handle )mm1235132313231290
18Bodywork heightmm6777457451196
19Wheel tread (front/rear)mm490/490540/380540/380441/380
20Supporting wheel treadmm1310136813681515
21Minimum turning radiusmm197616401640/17101865
22Stacking right angle aisle width (1200mm pallet)mm1976210521052255
23PerformanceMax. driving speed (full)Km/h555.88.7
24Max. driving speed (empty)Km/h5.25.269
25Max. lifting speed (full)mm/s27271933.7
26Max. lifting speed (empty)mm/s35353845
27Max. declining speed (full)mm/s42423035.7
28Max. declining speed (empty)mm/s27272718.7
29Gradeability full/empty%5/810/169/156.9/14
30Steering angle°205180180180
31Sound level at the driver's eardB(A)less 70less 70less 70less 70
32WheelWheels material Polyurethane
33Wheel number (front/rear) 4/3
34Drive wheel (mm)mmφ252X89φ230X75φ230X75φ254X82
35Load wheel (mm)mmφ74X70φ74X70φ84X70φ84X70
36Balance wheel (mm)mmφ100X40φ100X40φ100X40φ149X55
37Power and ControlTravel motorKW0.81.51.52.2
38Lift motorKW0.60.80.82.2
39VoltageV2X12242424
40Battery capacityAh80210210360
41Power Electric
