Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
GP
Model Number:
ERE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port or any China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Brand Name
GP
Model Number
ERE
Type
Powered Pallet Truck
Power Souce
DC Motor
Rated Loading Capacity
1500kg-2200kg
Max. Lifting Height
120mm
Min. Lifting Height
85mm
Fork Length
1220mm
Fork Width
160mm
Overall Dimensions
L.W.H=1660X700X1235MM
Certification
CE;SGS;ISO

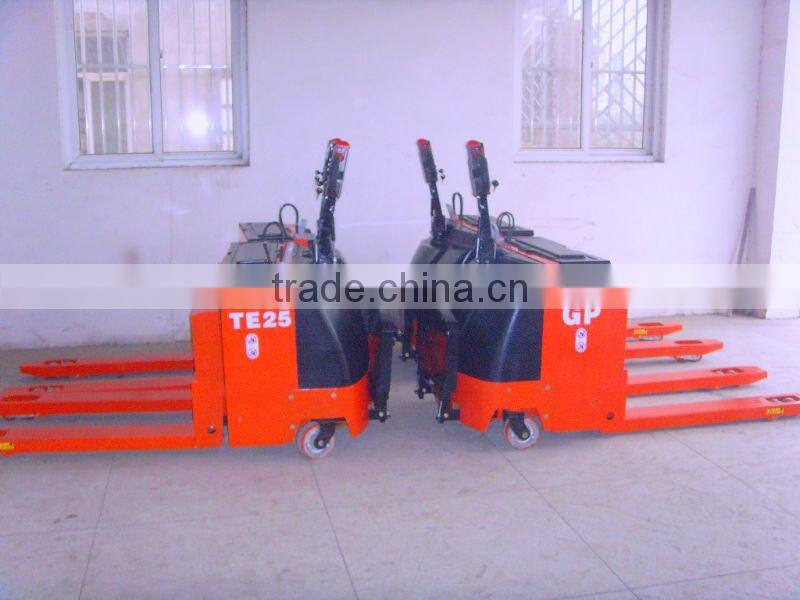

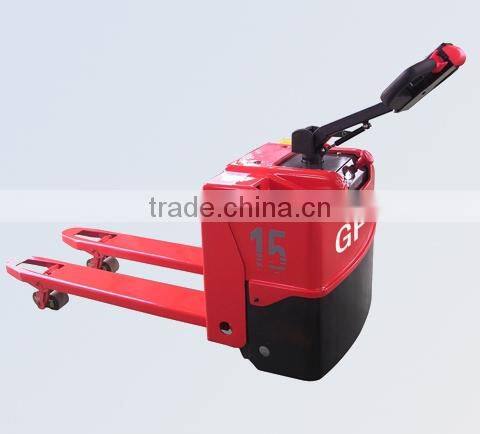

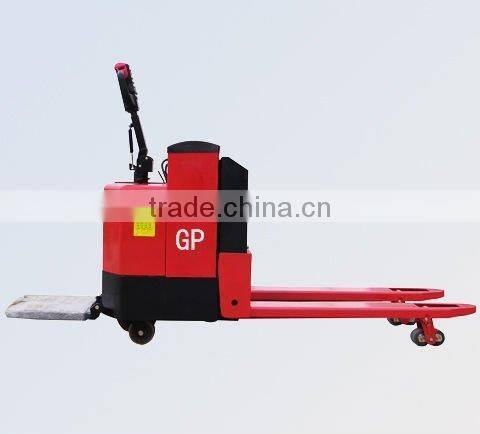

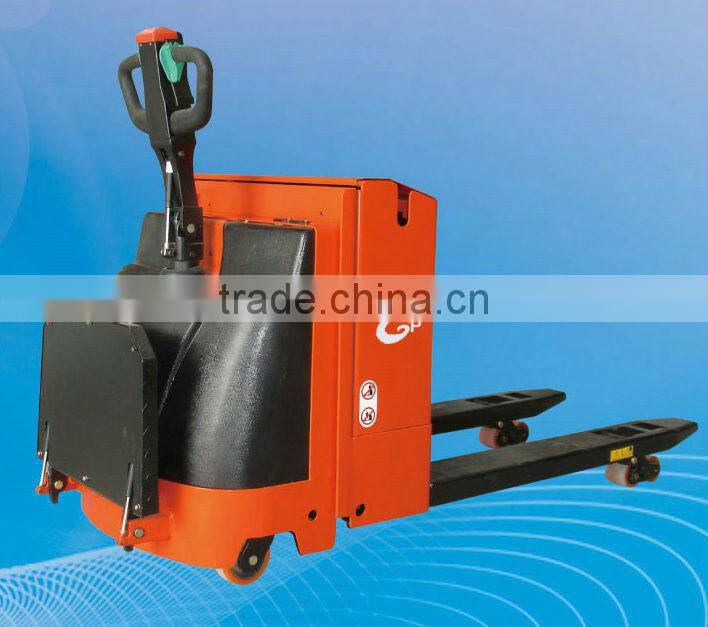

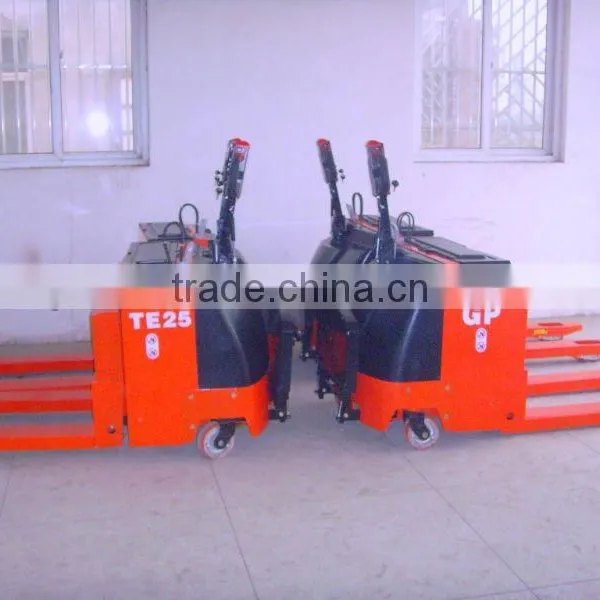

1).Products name: Full Electric Pallet Truck
2). Advantage (Features) :
1. Imported hydraulic pump station makes the lifting of goods steady and powerful
2. Compact structure, solid carriage and large capacity
3. Large capacity battery keeps the truck long time working
4. Top quality control system from Curtis, makes the truck reacts quickly and operates easily
5. Optional imported handle, guard, pedal and AC motor
6.Smooth stepless speed control from CURTIS
7.power unit and drive wheel made in Europe, powerful traction battery
3) Detailed specification
| Specification | Unit | ERE15 | ERE20 | ERE22 | ERE25 | |
| General | Rated capacity | Kg | 1500 | 2000 | 2200 | 2500 |
| Load center | mm | 600 | 600 | 600 | 600 | |
| Drive type | Standed | |||||
| Motor brake | Electromagnetic | |||||
| Load distance (centerline of front axle to front face of forks) | mm | 963/1054 | 963/1033 | 963/1033 | 957 | |
| Battery weight | Kg | 48 | 185 | 185 | 280 | |
| Self weight (with battery) | Kg | 286 | 520 | 515 | 970 | |
| Full Load per Axle - Driving side / bearing side | Kg | 675/1115 | 1040/1480 | 1085/1630 | 162/1850 | |
| Empty Load per Axle - Driving side / bearing side | Kg | 230/60 | 405/115 | 400/115 | 780/200 | |
| Dimensions | Lifting Height (standard) | mm | 120 | 120 | 120 | 130 |
| Fork min. ground clearance | mm | 85 | 85 | 85 | 85 | |
| Adjust width of fork (standard) | mm | 520/650 | 540/685 | 540/685 | 560 | |
| Fork size | mm | 47/160/1220 | 60/160/1150 | 60/160/1150 | 60/160/1150 | |
| Minimum ground clearance | mm | 24 | 25 | 25 | 25 | |
| Overall length | mm | 1660 | 1815/1885 | 1815/1885 | 2025 | |
| Overall width | mm | 700 | 726 | 726 | 796 | |
| Overall height (including handle ) | mm | 1235 | 1323 | 1323 | 1290 | |
| Bodywork height | mm | 677 | 745 | 745 | 1196 | |
| Wheel tread (front/rear) | mm | 490/490 | 540/380 | 540/380 | 441/380 | |
| Supporting wheel tread | mm | 1310 | 1368 | 1368 | 1515 | |
| Minimum turning radius | mm | 1976 | 1640 | 1640/1710 | 1865 | |
| Stacking right angle aisle width (1200mm pallet) | mm | 1976 | 2105 | 2105 | 2255 | |
| Performance | Max. driving speed (full) | Km/h | 5 | 5 | 5.8 | 8.7 |
| Max. driving speed (empty) | Km/h | 5.2 | 5.2 | 6 | 9 | |
| Max. lifting speed (full) | mm/s | 27 | 27 | 19 | 33.7 | |
| Max. lifting speed (empty) | mm/s | 35 | 35 | 38 | 45 | |
| Max. declining speed (full) | mm/s | 42 | 42 | 30 | 35.7 | |
| Max. declining speed (empty) | mm/s | 27 | 27 | 27 | 18.7 | |
| Gradeability full/empty | % | 5/8 | 10/16 | 9/15 | 6.9/14 | |
| Steering angle | ° | 205 | 180 | 180 | 180 | |
| Sound level at the driver's ear | dB(A) | less 70 | less 70 | less 70 | less 70 | |
| Wheel | Wheels material | Polyurethane | ||||
| Wheel number (front/rear) | 4/3 | |||||
| Drive wheel (mm) | mm | φ252X89 | φ230X75 | φ230X75 | φ254X82 | |
| Load wheel (mm) | mm | φ74X70 | φ74X70 | φ84X70 | φ84X70 | |
| Balance wheel (mm) | mm | φ100X40 | φ100X40 | φ100X40 | φ149X55 | |
| Power and Control | Travel motor | KW | 0.8 | 1.5 | 1.5 | 2.2 |
| Lift motor | KW | 0.6 | 0.8 | 0.8 | 2.2 | |
| Voltage | V | 2X12 | 24 | 24 | 24 | |
| Battery capacity | Ah | 80 | 210 | 210 | 360 | |
| Power | Electric | |||||
