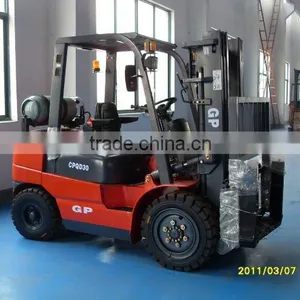

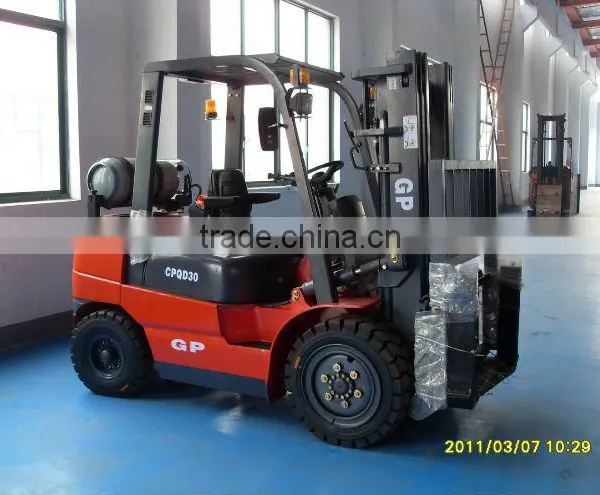

Petrol forklift truck

Name: Petrol forklift truck
Brand: GP
Price: USD $10,000 - 40,000 / Unit

FOB Price

USD $10,000 - $40,000 / Unit

1 Unit(Min.Order)

Supply Ability 3000 Unit / Units per Month
Port Shanghai China
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Shanghai, China	Brand Name:	GP
Model Number:	CPQD20-30	Type:	Powered Pallet Truck	Power Souce:	Gasoline Engine
Rated Loading Capacity:	3000kg	Max. Lifting Height:	6500mm	Min. Lifting Height:	2500mm
Fork Length:	1070mm	Fork Width:	122mm	Certification:	CE,SGS,UL , ISO9001
After-sales Service Provided:	Overseas third-party support available

Product Description

Specifications

Type: LPG forklift truck
Lift height: 3000mm-6500MM
Tire type: pneumatic or solid tyre
Attachments are available

General		Manufacturer				GP
	1	Model				CPQD20	CPQD25	CPQD30	CPQD35
						CPQ20	CPQ25	CPQ30	CPQ35
	2	Rated capacity			kg	2000	2500	3000	3500
	3	Load center			mm	500
	4	Gearbox change speed type				Hydraulic/Mechanical
	5	Power type				Gasoline / LPG
	6	Tire type		Front/Rear		Pneumatic
	7	Wheels		Front/Rear		2*2/2
Dimensions	8	Lift height			mm	3000
	9	Free lift height			mm	140		145	150
	10	Fork size		LWT	mm	92012240	107012240	107012545	107013045
	11	Mast tilt angle		Fwd/Bwd	deg	6/12
	12	Overall length (without fork)			mm	2513	2583	2698	2725
	13	Overall width			mm	1150		1225	1225
	14	Mast height fork lowered			mm	1995		2070	2160
	15	Overall height fork raised			mm	4030		4250	3290
	16	Overall height (overhead guard)			mm	2070		2090
	17	Turning radius (outside)			mm	2170	2240	2400	2450
	18	Load distance (centerline of front axle to front face of forks			mm	483		498
	19	Minimum Aisle -90 stack(Add load length and clearance)			mm	2640	2710	2885
	20	Wheel base			mm	1600		1700
	21	Tread		Front	mm	970		1000
	22			Rear	mm	970
	23	Min. Under-clearance		Bottom of mast	mm	110		135	145
	24			Bottom of frame	mm	115		140	140
Performance	25	Speed	Travel Max.	With load	km/h	17		18
	26			Without load	km/h	19.5		19.5
	27		Lifting	With load	km/h	570		450	380
	28			Without load	km/h	600		500	450
	29		Lowering	With load	km/h	450			420
	30			Without load	km/h	550		500	460
	31	Max. Drawbar pull		With/without load	kg	1250/850	1250/850	1100/1000	1304/1190
	32					1650/850	1650/850	1350/1000	1696/1190
	33	Max.Gradeability		With/without load	% (fan)	20/20	17/18	15/18	15/18
						21/22	18/19	19/20	15/18
Weight	34	Service weight			kg	3410	3770	4370	4750
	35	Weight distribution	With load	Front	kg	4730	5480	6455	7320
	36			Rear	kg	590	700	825	930
	37		Without load	Front	kg	1520	1465	1720	2040
	38			Rear	kg	1800	2215	2560	2710
Tyre	39	Tyre	Size	Front		7.00-12-12PR		28*9-15-12PR
	40			Rear		6.00-9-10PR		6.50-10-10PR
Brake	41	Brake	Service			Hydraulic-Foot pedal
	42		Parking			Mechanical-Hand lever
Transmission	43	Battery	Voltage / Capacity		V/AH	12/100
	44	Internal combustion engine	Model			MITSUBISHI / NISSAN / HW491/ GQ-4Y
	45		Rated horsepower		Kw/rpm	42.5/2500			45.6/2700
	46		Rated torque		N.m/rpm	161/1600			185/1600
	47		Number of cylinder			4
	48		Displacement		cc	2.35			2.488
	49		Fuel tank capacity		lit	70			70
	50	Transmission	Type			Hydraulic/Mechanical
	51		Number of speed (Fwd/Rvs)			1/1 (2/2)
	52	Work pressure			Mpa	17.5
