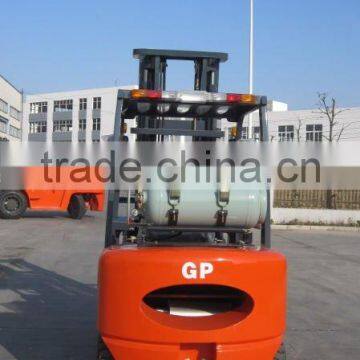

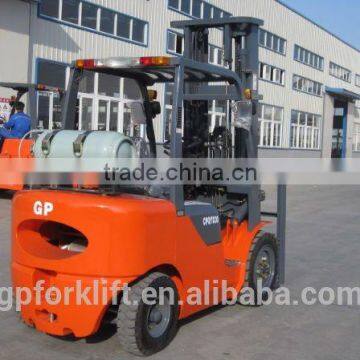

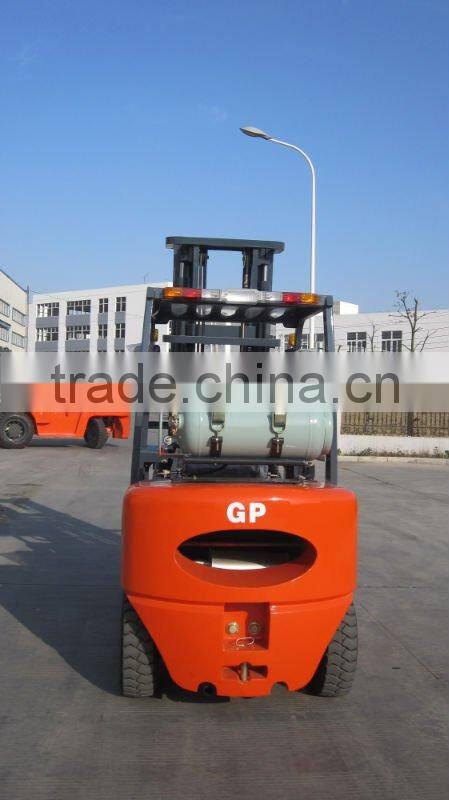

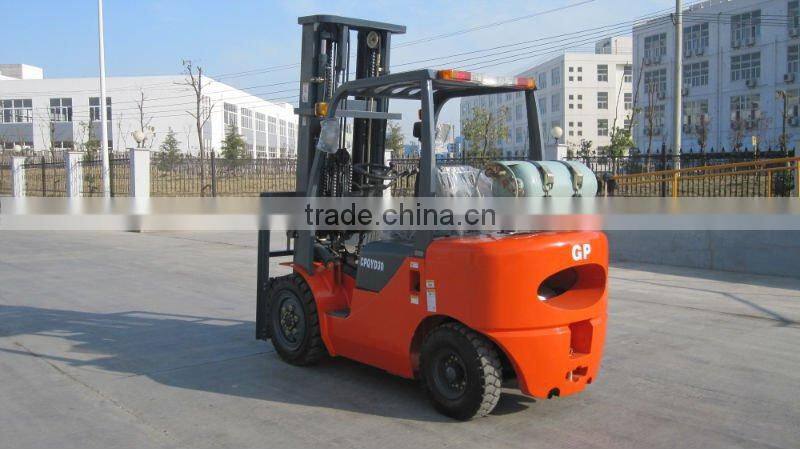

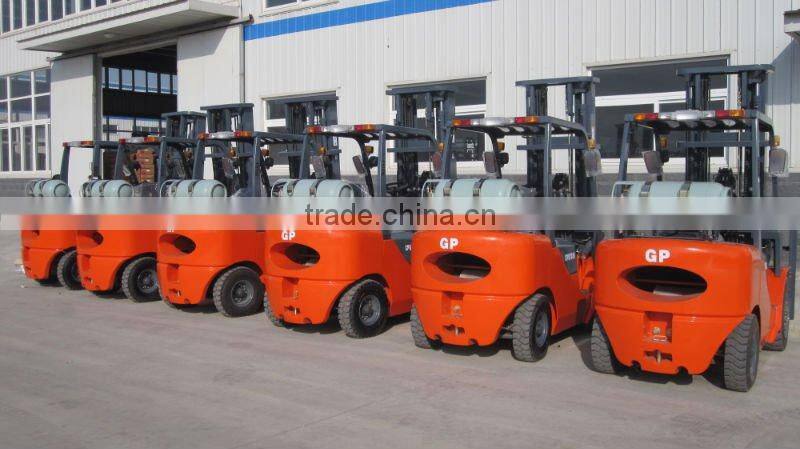

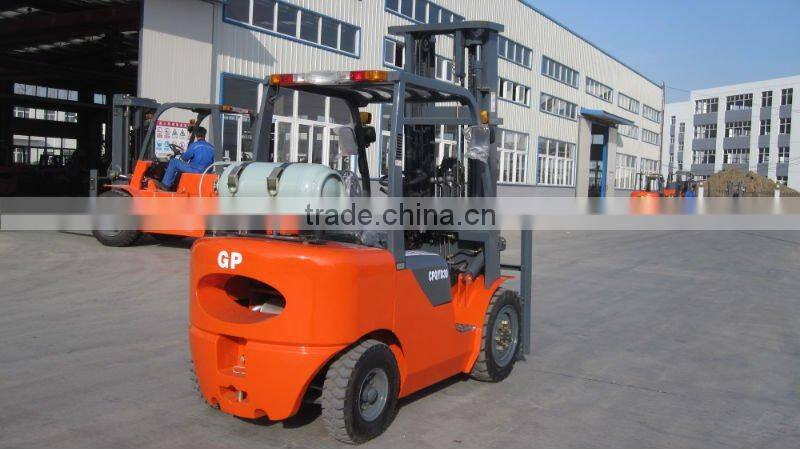

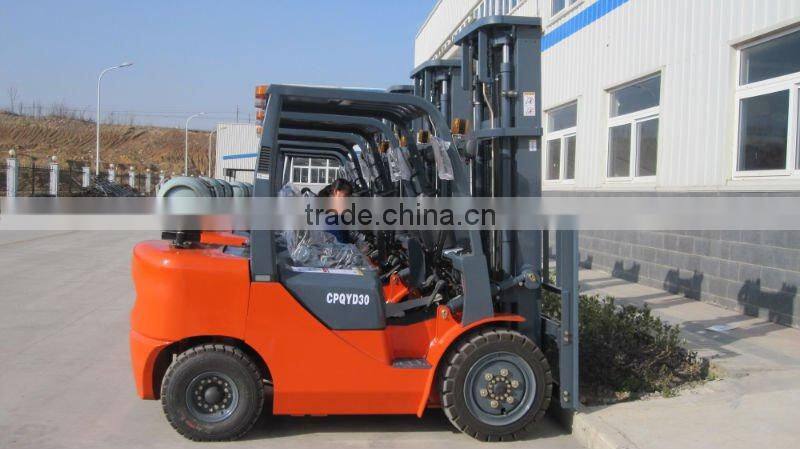

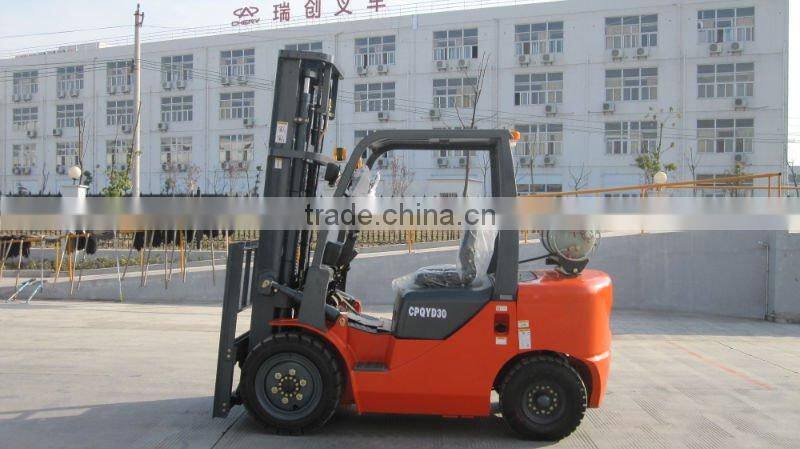

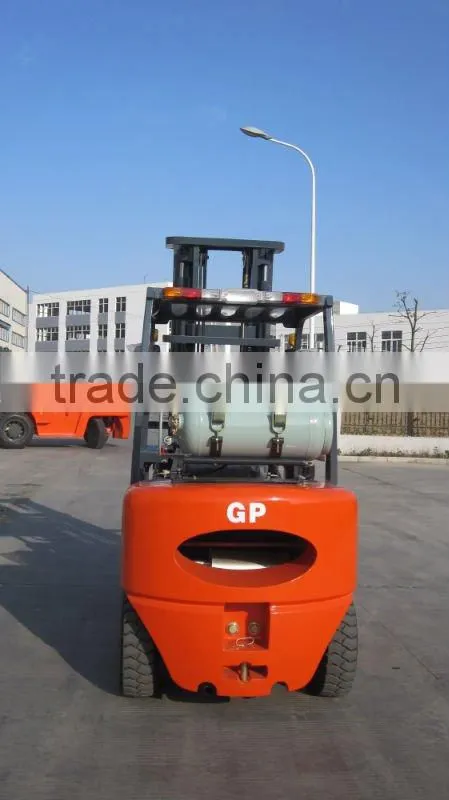

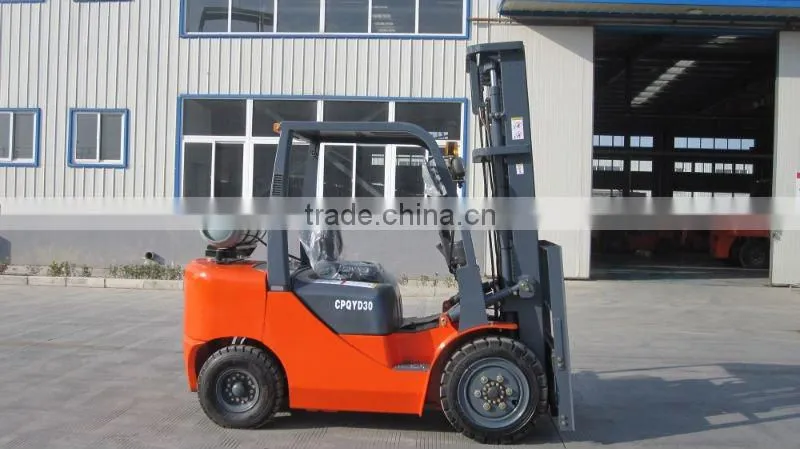

3 ton LPG forklift

model

CPQYD30

load capacity

kg

3000

load center

mm

500

wright with load

kg

6420/930

weight without load

kg

1790/2560

drive speed

km/h

20/19.5

turning radius

mm

2420

Min.barcket routeway

mm

2120

towing force

kn

1246

gradeability

%

15

lifting speed

mm/s

470/520

lowering speed

mm/s

600

complete size

mm

2695*1230

over guard height

mm

2085

mast height

mm

2055

lifting height

mm

4256

fork size

mm

1070*125*45

wheel distance

mm

1000/970

work pressure

mpa

17.5

engine model

JAPAN MITSUBISHI4G64/NISSAN/GQ-4Y

rate power/speed

kw/r.p.m.

37/2500/42/2400

engine rate torque

kw/r.p.m.

161/1600/161/1800

engine displacement

L

2.35/2.24

gearbox change speed type

hydraulic

front tire type

28*9-15-12PR

behind tire type

6.50-10-10PR

gear type

CBFZ-F32ALHX

full tank capacity

L

52

wheel air pressure

mpa

0.7

total weight

kg

4380
