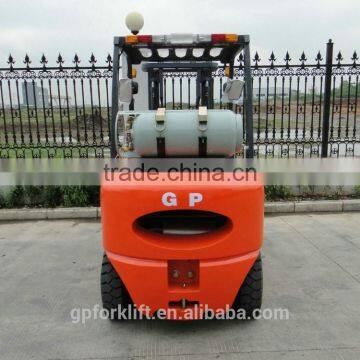

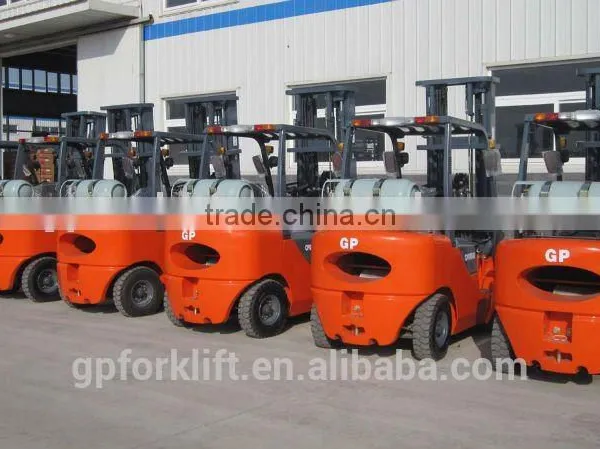

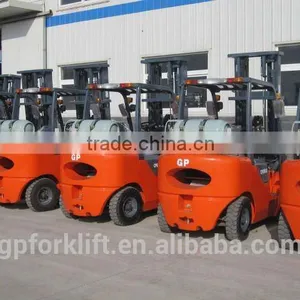

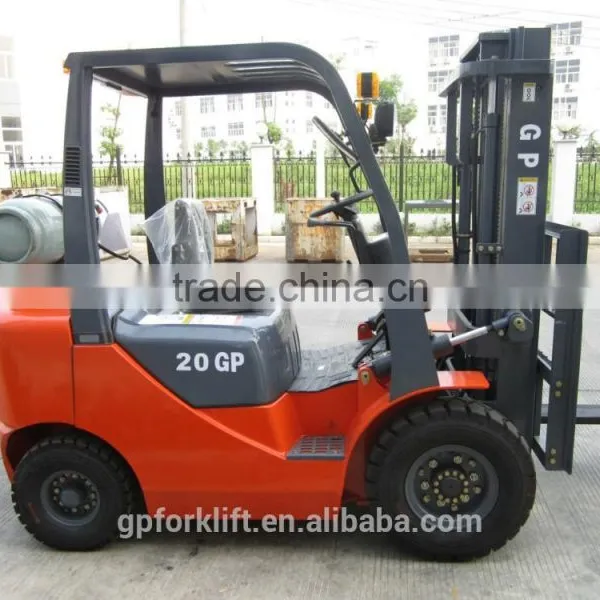

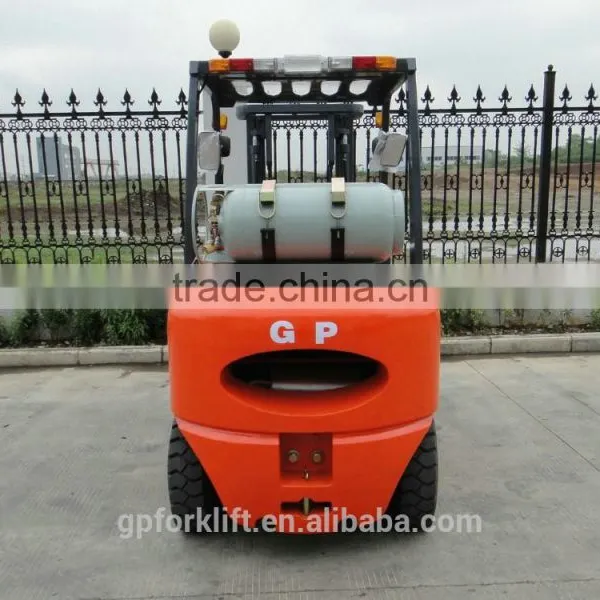

2.0 tons gas forklift shanghai

Name: 2.0 tons gas forklift shanghai
Brand: GP
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 5000 Unit / Units per Month
Port shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Shanghai, China	Brand Name:	GP
Model Number:	CPQD10	Type:	Powered Pallet Truck	Power Souce:	Gasoline Engine
Rated Loading Capacity:	1000KG	Max. Lifting Height:	7500mm	Min. Lifting Height:	2500mm
Fork Length:	920mm	Fork Width:	122mm	Overall Dimensions:	3100mm

Product Description

General		Manufacturer				GP
	1	Model				CPQD10	CPQD15	CPQD18
						CPQ10	CPQ15	CPQ18
	2	Rated capacity			kg	1000	1500	1800
	3	Load center			mm	500
	4	Gearbox change speed type				Hydraulic/Mechanical
	5	Power type				Gasoline / LPG
	6	Tire type		Front/Rear		Pneumatic
	7	Wheels		Front/Rear		2*2/2
Dimensions	8	Lift height			mm	3000
	9	Free lift height			mm	162
	10	Fork size		LWT	mm	92012240
	11	Mast tilt angle		Fwd/Bwd	deg	6/12
	12	Overall length (without fork)			mm	2180	2235	2270
	13	Overall width			mm	1080
	14	Mast height fork lowered			mm	1995
	15	Overall height fork raised			mm	4042
	16	Overall height (overhead guard)			mm	2075
	17	Turning radius (outside)			mm	1890	1960	2000
	18	Load distance (centerline of front axle to front face of forks)			mm	429
	19	Minimum Aisle -90 stack(Add load length and clearance)			mm	1740	1780	1820
	20	Wheel base			mm	1400
	21	Tread		Front	mm	890
	22			Rear	mm	920
	23	Min. Under-clearance		Bottom of mast	mm	95	85
	24			Bottom of frame	mm	105
Performance	25	Speed	Travel Max.	With load	km/h	13.5
	26			Without load	km/h	14.5
	27		Lifting	With load	km/h	450
	28			Without load	km/h	510
	29		Lowering	With load	km/h	450
	30			Without load	km/h	550
	31	Max. Drawbar pull		With/without load	kg	1250/850	1250/850	1100/1000
	32					1650/850	1650/850	1350/1000
	33	Max.Gradeability		With/without load	% (fan)	20
						21
Weight	34	Service weight			kg	2340	2740	2943
	35	Weight distribution	With load	Front	kg	3410	3790	4170
	36			Rear	kg	370	450	570
	37		Without load	Front	kg	1016	1096	1175
	38			Rear	kg	1564	1644	1765
Tyre	39	Tyre	Size	Front		6.50-10-10PR
	40			Rear		5.00-8-8PR	5.00-8-10PR
Brake	41	Brake	Service			Hydraulic-Foot pedal
	42		Parking			Mechanical-Hand lever
Transmission	43	Battery	Voltage / Capacity		V/AH	12/80
	44	Internal combustion engine	Model			MITSUBISHI / NISSAN / GQ-4Y
	45		Rated horsepower		Kw/rpm	31.2/2250
	46		Rated torque		N.m/rpm	143/1600
	47		Number of cylinder			4
	48		Displacement		cc	2.065
	49		Fuel tank capacity		lit	38
	50	Transmission	Type			Hydraulic/Mechanical
	51		Shift (Fwd/Rvs)			1/1 (2/2)
	52	Work pressure			Mpa	17.5
