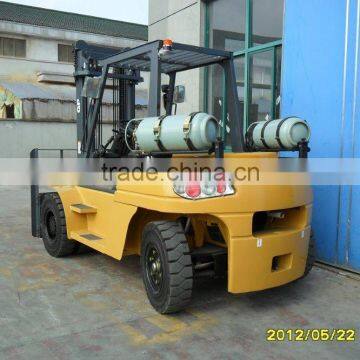

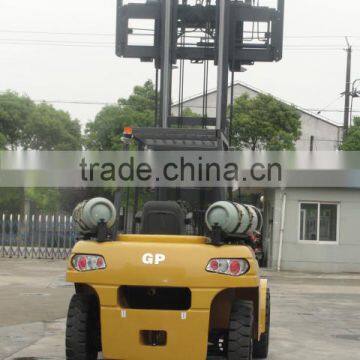

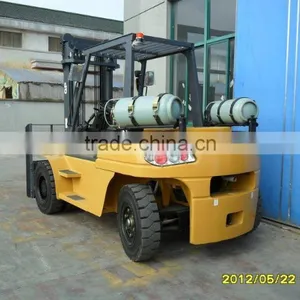

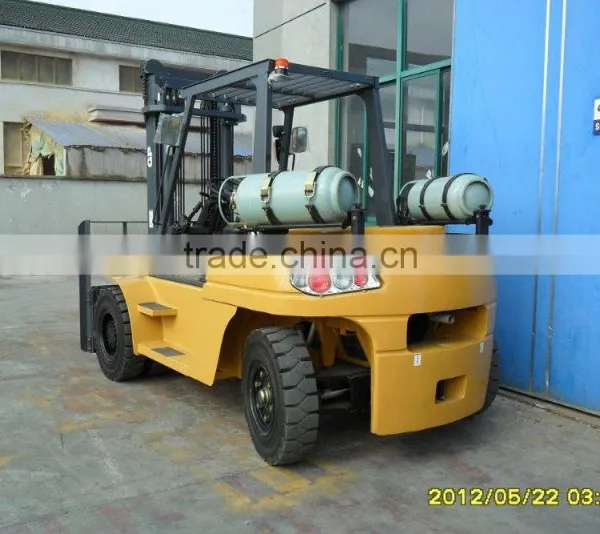

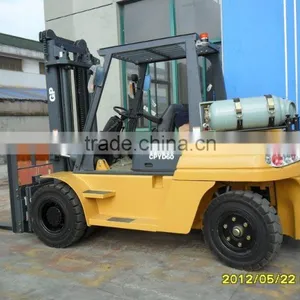

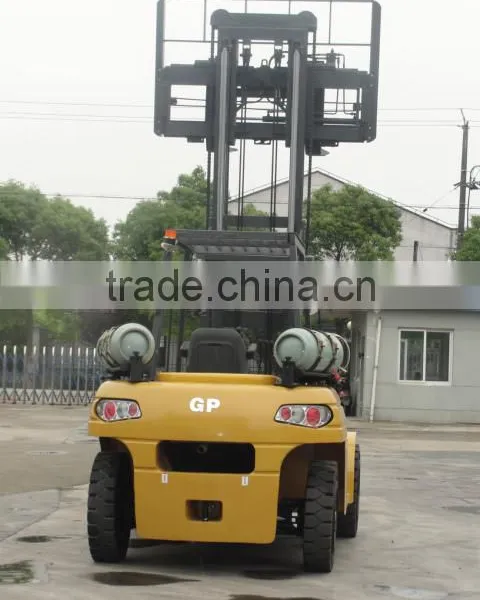

6 Ton LPG Forklift

6 Ton LPG Forklift thumbnail-1
6 Ton LPG Forklift thumbnail-2
6 Ton LPG Forklift thumbnail-3
6 Ton LPG Forklift photo-1
6 Ton LPG Forklift photo-2
6 Ton LPG Forklift photo-3
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
GP
Contact Supplier Request Quote Chat Now
Shanghai Gather Power Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name GP
Model Number CPYD60
Type Other
Power Souce LP Gas Engine
Rated Loading Capacity 6000KG
Max. Lifting Height 6000mm
Min. Lifting Height 3000mm
Fork Length 1220mm
Fork Width 150mm
Overall Dimensions 3540mm*1910mm*2732mm
Certification ISO&CE
After-sales Service Provided Overseas service center available

Gasoline Forklift Truck

1 Model    CPYD50  CPYD60  CPYD70
2 Power type    LPG  LPG  LPG
3 Rated capacity  kg  5000 6000 7000
4 Load center  mm  600 600 600
5 Lift height  mm  3000 3000 3000
6 Fork size  LxWxT  mm  1220x150x50  1220x150x60  1070x125x50
7 Mast tilt angle  F/R  º  6/12 6/12 6/12
8 Turning radius  mm  3300 3300 3300
9 Ground clearance  mm  170 170 170
10 Overhead guard height  mm  2450 2450 2450
11 Fork overhang  mm  595 595 595
12 Max driving speeds (with load)  km/h  24 24 24
13 Max lifting speeds (with load)  mm/s  300 300 300
14 Max grade ability (with load)  %  20 20 20
15 Overall length (without forks)  mm  3540 3540 3540
16 Overall width  mm  1910 1910 1910
17 Overall height fork raised (with backrest)  mm  4380 4380 4380
18 Mast height  mm  2732 2732 2732
19 Front tyres    8.25-15-14PR  8.25-15-14PR  8.25-15-14PR
20 Rear tyres    8.25-15-14PR  8.25-15-14PR  8.25-15-14PR
21 Wheelbase  mm  2300 2300 2300
22 Tread  Front/ Rear  mm  1400/1534  1400/1534  1400/1534
23 Self Weight  kg  7900 8160 8400
24 Battery  Voltage/Capacity  V/Ah  24/75*2  24/75*2  24/75*2
25 Engine  Model    GM4.3  GM4.3  GM4.3
26 Rated output  kw/r.p.m  70/2200  70/2200  70/2200
27 Rated torque  N.m/r.p.m  220/1800  220/1800  220/1800
28 NO.of cylinders    6 6 6
29 Displancement  L  4.294 4.294 4.294
30 Fuel tank capacity  L  140 140 140
31 Transmission  number of speed  F/R    2/2 AT  2/2 AT  2/2 AT
