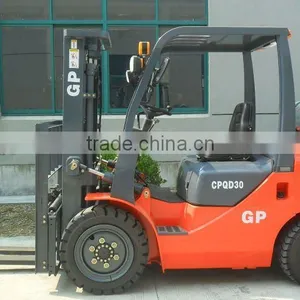

3 Ton LPG Forklift Truck With NISSAN Engine

Shanghai Gather Power Industry Co., Ltd.
3 Ton LPG Forklift Truck With NISSAN Engine thumbnail-1
3 Ton LPG Forklift Truck With NISSAN Engine photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
GP
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name GP
Model Number CPQ(Y)D30
Type Other, LPG forklift
Power Souce LP Gas Engine
Rated Loading Capacity 3000KG
Max. Lifting Height 6000
Min. Lifting Height 3000
Fork Length 1070
Fork Width 125
Certification ISO&CE
After-sales Service Provided Overseas service center available

Specifications

1.Energy-efficient hydraulic system
2.Integration electric eleme
3.NISSAN K21 engine
4.American IMPCO LPG converter

3 Ton LPG Forklift Truck


General Manufacturer GP
1Model CPQD20CPQD25CPQD30CPQD35
CPQ20CPQ25CPQ30CPQ35
2Rated capacitykg2000250030003500
3Load centermm500
4Gearbox change speed type Hydraulic/Mechanical
5Power type Gasoline / LPG
6Tire typeFront/Rear Pneumatic
7WheelsFront/Rear 2*2/2
Dimensions8Lift heightmm3000
9Free lift heightmm140145150
10Fork sizeL*W*Tmm920*122*401070*122*401070*125*451070*130*45
11Mast tilt angleFwd/Bwddeg6/12
12Overall length (without fork)mm2513258326982725
13Overall widthmm115012251225
14Mast height fork loweredmm199520702160
15Overall height fork raisedmm403042503290
16Overall height (overhead guard)mm20702090
17Turning radius (outside)mm2170224024002450
18Load distance (centerline of front axle to front face of forks)mm483498
19Minimum Aisle -90 stack(Add load length and clearance)mm264027102885
20Wheel basemm16001700
21TreadFrontmm9701000
22Rearmm970
23Min. Under-clearance Bottom of mastmm110135145
24Bottom of framemm115140140
Performance25SpeedTravel Max.With loadkm/h1718
26Without loadkm/h19.519.5
27LiftingWith loadkm/h570450380
28Without loadkm/h600500450
29LoweringWith loadkm/h450420
30Without loadkm/h550500460
31Max. Drawbar pullWith/without loadkg1250/8501250/8501100/10001304/1190
321650/8501650/8501350/10001696/1190
33Max.GradeabilityWith/without load% (fan)20/2017/1815/1815/18
21/2218/1919/2015/18
Weight34Service weightkg3410377043704750
35Weight distributionWith loadFrontkg4730548064557320
36Rearkg590700825930
37Without loadFrontkg1520146517202040
38Rearkg1800221525602710
Tyre39TyreSizeFront 7.00-12-12PR28*9-15-12PR
40Rear 6.00-9-10PR6.50-10-10PR
Brake41BrakeService  Hydraulic-Foot pedal
42Parking Mechanical-Hand lever
Transmission43BatteryVoltage / CapacityV/AH12/100
44Internal combustion engineModel MITSUBISHI / NISSAN / HW491/ GQ-4Y
45Rated horsepowerKw/rpm42.5/250045.6/2700
46Rated torqueN.m/rpm161/1600185/1600
47Number of cylinder 4
48 Displacementcc2.352.488
49Fuel tank capacitylit7070
50TransmissionType Hydraulic/Mechanical
51Shift (Fwd/Rvs) 1/1 (2/2)
 52Work pressureMpa17.5
