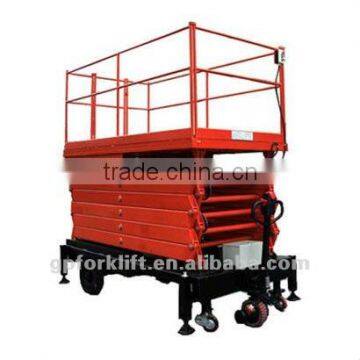

Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > 12m Lift Height - Scissor Type Aerial Work Lifter
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
GP
Model Number:
ESJY
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port or Any China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
GP
Model Number
ESJY
Lift Mechanism
Scissor Lift
Lift Drive / Actuation
Electric Motor
Min. Lifting Height
6000MM
Max. Lifting Height
12000MM
Specifications
supply 6-12meter height and 250kg-500kg
Product Name; ESJY300 series
Technical parameters; Scissor type Aerial work lifter
| Model | ESJY | ESJY | ESJY | ESJY | ESJY | |
| -9.3 | -11.3 | -12.3 | -14.3 | -16.3 | ||
| Capacity | KGS | 300 | 300 | 300 | 300 | 300 |
| Max height | 9000 | 11000 | 12000 | 14000 | 16000 | |
| Min height | 1350 | 1600 | 1750 | 1950 | 1980 | |
| Platform size | 1800*1000 | 2100*1150 | 2450*1350 | 2450*1350 | 2750*1500 | |
| Scissor material | 100*40*4 | 120*40*4 | 120*40*4 | 150*50*5 | 150*50*5 | |
| Wheel pump | CB-E304 | CB-E304 | CB-E306 | CB-E306 | CB-E308 | |
| Tyre | 400-8 | 500-8 | 500-8 | 500-8 | 600-9 | |
| Oil pump | D80*2 | D80*3 | D100*3 | D100*3 | D100*4 | |
| Overall length | 1900 | 2200 | 2600 | 2600 | 2900 | |
| Overall width | 1200 | 1350 | 1550 | 1550 | 1700 | |
| Overall height | 1500 | 1750 | 1900 | 2100 | 2130 | |
| (rail fold) | ||||||
| Rail height | mm | 1000 | 1000 | 1000 | 1000 | 1000 |
| Overall weight | kg | 1100 | 1500 | 2300 | 2600 | 3100 |
| Lift/Fall speed | s | 60 | 120 | 125 | 125 | 180 |
| Min turn radius | m | 6 | 7 | 8.5 | 9 | 11 |
| Extended platform size | mm | 800 | 800 | 1000 | 1000 | / |
| Battery | 120Ah*2 | 150Ah*2 | 200Ah*2 | 150Ah*4 | 150Ah*4 | |
| Charger | DC24V15A | DC24V20A | DC24V30A | DC48V20A | ||
| Hydraulic | cc/r | 2cc/r | 2.5cc/r | 2.5cc/r | 2.5cc/r | 2.5cc/r |
| Lift motor | DC24V2.2kw2800r/min | DC48V3kw2800r/min | ||||
| Drive motor | 750WDC24V | 750WDC24V | 1000WDC24V | 800WDC48V | 1200WDC48V | |
| Controller | Curtis | Curtis | Curtis | Curtis | Curtis | |
| Travel speed | KM/h | 4 | 4 | 4 | 4 | 4 |
| Gradeability | % | 13% | 11% | 8% | 10% | 10% |
