Home > Manufacturing & Processing Machinery > Lifting Equipment > Lifting Table > Full Electric Self-propelled Movable Scissor Lift Platform

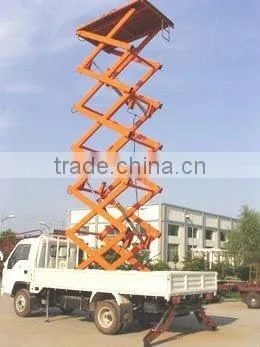

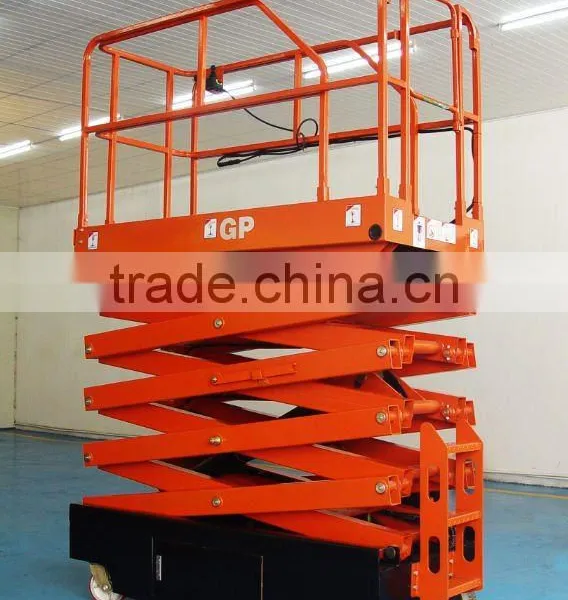

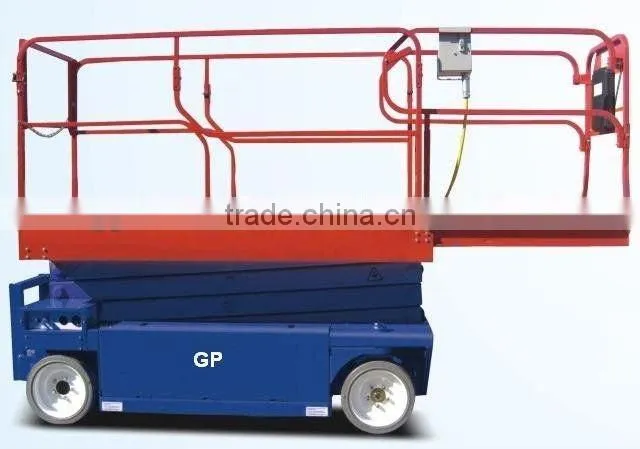

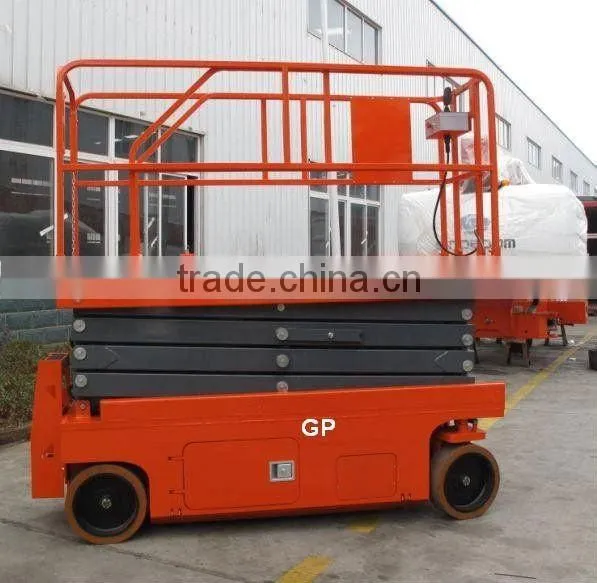

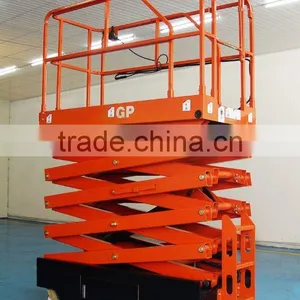

Full Electric Self-propelled Movable Scissor Lift Platform
US$ 1 - 1
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
GP
Model Number:
GTJZ06
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Scissor Car Lift With Max Platform Height 7.4mUS$ 1 - 1,000MOQ: 1 Unit -
Scissor Lift Table With Max Platform Height 7.4mUS$ 1,600 - 1,600MOQ: 1 Unit
-
Small Electric Scissor Lift With Max Platform Height 8mUS$ 1 - 1,000MOQ: 1 Unit
-
Scissor Lift Platform With Max Platform Height 7.4mUS$ 1,800 - 1,800MOQ: 1 Unit
-
Scissor Lift Tireswith Max Platform Height 7.4mUS$ 1 - 1,000MOQ: 1 Unit
Place of Origin
Shanghai, China
Brand Name
GP
Model Number
GTJZ06
Lift Mechanism
Scissor Lift
Lift Drive / Actuation
Electric Motor
Rated Loading Capacity
300kg
Max. Lifting Height
6000mm
Table Size
21870*760*1230mm
Overall Dimensions
1870*900*2018mm
Weight
1200kg
Specifications
1. ISO and CE certificates2.Flexible and movable in operating
3.Safety in aerial work
Technical Specification:
Model |
UNIT |
GTJZ06 |
GTJZ07 |
|
Max platform height |
mm |
6000 |
7400 |
|
Max machine height |
7100 |
8500 |
||
Min platform height |
918 |
1020 |
||
Ground clearance |
80 |
|||
Lift rated capacity |
kg |
300 |
250 |
|
Platform extend capacity |
100 |
80 |
||
Platform size |
mm |
21870*760*1230 |
||
Platform length extended |
900 |
|||
Max drive speed(Platform stowed) |
Km/h |
3-4 |
||
Max drive speed(Platform elevated) |
0.6-1 |
|||
Min turning radius |
mm |
1900 |
||
Max travel grade |
% |
10-15 |
||
Caster size |
mm |
8 |
||
Driving motor |
V/kw |
2*24/0.4-0.5 |
||
Lifting motor |
24/3 |
|||
Aneroid battery |
V/Ah |
2*12/120 |
||
Charger |
V/A |
24/12 |
||
Pothote Protection System |
N/A |
Auto Mechanism |
||
Overall length |
mm |
1870 |
||
Overall width |
900 |
|||
Overall height |
2018 |
2120 |
||
Overall weight |
1200 |
1290 |
||
