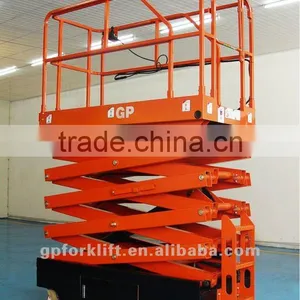

Mobile Scissor Lift Platform

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shanghai, China

Brand Name:

Model Number:

GTJB 0.5-11

Shanghai Gather Power Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Brand Name GP

Model Number GTJB 0.5-11

Lift Mechanism Scissor Lift

Lift Drive / Actuation Electric Motor

Power 24kw

Rated Loading Capacity 500kg

Min. Lifting Height 1480mm

Max. Lifting Height 11000mm

Table Size 2200*1000*1100mm

Overall Dimensions 2540*1300*1580m

Weight 1800kg

Specifications

1. AC,DC motor and driving systems for option. 2. With safety-falling equipment. 3. Solid tire.

GP Semi-Electric Scissor Type Lifting Platform, movement design to keep stable lift and lower, high capacity and large working

GP Semi-Electric Scissor Type Lifting Platform

Half - Electric Scissor Type Lifting Platform
Model	Unit	GTJB 0.5-6	GTJB 0.5-7.5		GTJB 0.5-9	GTJB 0.5-11
Max platform height	mm	6000	7500		9000	11000
Min platform height	mm	1080	1200		1360	1480
Lift rated capacity	kg	500
Platform size	mm	220010001100
The developed dimension of legs	mm	2700*2200
Elevating Time	s	59	77
Driving motor	V/kw	24/1.2
Lifting motor	V/kw	24/2.2				24/3
Aneroid Battery	V/Ah	2x12/150
Charger	V/A	24/15
Electromotor power	kw	2.2				3
Overall length	mm	2540
Overall width	mm	1300
Overall height	mm	1180		1300	1460	1580
Overall weight	kg	950		1350	1600	1800
