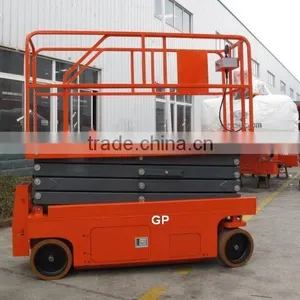

work platform
- 5000 Unit / Units per Month
- Shanghai
- T/T
- China easy operated scissor lift platform, truck mounted platform scissor lift
- China low cost hydraulic elevating platform, truck mounted platform scissor lift
- 2015 hot sale double ladder stop type hydraulic scaffolding lift
- Big discount offered 8m lift self propelled hydraulic outdoor aerial work platform scissor lift
- China factory direct sale self propelled scissor lift table / hydraulic scissor lift
- China good working performance hydraulic scissor lift table, electric mini scissor lift
Product Details
Place of Origin: | Shanghai, China | Brand Name: | GP | Model Number: | GTJZ07 |
Lift Mechanism: | Scissor Lift | Lift Drive / Actuation: | Electric Motor | Rated Loading Capacity: | 250kg |
Max. Lifting Height: | 7400mm | Table Size: | 21870*760*1230mm | Overall Dimensions: | 1870*900*2120mm |
Weight: | 1290kg | Certification: | SGS & ISO & CE | Warranty: | 1 YEAR |
After-sales Service Provided: | Overseas third-party support available |
Product Description
Specifications
A one-hand joystick control allows the operator to control the machine movement within a tight radius from the working platform.
Model | UNIT | GTJZ06 | GTJZ07 | |
Max platform height | mm | 6000 | 7400 | |
Max machine height | 7100 | 8500 | ||
Min platform height | 918 | 1020 | ||
Ground clearance | 80 | |||
Lift rated capacity | kg | 300 | 250 | |
Platform extend capacity | 100 | 80 | ||
Platform size | mm | 21870*760*1230 | ||
Platform length extended | 900 | |||
Max drive speed(Platform stowed) | Km/h | 3-4 | ||
Max drive speed(Platform elevated) | 0.6-1 | |||
Min turning radius | mm | 1900 | ||
Max travel grade | % | 10-15 | ||
Caster size | mm | 8 | ||
Driving motor | V/kw | 2*24/0.4-0.5 | ||
Lifting motor | 24/3 | |||
Aneroid battery | V/Ah | 2*12/120 | ||
Charger | V/A | 24/12 | ||
Pothote Protection System | N/A | Auto Mechanism | ||
Overall length | mm | 1870 | ||
Overall width | 900 | |||
Overall height | 2018 | 2120 | ||
Overall weight | 1200 | 1290 |
