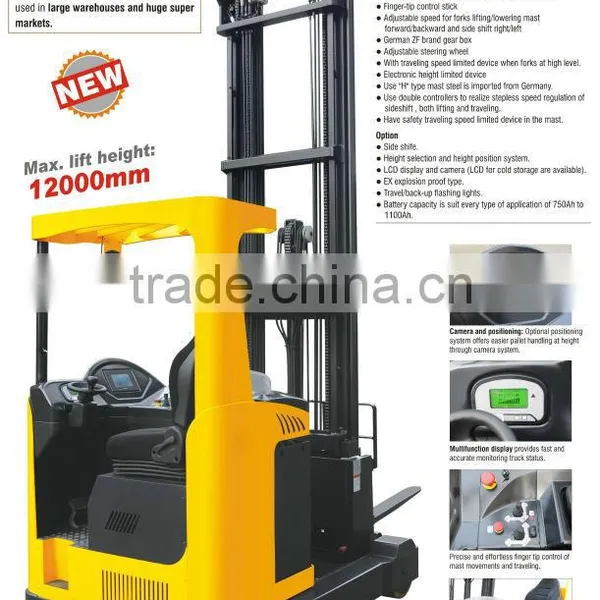

Double Deep Reach Truck From Shanghai GP Co.,Ltd

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

Model Number:

CQD20H(EPS)

Shanghai Gather Power Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name GP

Model Number CQD20H(EPS)

Type Powered Pallet Truck

Rated Loading Capacity 2000kg

Max. Lifting Height 12000mm

Specifications

German ZF gear box,solenoid valve and mast, Italian joysticks, Japanese pumps, CUTRIS electronically controller and instrument

Model		CQD20H(EPS)
Drive type		Electric
Operation type		Seated
Rated capacity	kg	2000
Load center	mm	500
Reach distance	mm	700
Load distance, center of drive axle to fork	mm	390
Tread, rear	mm	1350
Wheelbase	mm	1600
Service weight	kg	4840
Axle loading, unladen front/rear	kg	1890/2940
Axle loading, fork advanced,laden front/rear	kg	5840/1000
Axle loading, fork retracted,laden front/rear	kg	4040/2820
Tyres type		Polyurethane
Drive wheel dimension	mm	406×152
Fork wheel dimension	mm	340×134
Height, mast lowered	mm	4190/4490/4790
Free lift	mm	3600/3900/4200
Max. lifting height	mm	10200/11100/12000
Height, mast extended	mm	12800
Height of overhead guard(cabin)	mm	2200
Seat height	mm	1060
Height of crura	mm	355
Fork length	mm	1070
Overall length	mm	2510
Length(from forks bracket)	mm	1440
Length(barring fork)	mm	2050
Overall width	mm	1510
Front width	mm	1260
Fork bracket width	mm	928
Inner width of legs	mm	1090
Distance between forks	mm	850
Aisle width for pallets 1000×1200 crossways	mm	2920
Aisle width for pallets 800×1200 crossways	mm	2980
Turning radius	mm	1920
Travel speed, laden/unladen	km/h	9
Lift speed, laden/unladen	mm/s	240/300
Lower speed, laden/unladen	mm/s	500/400
Reach speed	mm/s	100
Travel brake		Hydraulic
Park brake		Electromagnetism
Drive motor	kw	5
Lift motor	kw	11
Battery dimension	mm	1220/344/727
Battery capacity	Ah	500
Battery voltage	V	480
Battery weight	kg	860
