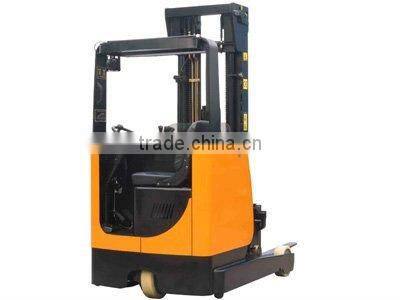

full electric reach lift truck
Negotiable
/ Unit
1 Unit(Min.Order)
- 5000 Unit / Units per Month
- Shanghai
- T/T
You May Like
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | GP |
Model Number: | ETV120-30 | Type: | Powered Pallet Truck | Power Souce: | DC Motor |
Rated Loading Capacity: | 2000 | Max. Lifting Height: | 9200mm | Min. Lifting Height: | 3000mm |
Fork Length: | 1070mm | Fork Width: | 100mm |
Product Description
Specifications
1 ton full electric reach truck1.large and strong chassis
2.Germany steel mast
3.Large and comfortable compartment
1 ton full electric reach truck
Electric Reach Truck | Model | |||||
Item | Specification | Unit | ETV110-30 | ETV115-30 | ETV120-30 | |
1 | Characteristics | Power | Battery | Battery | Battery | |
2 | Operation | Seated | Seated | Seated | ||
3 | Load Capacity | Q(kg) | 1000 | 1500 | 2000 | |
4 | Lift height (biggest) | h3(mm) | 3000 | 3000 | 3000 | |
5 | Load Center | c(mm) | 500 | 500 | 500 | |
6 | Axle centre to fork face | x(mm) | 390 | 390 | 380 | |
7 | Wheelbase | Y(mm) | 1480 | 1480 | 1500 | |
8 | Weight | Service Weight | kg | 2200 | 2400 | 3300 |
9 | Wheel | Tyre | PU Wheel | PU Wheel | PU Wheel | |
10 | Tyre size, front | mm | ø280*100 | ø280*100 | ø406*152 | |
11 | Tyre size, rear | mm | ø250*80 | ø250*80 | ø340*104 | |
12 | Wheel, front/rear | 3.2 | 3.2 | 2.1 | ||
13 | Track width, front | b10(mm) | 740 | 740 | 835 | |
14 | Track width, rear | b11(mm) | 996 | 996 | 1012 | |
15 | Dimensions | Mast/fork carriage tilt,forwar/backward | α,β(Grad) | 2.5 | 2.5 | 2.2 |
16 | Height of mast lowered | h1(mm) | 2086 | 2086 | 2086 | |
17 | Free lift | h2(mm) | ~ | ~ | ~ | |
18 | Height of mast, extend | h4(mm) | 3800 | 3800 | 3800 | |
19 | Height of overhead guard (cabin) | h6(mm) | 2114 | 2114 | 2200 | |
20 | h7(mm) | 920 | 920 | 1068 | ||
21 | Height of reach legs | h8(mm) | 270 | 270 | 270 | |
22 | Length to fork face | l1(mm) | 2390 | 2390 | 2040 | |
23 | Overall length | l2(mm) | 1850 | 1850 | 2440 | |
24 | Overall width | b1(mm) | 1100 | 1100 | 1260 | |
25 | A,B Fork carriage to DIN 15173, class/form A,B | A | A | A | ||
26 | Fork carriage width | b3(mm) | 928 | 928 | 928 | |
27 | Fork spread | b5(mm) | 640 | 640 | 640 | |
28 | Width between reach legs | b4(mm) | 800 | 800 | 900 | |
29 | Reach travel | l4(mm) | 600 | 600 | 600 | |
30 | Ground clearance, mast | m1(mm) | 90 | 90 | 90 | |
31 | Ground clearance, center of wheelbase | m2(mm) | 80 | 80 | 80 | |
34 | Turning radius | Wa(mm) | 1740 | 1740 | 1820 | |
35 | Performance | Travel speed, with/without load | Km/h | 7/7.2 | 7/7.2 | 8/8.3 |
36 | Lifting speed, with/without load | m/s | 0.19/0.2 | 0.19/0.2 | 0.19/0.2 | |
37 | Lowering speed, with/without load | m/s | 0.5/0.4 | 0.5/0.4 | 0.5/0.4 | |
38 | Reach speed, with/without load | m/s | 0.1/0.1 | 0.1/0.1 | 0.1/0.1 | |
39 | Climbing ability, with/without load | % | 10/12 | 10/12 | 10/12 | |
40 | Acceleration time, with/without load | s | 3/4 | 3/5 | 4.8/4.3 | |
41 | Service brake | mechanical | mechanical | hydraulic |
