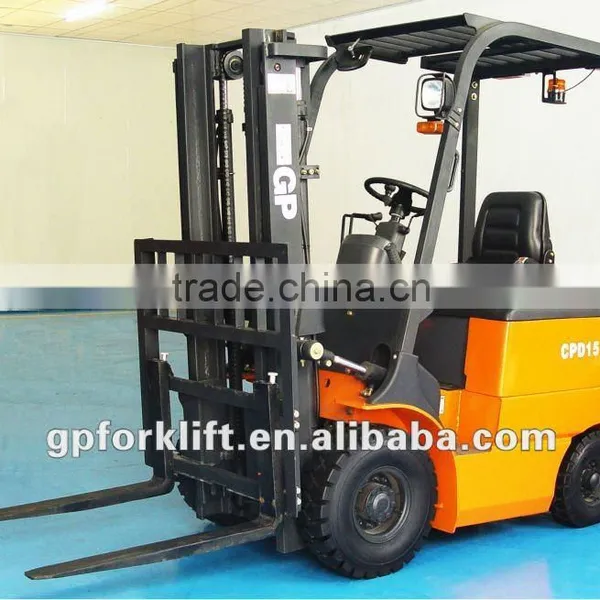

Electric Fork Lift Truck

Electric Fork Lift Truck thumbnail-1
Electric Fork Lift Truck photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
GP
Contact Supplier Request Quote Chat Now
Shanghai Gather Power Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name GP
Model Number CPD15
Type Powered Pallet Truck
Power Souce DC Motor
Rated Loading Capacity 1500kg
Max. Lifting Height 3000mm
Min. Lifting Height 0mm
Fork Length 920mm
Fork Width 100mm
Overall Dimensions 2056*1090*2162mm

Specifications

1)Suspended type brake equipment
2)Reliable separately excited motor
3)GE traveling electronic controller

1. GE travelling electronic controller 2. Multi-valve control



electric forklift truck

General   Manufacturer   GP
1 Model   CPD10 CPD15
2 Rated capacity kg 1000 1500
3 Load center mm 500
4 Power type   Battery
5 Tire type Front/Rear   Pneumatic
6 Wheels Front/Rear   2*2
Dimensions 7 Lift height mm 3000
8 Free lift height mm 162
9 Fork size L*W*T mm 920*100*40
10 Mast tilt angle Fwd/Bwd deg 6/12
11 Overall length (without fork) mm 2056
12 Overall width mm 1090
13 Mast height fork lowered mm 1995
14 Overall height fork raised mm 4042
15 Overall height (overhead guard) mm 2162
16 Turning radius (outside) mm 1820
17 Load distance (centerline of front axle to front face of forks) mm 429
18 Minimum Aisle -90 degree stack(Add load length and clearance) mm 3370
19 Wheel base mm 1250
20 Tread Front mm 890
21 Rear mm 920
22 Min. Under-clearance Bottom of mast mm 95/110
23 Bottom of frame mm 95/105
Performance 24 Speed Travel Max. With load km/h 11.5 11
25 Without load km/h 13.5 13
26 Lifting With load km/h 300 285
27 Without load km/h 400 390
28 Max. Drawbar pull With/without load Kn 6 6.5
29 Max.Gradeability With/without load % (fan) 15
Weight 30 Service weight kg 2900 3120
Tyre 31 Tyre Size Front   6.5-10-10PR
32 Rear   5.00-8-8PR
power control 33 Battery Voltage V 48
34 Capacity AH *400/440/480
35 Electric motor drive motor kw/rpm 5.3/1700
36 lift motor kw 8.2/1600
37 controller   GE separate excitation controller
38

Our company is a professional manufacturer of material handling equipments in China,our main products line includes:



30-40 tons mast mobile container crane,

1-25 tons internal combustion forklift trucks,

1-2.5 tons electric reach trucks , electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, forklifts spare parts, etc

Anything you are interested in, pls tell me and I'll quote the favorable  price to you.
