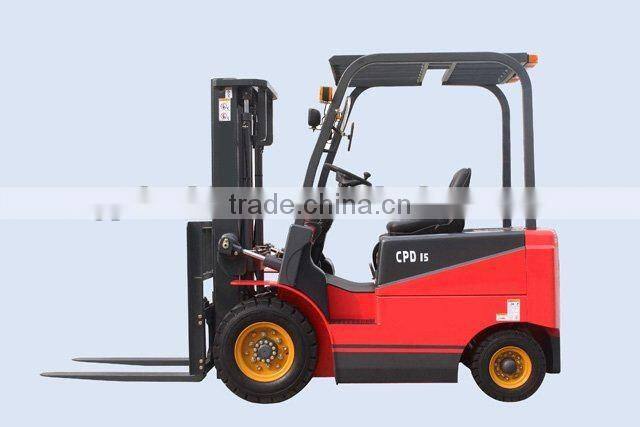

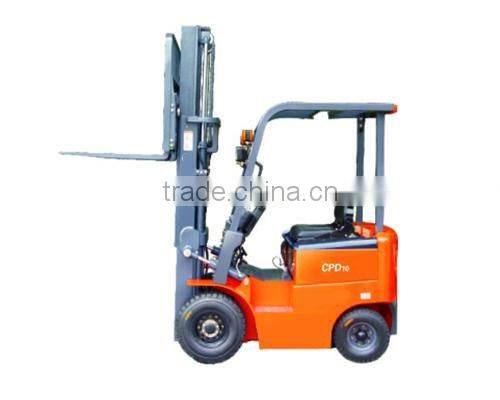

1ton Electric Forklift Truck

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

Shanghai Gather Power Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name GP

Model Number CPD10

Type Other

Power Souce DC Motor

Rated Loading Capacity 1000KG

Max. Lifting Height 3M

Min. Lifting Height 0M

Fork Length 920mm

Fork Width 100mm

Overall Dimensions 920*100*40mm

Specifications

1.Lift height 3M,2-stage mast,
2. GE travelling electronic controller
3,Pneumatic tire,
4. Multi-valve control

Technical Specification:

General		Manufacturer				GP
	1	Model				CPD10	CPD15
	2	Rated capacity			kg	1000	1500
	3	Load center			mm	500
	4	Power type				Battery
	5	Tire type		Front/Rear		Pneumatic
	6	Wheels		Front/Rear		2*2
Dimensions	7	Lift height			mm	3000
	8	Free lift height			mm	162
	9	Fork size		LWT	mm	92010040
	10	Mast tilt angle		Fwd/Bwd	deg	6/12
	11	Overall length (without fork)			mm	2056
	12	Overall width			mm	1090
	13	Mast height fork lowered			mm	1995
	14	Overall height fork raised			mm	4042
	15	Overall height (overhead guard)			mm	2162
	16	Turning radius (outside)			mm	1820
	17	Load distance (centerline of front axle to front face of forks)			mm	429
	18	Minimum Aisle -90 degree stack(Add load length and clearance)			mm	3370
	19	Wheel base			mm	1250
	20	Tread		Front	mm	890
	21			Rear	mm	920
	22	Min. Under-clearance		Bottom of mast	mm	95/110
	23			Bottom of frame	mm	95/105
Performance	24	Speed	Travel Max.	With load	km/h	11.5	11
	25			Without load	km/h	13.5	13
	26		Lifting	With load	km/h	300	285
	27			Without load	km/h	400	390
	28	Max. Drawbar pull		With/without load	Kn	6	6.5
	29	Max.Gradeability		With/without load	% (fan)	15
Weight	30	Service weight			kg	2900	3120
Tyre	31	Tyre	Size	Front		6.5-10-10PR
	32			Rear		5.00-8-8PR

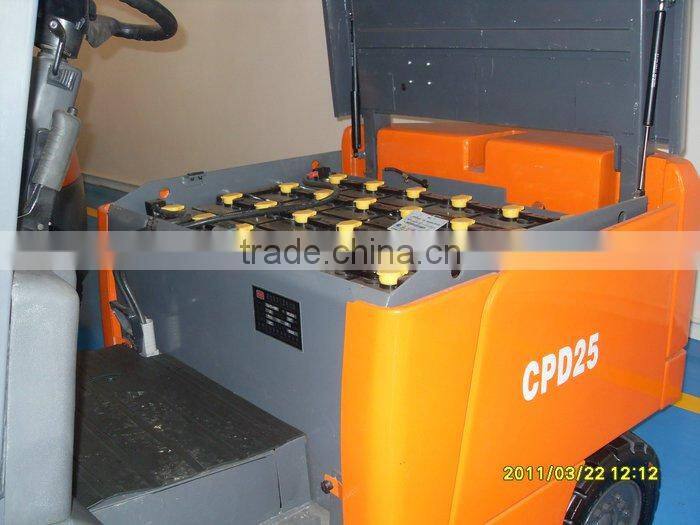

power control	33	Battery	Voltage		V	48
	34		Capacity		AH	*400/440/480
	35	Electric motor	drive motor		kw/rpm	5.3/1700
	36		lift motor		kw	8.2/1600
	37	controller				GE separate excitation controller
