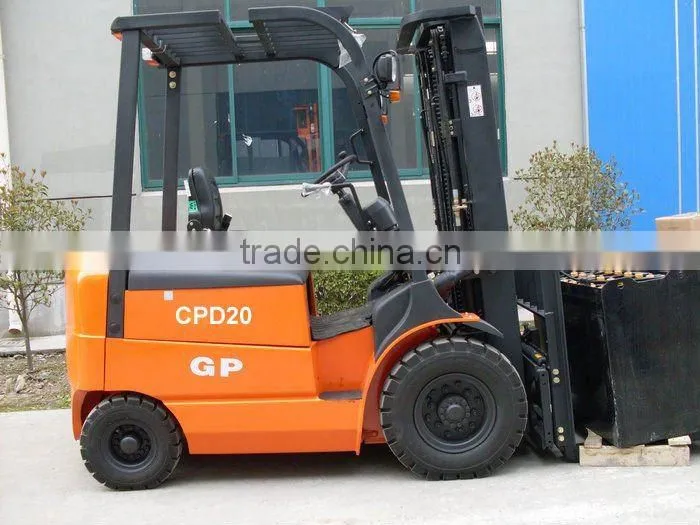

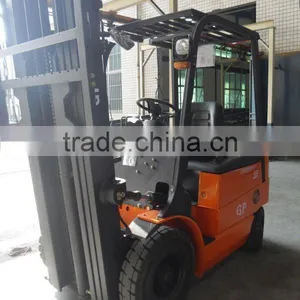

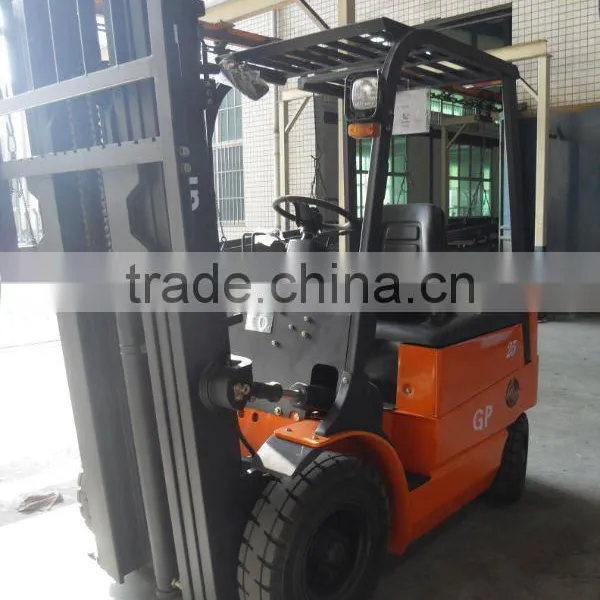

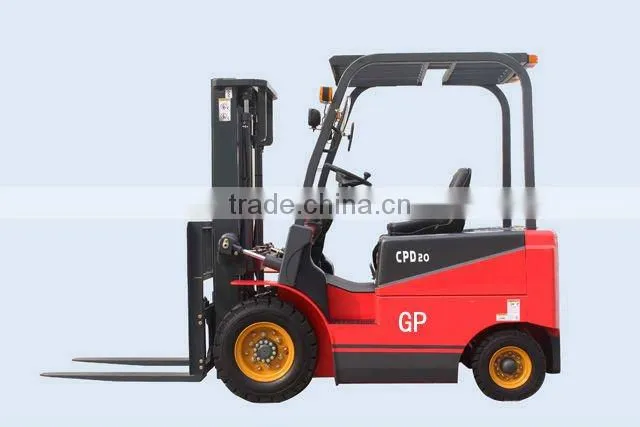

High Quality Power Lift/testing Machine

Shanghai Gather Power Industry Co., Ltd.

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name GP

Model Number CPD25

Type Powered Pallet Truck

Power Souce AC Motor

Rated Loading Capacity 2500kg

Max. Lifting Height 3000mm

Min. Lifting Height 0mm

Fork Length 1070mm

Fork Width 120mm

Overall Dimensions 2381*1152*2060mm

Specifications

1.Italy SME motor
2.Suspended brake system
3.GE traveling electric control

General		Manufacturer				GP
	1	Model				CPD20	CPD25	CPD30

	2	Rated capacity			kg	2000	2500	3000
	3	Load center			mm	500
	4	Power type				Battery
	5	Tire type		Front/Rear		Pneumatic
	6	Wheels		Front/Rear		2*2
Dimensions	7	Lift height			mm	3000
	8	Free lift height			mm	140		145
	9	Fork size		LWT	mm	107012040	107012045
	10	Mast tilt angle		Fwd/Bwd	deg	6/12		6/10
	11	Overall length (without fork)			mm	2349	2381	2481
	12	Overall width			mm	1152		1265
	13	Mast height fork lowered			mm	2060		2040
	14	Overall height fork raised			mm	4040		4273
	15	Overall height (overhead guard)			mm	2159		2125
	16	Turning radius (outside)			mm	2050	2100	2230
	17	Load distance (centerline of front axle to front face of forks)			mm	479	484	454
	18	Minimum Aisle -90. stack(Add load length and clearance)			mm	4160	4360	4850
	19	Wheel base			mm	1500		1630
	20	Tread		Front	mm	960		1040
	21			Rear	mm	950		980
	22	Min. Under-clearance		Bottom of mast	mm	100/120		85/105
	23			Bottom of frame	mm	100/120		120/140
Performance	24	Speed	Travel Max.	With load	km/h	11	10.5	12
	25			Without load	km/h	12.5	12.5	13
	26		Lifting	With load	km/h	260	250	250
	27			Without load	km/h	400	390	380
	28	Max. Drawbar pull		With/without load	Kn	8	8	10
	29	Max.Gradeability		With/without load	% (fan)	10		10
Weight	30	Service weight			kg	4160	4360	4850
Tyre	31	Tyre	Size	Front		7.00-12-12PR		23*9-10
	32			Rear		18*7-8-14PR		18*7-8

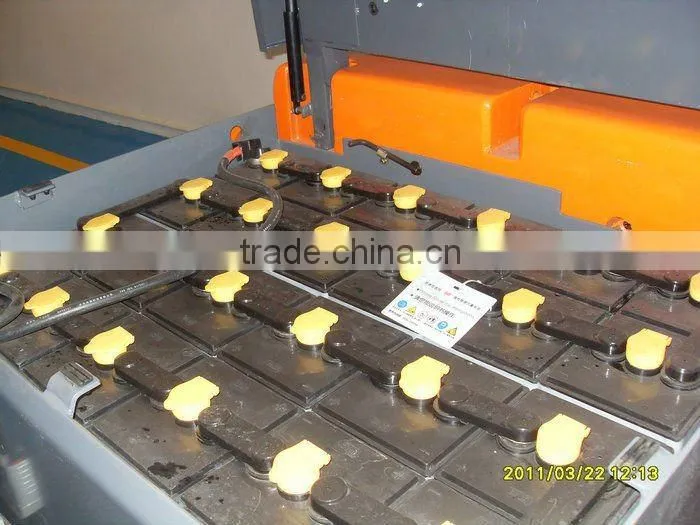

power control	33	Battery	Voltage		V	48		80
	34		Capacity		AH	*630/700		*500/600
	35	Hyfraulic motor	drive motor		kw/rpm	7.0/1400		10.2/1500
	36		lift motor		kw	8.6/1600		10/2000
	37	controller				GE separate excitation controller
	38
