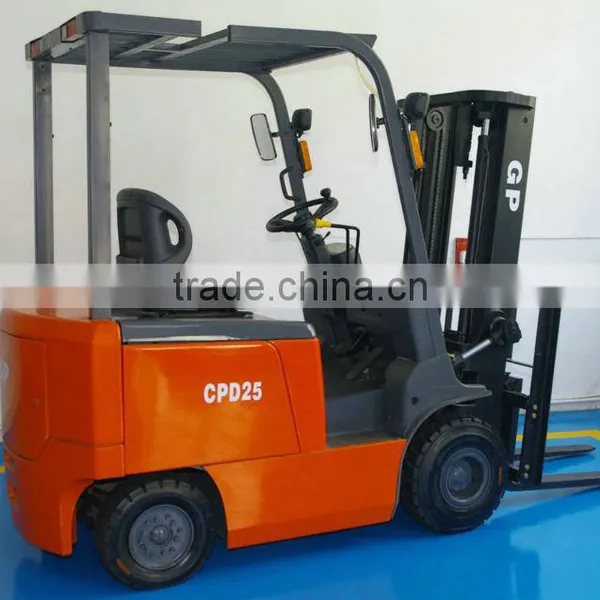

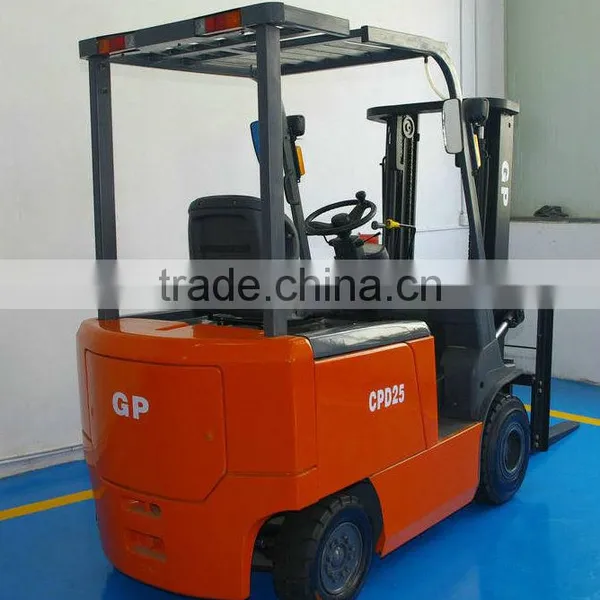

Electric Truck Used in in Refrigeration Chamber Minus 20 Degree

Shanghai Gather Power Industry Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name GP

Model Number CPD15

Type Powered Pallet Truck

Power Souce DC Motor

Rated Loading Capacity 1500kg

Max. Lifting Height 6500mm

Min. Lifting Height 3000mm

Fork Length 920mm

Fork Width 100mm

Overall Dimensions 2056*1090*2162mm

Specifications

1)Suspended type brake equipment
2)Reliable separately excited motor
3)GE traveling electronic controller

Our electric forklifts have following trait:

Scientific ergonomic application Reliable separate excitation motor MOSFET electronic controller

Multi-function assembled instrument

Manufacturer				GP
Model				CPD10	CPD15
Rated capacity			kg	1000	1500
Load center			mm	500
Power type				Battery
Tire type		Front/Rear		Pneumatic
Wheels		Front/Rear		2*2
Lift height			mm	3000
Free lift height			mm	162
Fork size		LWT	mm	92010040
Mast tilt angle		Fwd/Bwd	deg	6/12
Overall length (without fork)			mm	2056
Overall width			mm	1090
)Mast height fork lowered			mm	1995
Overall height fork raised			mm	4042
Overall height (overhead guard)			mm	2162
Turning radius (outside)			mm	1820
Load distance (centerline of front axle to front face of forks)			mm	429
Minimum Aisle -90 stack(Add load length and clearance)			mm	3370
Wheel base			mm	1250
Tread		Front	mm	890
		Rear	mm	920
Min. Under-clearance		Bottom of mast	mm	95/110
		Bottom of frame	mm	95/105
Speed	Travel Max.	With load	km/h	11.5	11
		Without load	km/h	13.5	13
	Lifting	With load	km/h	300	285
		Without load	km/h	400	390
Max. Drawbar pull		With/without load	Kn	6	6.5
Max.Gradeability		With/without load	% (fan)	15
Service weight			kg	2900	3120


Tyre	Size	Front		6.5-10-10PR
		Rear		5.00-8-8PR

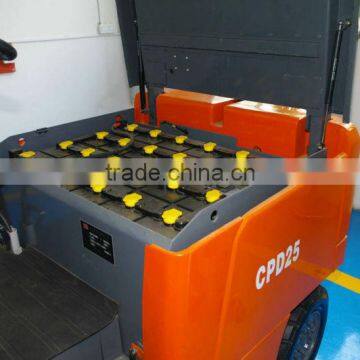

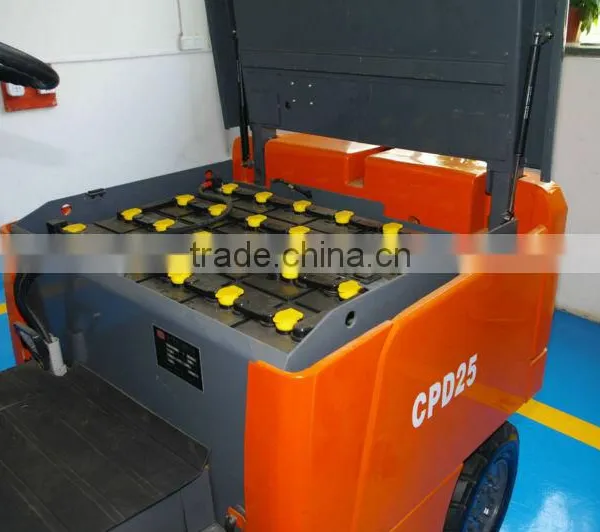

Battery	Voltage		V	48
	Capacity		AH	400/440/480
Electric motor	drive motor		kw/rpm	5.3/1700
	lift motor		kw	8.2/1600
controller				GE separate excitation controller
