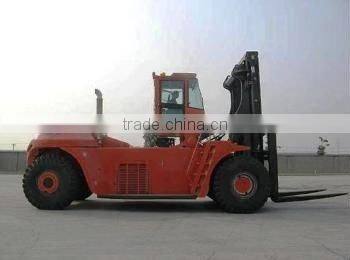

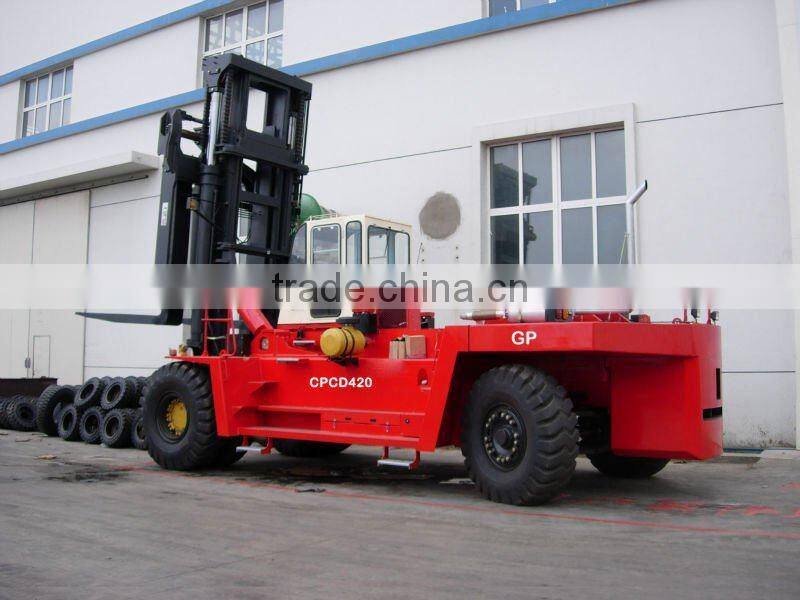

High Quality 16 Ton Diesel Forklift Truck

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

Shanghai Gather Power Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name GP

Model Number CPCD160

Type Powered Pallet Truck

Power Souce Diesel Engine

Rated Loading Capacity 16000KG

Max. Lifting Height 6M

Min. Lifting Height 3M

Fork Length 1500mm

Fork Width 200mm

Overall Dimensions 4890*2450*3884mm

Specifications

1.Cetified,fine quality,low price
2.Streamline size&comfort
3..Imported technique&smart design

STANDARD DIMENSIONS
Model		CPCD160
A	Overall height fork raised (with backrest)(mm)	5884
B	Mast Lifting height(mm)	4000
C	Free lift(mm)	0
D	Overall height fork lowered (uprough) (mm)	3884
E	Backrest height (from upper face of forks)(mm)	1035
F	Overall length (with forks)(mm)	6390
G	Overall length (without forks)(mm)	4890
H	Overall height(over head guard)(mm)	2875
I	Overall width(mm)	2450
J	Fork length(mm)	1500
K	Fork thickness(mm)	87
L	Fork width (mm)	200
M	Lateral for adjustment (outside of fork)(mm)	508-2012
N	Overhead guard clearance (from face of sent)(mm)	1000
O	Coupler height(mm)	630
P	Fork overhang(mm)	804
Q	Rear overhang(mm)	986
R	Wheel base(mm)	3100
S	Tread(front)(mm)	1765
T	Tread(read)(mm)	1890
U	Min under-clearance (bottom of mast)(mm)	260
v	Min turning radius(mm)	4600
w	Min intersecting aisle (mm)	3780
x	Tilting angles(forward backward)(mm)	6/12
