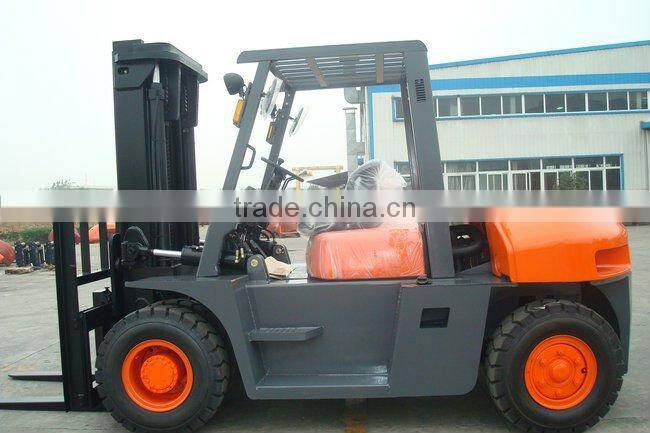

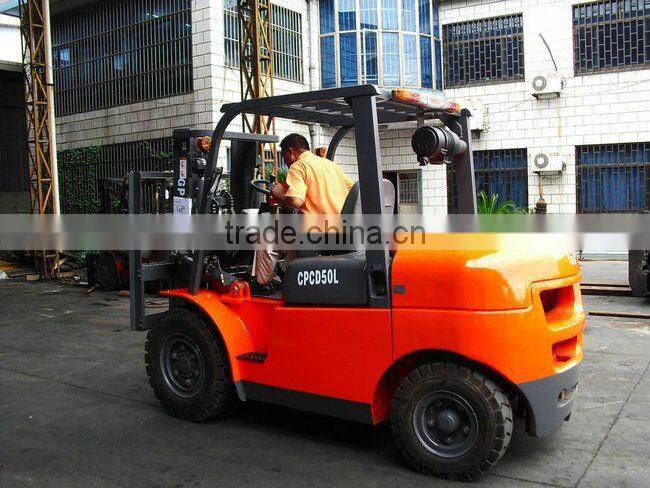

4.5 Ton Diesel Forklift, Xinchai/Nissan Engine

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

Shanghai Gather Power Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name GP

Model Number CPCD45

Type Powered Pallet Truck

Power Souce Diesel Engine

Rated Loading Capacity 4500KG

Max. Lifting Height 3M

Min. Lifting Height 0M

Fork Length 1070mm

Fork Width 140mm

Overall Dimensions 1070*140*55mm

General		Manufacturer				GP
	1	Model				CPCD40	CPCD45	CPCD50L
	2	Rated capacity			kg	4000	4500	5000
	3	Load center			mm	500
	4	Gearbox change speed type				Hydraulic
	5	Power type				Diesel
	6	Tire type		Front/Rear		Pneumatic
	7	Wheels		Front/Rear		2*2/2
Dimensions	8	Lift height			mm	3000
	9	Free lift height			mm	150	155
	10	Fork size		LWT	mm	107014050	107014055	107015055
	11	Mast tilt angle		Fwd/Bwd	deg	6/12
	12	Overall length (without fork)			mm	3091	3091	3125
	13	Overall width			mm	1485
	14	Mast height fork lowered			mm	2390
	15	Overall height fork raised			mm	4275
	16	Overall height (overhead guard)			mm	2250
	17	Turning radius (outside)			mm	2790		2830
	18	Load distance (centerline of front axle to front face of forks)			mm	562	567
	19	Minimum Aisle -90. stack(Add load length and clearance)			mm	3415	3415	3460
	20	Wheel base			mm	2000
	21	Tread		Front	mm	1180
	22			Rear	mm	1190
	23	Min. Under-clearance		Bottom of mast	mm	145
	24			Bottom of frame	mm	180
Performance	25	Speed	Travel Max.	With load	km/h	15
	26			Without load	km/h	14
	27		Lifting	With load	km/h	450
	28			Without load	km/h	480
	29		Lowering	With load	km/h	430
	30			Without load	km/h	440
	31	Max. Drawbar pull			KN	>21
	33	Max.Gradeability			%	>20%
	34	Service weight			kg	6450	6770	7050
Tyre	39	Tyre	Size	Front		300-15-18PR
	40			Rear		7.00-12-12PR
Brake	41	Brake	Service			Hydraulic-Foot pedal
	42		Parking			Mechanical-Hand lever
Transmission	43	Battery	Voltage / Capacity		V/AH	2-12V/80AH
	44	Internal combustion engine	Model			ISUZU 6BG1 engine / PERKINS1104
	45		Rated horsepower		Kw/rpm	68/2000
	46		Rated torque		N.m/rpm	340/1600
	47		Number of cylinder			6
	48		Displacement		cc	6.494
	49		Fuel tank capacity		lit	90
	50	Transmission	Type			Hydraulic
	51		Shift (Fwd/Rvs)			2/1
