Help Center11.5-15.0 Ton Diesel Forklift Truck With Side Shift and Casecade Side Shift
Related Products
Specifications
1.TCM technology2.ISUZU 6BG1 engine
3.Hydraulic transmission
4.Available in different colors

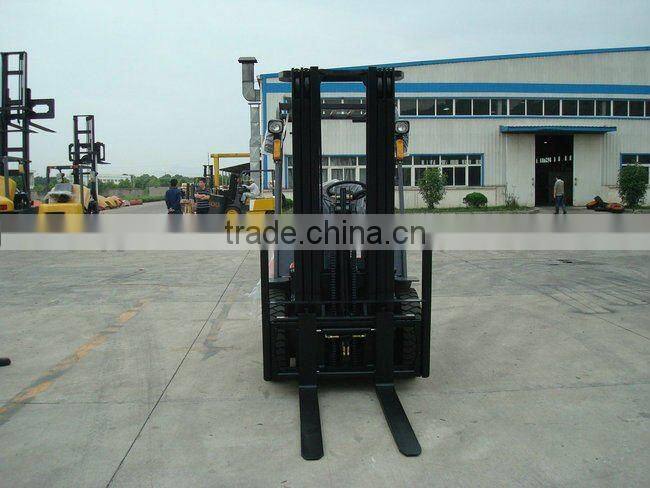

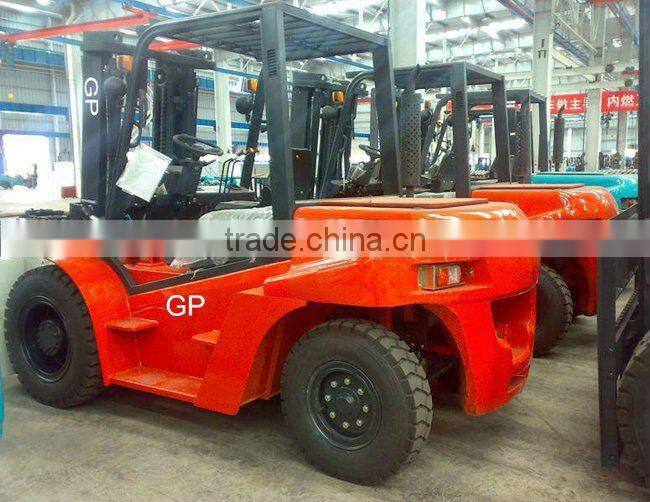

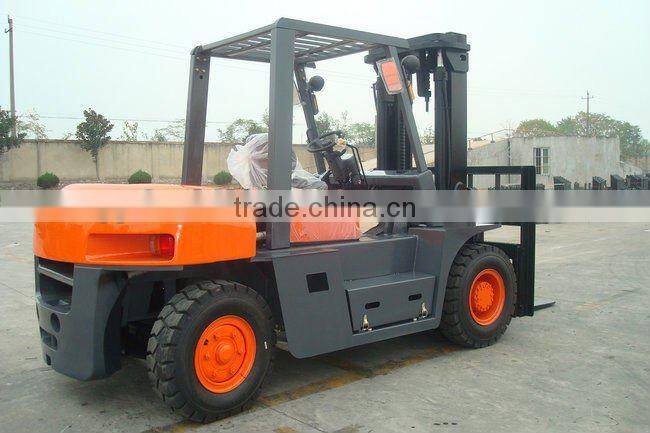

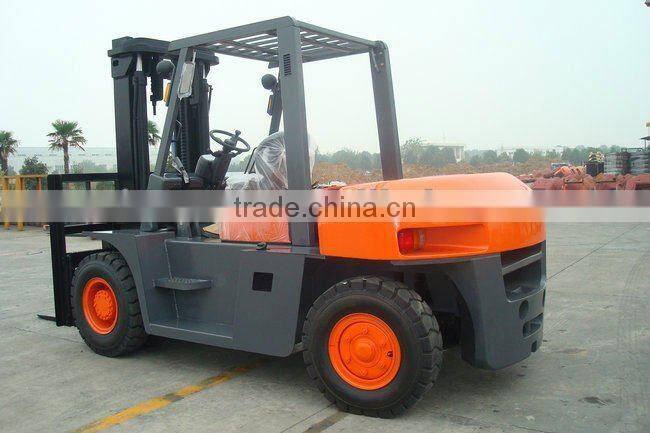

11.5-15.0 Ton Diesel Forklift Truck with side shift and casecade side shift
Advantage of diesel truck with forklift (such as 12 ton forklift):
1. The special all-round roller bearing the doorframe and prolong service life, improve reliability.
2. Adjust the load distribution, improve the stability and load capacity.
3. The door frame high strength wide view mast and two or three free all day promote the door frame of its scope. Highly choice, can be configured fork move, lateral and various appurtenances provided.
4. The instrument and seat beautiful reliable combination instrument, steering wheel and small pear-shaped handle all of human body engineering design, reflect people-oriented design thought.
5. Imported heavy KaShi high hfe braking system to ensure that the heavy than braking, brake reliably.
6. Equipped with unique top oil cylinder, facilitate the customer maintenance operation.
7. Overloaded with high strength in drive to bridge the slow, and the planet type wheel edges to slow down, the more suitable for heavy and bad working conditions in the safe and reliable operation of homework.
8. Hydraulic steering system, the realization to light, small in turning radius, flexible steering, it is easy to operate.
9. With double pump confluence work hydraulic system, reduce oil consumption, energy consumption.
10. Wide view mast view is broad, easy to observe the driver.
Specifications of lift truck equipment:
| >STANDARD DIMENSIONS | ||||
| Model | CPCD115 | CPCD135 | CPCD140 | CPCD150 |
| Overall height fork raised (with backrest)(mm) | 5539 | 5884 | 5884 | 5884 |
| Mast Lifting height(mm) | 4000 | |||
| Free lift(mm) | 0 | |||
| Overall height fork lowered (mm) | 3539 | 3884 | 3539 | 3884 |
| Backrest height (from upper face of forks)(mm) | 1035 | 1035 | 1035 | 1035 |
| Overall length (with forks)(mm) | 5875 | 6030 | 6080 | 6340 |
| Overall length (without forks)(mm) | 4375 | 4530 | 4580 | 4840 |
| Overall height(over head guard)(mm) | 2835 | 2875 | ||
| Overall width(mm) | 2370 | 2450 | ||
| Fork length(mm) | 1500 | |||
| Fork thickness(mm) | 82 | 87 | 87 | 87 |
| Fork width (mm) | 170 | 200 | 200 | 200 |
| Lateral for adjustment (outside of fork)(mm) | 508-2012 | |||
| Overhead-guard clearance (from face of sent)(mm) | 1000 | |||
| Coupler height(mm) | 630 | 630 | 630 | 630 |
| Fork overhang(mm) | 757 | 796 | 796 | 804 |
| Rear overhang(mm) | 819 | 936 | 986 | 936 |
| Wheel base(mm) | 2800 | 2800 | 3100 | |
| Tread(front)(mm) | 1760 | 1765 | ||
| Tread(read)(mm) | 1930 | 1890 | ||
| Min under-clearance (bottom of mast)(mm) | 275 | 260 | ||
| Min turning radius(mm) | 4080 | 4160 | 4210 | 4550 |
| Min intersecting aisle ( °) | 3580 | 3620 | 3620 | 3780 |
| Tilt angles(forward backward)(mm) | 6/12 | |||
| Specification | ||||||||
| Model | CPCD115 | CPCD135 | CPCD140 | CPCD150 | ||||
| Load Capacity(kg) | 11500 | 13500 | 14000 | 15000 | ||||
| Load Center(mm) | 600 | |||||||
| Power Type | DIESEL | |||||||
| Tire Type | Pneumatic | |||||||
| Lifting Speeds(With Load/Without Load)(mm/s) | 320/340 | 290/310 | 290/310 | 280/310 | ||||
| Lowering Speeds(With Load/Without Load)(mm/s) | <600>=300 | |||||||
| Max Driving Speeds(km/h) | 25/27 | 24/26 | 25/27 | 25/27 | 25/27 | 25/27 | 24/26 | 24/27 |
| Max Gradebility(%) | 20 | 15 | ||||||
| Brake Distance(m) | <=7 | |||||||
| Wheel (Front/Rear) | 4/2 | |||||||
| Tire (Front/Rear) | 10.00-20-16PR 10.00-20-16PR | 12.00-20-18PR 12.00-20-18PR | 12.00-20-18PR 12.00-20-18PR | 12.00-20-18PR 12.00-20-18PR | ||||
| Weight Distribution With Load(Front/Rear)(kg) | 24450/2450 | 24510/2390 | 28250/2750 | 28290/2710 | 28550/3200 | 28610/3140 | 29450/3350 | 29490/3310 |
| Weight Distribution Without Load(Front/Rear)(kg) | 7470/7930 | 7520/7880 | 7880/9620 | 7920/9580 | 7980/9770 | 8020/9730 | 8460/9340 | 8490/9310 |
| Battery Voltage/Capacity(V/Ah) | 2x12/150 | |||||||
| Service Brake | AIR-BOOST TYPY | |||||||
| Parking Brake | SHDE-DRUM TYRE | DISC BRAKE | SHDE-DRUM TYRE | DISC BRAKE | SHDE-DRUM TYRE | DISC BRAKE | SHDE-DRUM TYRE | |
|
Internal Combustion Engine Model |
CA6DE1 | Mitsubishi 6D16TLE2C EUROII | Dachai CA6DE1 | Mitsubishi 6D16-TLE2C EUROII | Dachai CA6DE1 | Mitsubishi 6D16-TLE2C EUROII | Dachai CA6DE1 | Mitsubishi 6D16-TLE2C EUROII |
| Internal Combustion Engine Fuel Tank Capacity(L) | 240 | |||||||
| Transmission Number Of Speed Fwd/Revs type | Mechanical Shift | Electric shift | Mechanical Shift | Electric shift | Mechanical Shift | Electric shift | Mechanical Shift | Electric shift |
| Total Weight(KG) | 15400 | 17500 | 17750 | 17800 | ||||
