Home > Products > Diesel Forklift Truck > 2.5 ton diesel forklift

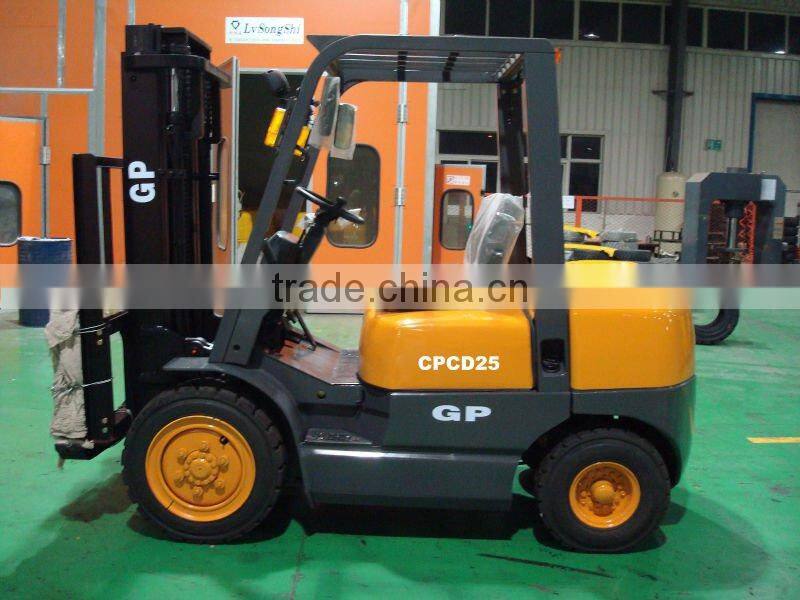

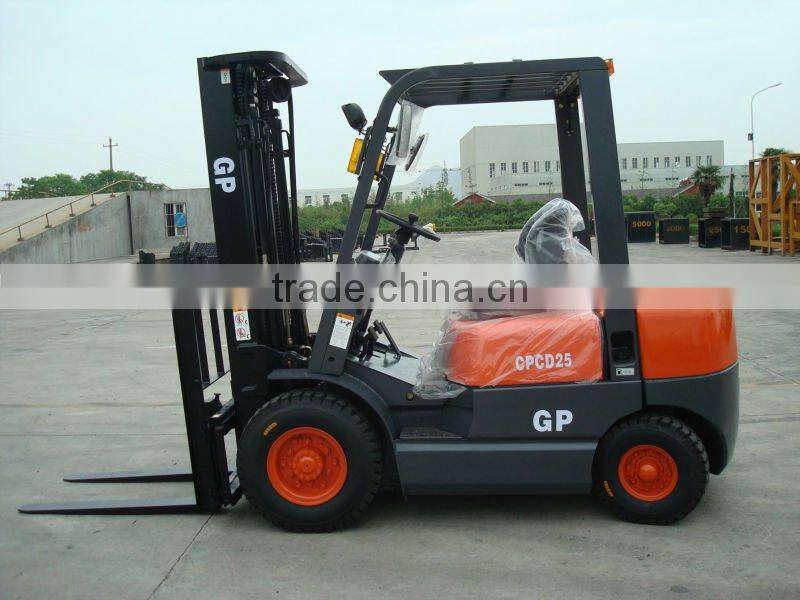

2.5 ton diesel forklift
Negotiable
/ Piece
1 Piece(Min.Order)
- 5000 Piece / Pieces per Month
- T/T
You May Like
Product Details
Condition: | New | Place of Origin: | Shanghai, China | Brand Name: | GP |
Model Number: | CPCD25 | Type: | Other | Rated Loading Capacity: | 2500kg |
Max. Lifting Height: | 3000mm | Min. Lifting Height: | 140mm | Fork Length: | 1070mm |
Fork Width: | 120mm | Overall Dimensions: | 1070*120*40mm | Certification: | CE |
After-sales Service Provided: | Overseas third-party support available |
Product Description
Specifications
1. ISO and CE certificates2.5 ton diesel forklift truck with DEUTZ engine
General | Manufacturer | GP | |||||||
1 | Model | CPCD20 | CPCD25 | CPCD30 | CPCD35 | ||||
CPC20 | CPC25 | CPC30 | CPC35 | ||||||
2 | Rated capacity | kg | 2000 | 2500 | 3000 | 3500 | |||
3 | Load center | mm | 500 | ||||||
4 | Gearbox change speed type | Hydraulic/Mechanical | |||||||
5 | Power type | Diesel | |||||||
6 | Tire type | Front/Rear | Pneumatic | ||||||
7 | Wheels | Front/Rear | 2*2/2 | ||||||
Dimensions | 8 | Lift height | mm | 3000 | |||||
9 | Free lift height | mm | 140 | 145 | 150 | ||||
10 | Fork size | L*W*T | mm | 920*122*40 | 1070*122*40 | 1070*125*45 | 1070*130*45 | ||
11 | Mast tilt angle | Fwd/Bwd | deg | 6/12 | |||||
12 | Overall length (without fork) | mm | 2513 | 2583 | 2698 | 2725 | |||
13 | Overall width | mm | 1150 | 1225 | 1225 | ||||
14 | Mast height fork lowered | mm | 1995 | 2070 | 2160 | ||||
15 | Overall height fork raised | mm | 4030 | 4250 | 3290 | ||||
16 | Overall height (overhead guard) | mm | 2070 | 2090 | |||||
17 | Turning radius (outside) | mm | 2170 | 2240 | 2400 | 2450 | |||
18 | Load distance (centerline of front axle to front face of forks) | mm | 483 | 498 | |||||
19 | Minimum Aisle -90 . stack(Add load length and clearance) | mm | 2640 | 2710 | 2885 | ||||
20 | Wheel base | mm | 1600 | 1700 | |||||
21 | Tread | Front | mm | 970 | 1000 | ||||
22 | Rear | mm | 970 | ||||||
23 | Min. Under-clearance | Bottom of mast | mm | 110 | 135 | 145 | |||
24 | Bottom of frame | mm | 115 | 140 | 140 | ||||
Performance | 25 | Speed | Travel Max. | With load | km/h | 17 | 18 | ||
26 | Without load | km/h | 19.5 | 19.5 | |||||
27 | Lifting | With load | km/h | 570 | 450 | 380 | |||
28 | Without load | km/h | 600 | 500 | 450 | ||||
29 | Lowering | With load | km/h | 450 | 420 | ||||
30 | Without load | km/h | 550 | 500 | 460 | ||||
31 | Max. Drawbar pull | With/without load | kg | 1250/850 | 1250/850 | 1100/1000 | 1304/1190 | ||
32 | 1650/850 | 1650/850 | 1350/1000 | 1696/1190 | |||||
33 | Max.Gradeability | With/without load | % (fan) | 20/20 | 17/18 | 15/18 | 15/18 | ||
21/22 | 18/19 | 19/20 | 15/18 | ||||||
Weight | 34 | Service weight | kg | 3410 | 3770 | 4370 | 4750 | ||
35 | Weight distribution | With load | Front | kg | 4730 | 5480 | 6455 | 7320 | |
36 | Rear | kg | 590 | 700 | 825 | 930 | |||
37 | Without load | Front | kg | 1520 | 1465 | 1720 | 2040 | ||
38 | Rear | kg | 1800 | 2215 | 2560 | 2710 | |||
Tyre | 39 | Tyre | Size | Front | 7.00-12-12PR | 28*9-15-12PR | |||
40 | Rear | 6.00-9-10PR | 6.50-10-10PR | ||||||
Brake | 41 | Brake | Service | Hydraulic-Foot pedal | |||||
42 | Parking | Mechanical-Hand lever | |||||||
Transmission | 43 | Battery | Voltage / Capacity | V/AH | 12/100 | ||||
44 | Internal combustion engine | Model | ISUZU / YANMAR / NISSAN / XINCAI | ||||||
45 | Rated horsepower | Kw/rpm | 37/2650 | 45/2550 | |||||
46 | Rated torque | N.m/rpm | 148/1800 | 195/1600 | |||||
47 | Number of cylinder | 4 | |||||||
48 | Displacement | cc | 2.54 | 3.168 | |||||
49 | Fuel tank capacity | lit | 60 | 70 | |||||
50 | Transmission | Type | Hydraulic/Mechanical | ||||||
51 | Shift (Fwd/Rvs) | 1/1 (2/2) | |||||||
52 | Work pressure | Mpa | 17.5 |
