40 Ton mast mobile container crane for transportation
- 150 Pair / Pairs per Month
- Shanghai port China
- Credit Card
- Cleanroom Gantry Crane for Optical/Semiconductor/Pharmaceutical
- Winch hoist
- Tire gantry crane
- Upper rotary rail mounted container gantry crane
- New type double girder gantry crane
- Zpmc Parts for Sts Cranes and Rtgs, Brakes, Linings, Couplings, Filters, Trolleys, Supporting Rollers, Idlers, Pulleys, Twisted Wires, Short Rails
Product Details
Condition: | New | Application: | container loading | Rated Loading Capacity: | 40 Ton |
Rated Lifting Moment: | 1.45m | Max. Lifting Load: | 30ton | Max. Lifting Height: | 4660mm |
Span: | 4500mm | Place of Origin: | Shanghai, China | Brand Name: | GP |
Model Number: | BSJD400T | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

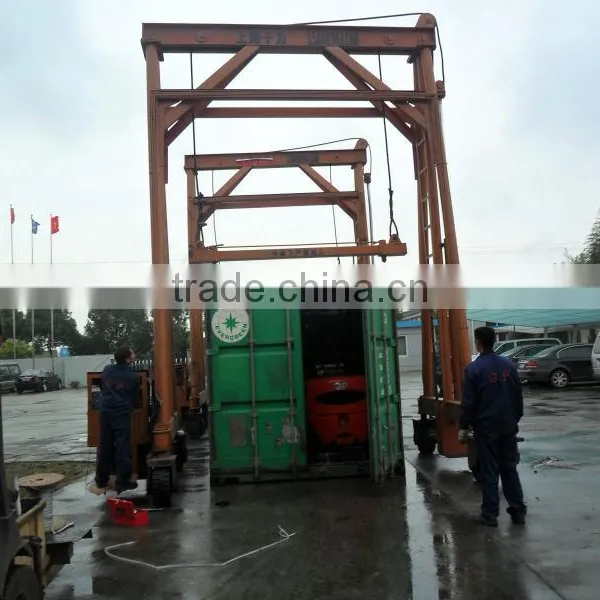

Mast mobile container crane
Product Information:
BSJD360T and BSJD400T mast mobile container crane is specially designed for small and medium size freight yard, her advantage is the lowest operating cost among all kinds of container cranes. This equipment is powered with multi-cylinder diesel engine, with good features of low noise and low vibration. Lifting and walking are both controlled by hydraulic system, driving by hydraulic motor. Diameter of lifting cylinder is 200mm, the more the loading capacity, the smaller the pressure of lifting system, it is absolutely steady and safe when lifting and declining, and with high efficiency of loading or unloading. Each equipment is composed of two cranes, each crane is an independent motor unit, each motor unit is two-wheel driving(2WD), four-wheel steering(4WD), the max. turning angle is 90 degrees, can steer and shift at any angle. With small turning radius, it can be operated flexiblely. And the two motor units both can move freely, the space between also can be adjusted at will, it can be used for lifting various containers. This equipment should be used on flat, hardening and no pothole container yards. It is applicable to load or unload for logistics companies, warehouses, piers, container yards, freight yards, etc. It is a super quality and competitive price, convenient and practical container lifting equipment.
Specifications:
Specifications of mast mobile container crane | |||
Model No. | BSJD300T | BSJD360T | BSJD400T |
Load capacity | 30 Ton | 36 Ton | 40 Ton |
Max.lifting height | 4660mm | 4660mm | 4660mm |
Max.lifting speed | 0.065m/s | 0.065m/s | 0.065m/s |
Engine type | Xinchang C490 engine | Xinchang C490 engine | Xinchang C490 engine |
Engine power/rotate speed | 22KW / 2700r/min | 22KW / 2700r/min | 22KW / 2700r/min |
Max.torque/rotate speed | 70.2/1960~2240[Nm/r min] | 70.2/1960~2240[Nm/r min] | 70.2/1960~2240[Nm/r min] |
Max.travel speed | 3.5km/h | 3.5km/h | 3.5km/h |
Diameter of lifting cylinder | 203mm | 203mm | 203mm |
Pressure of lifting system | 10Mpa | 10Mpa | 10Mpa |
Diameter of steering cylinder | 75mm | 75mm | 75mm |
Min.turning radius | 4500mm | 4500mm | 4500mm |
Pressure of steering system | 15Mpa | 15Mpa | 15Mpa |
Torque of hydraulic motor | 949Nm | 949Nm | 949Nm |
Rotate speed of hydraulic motor | 6~400r/min | 6~400r/min | 6~400r/min |
Diameter of drive wheel | 450mm | 450mm | 450mm |
Min.under-clearance | 80 | 80 | 80 |
Suitable carriage height | 1.45m/1.75m | 1.45m/1.75m | 1.45m/1.75m |
Overall length | 4900mm | 4900mm | 4900mm |
Overall width | 2500mm | 2500mm | 2500mm |
Overall height | 6600mm | 6600mm | 6600mm |
Total weight | 7.0 Ton | 7.5T | 8.0T |
