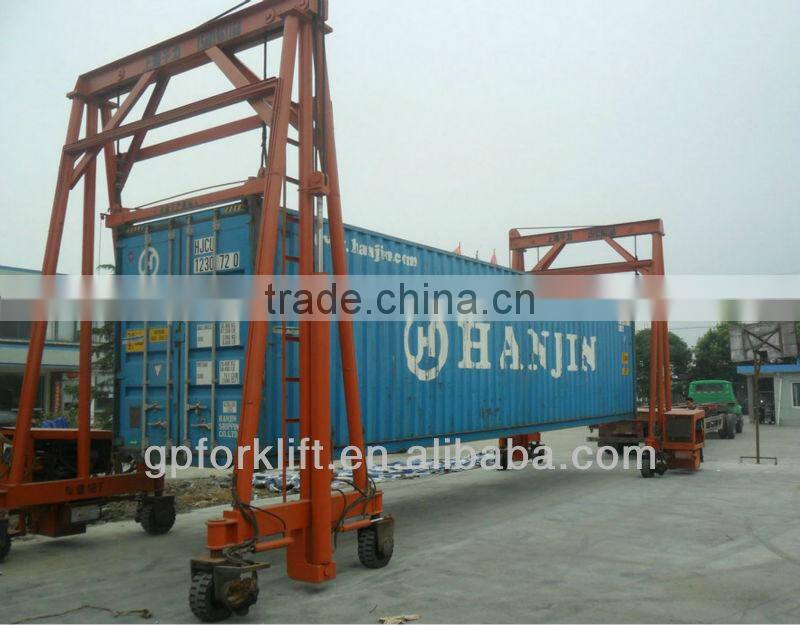

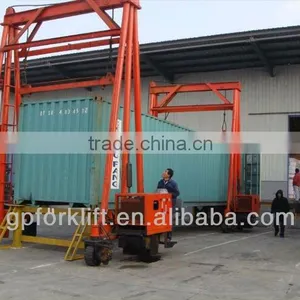

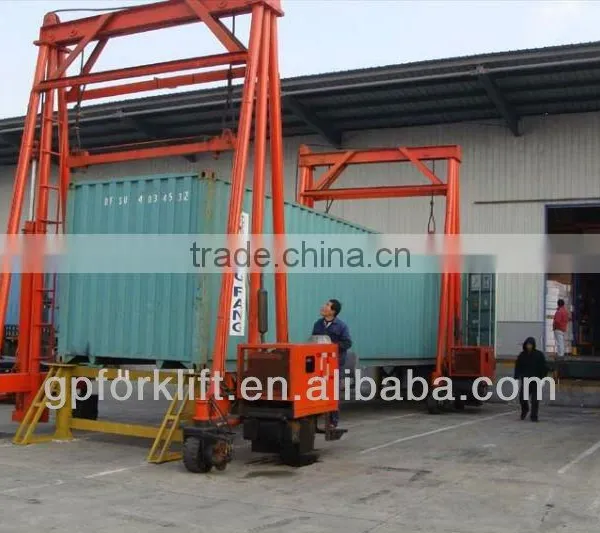

36Ton Mast Mobile Container Crane

Items

Specifications

Load capacity

36T

Max.lifting height

4700mm

Max.lifting speed

0.065m/s

Total weight

7.5T

Engine type

NZ3850/490BPG

Engine power/rotate speed

45.6/2200KW/r/min

Max.torque/rotate speed

70.2/1960~2240[Nm/r min]

Max.travel speed

7.5km/h

Diameter of lifting cylinder

203mm

Pressure of lifting system

10Mpa

Diameter of steering cylinder

75mm

Min.turning radius

4500mm

Pressure of steering system

15Mpa

Torque of hydraulic motor

949Nm

Rotate speed of hydraulic motor

6~400r/min

Diameter of drive wheel

450mm

Min.under-clearance

80

Suitable carriage height

1.45m/1.75m

Overall length

4900mm

Overall width

2500mm

Overall height

6600mm
