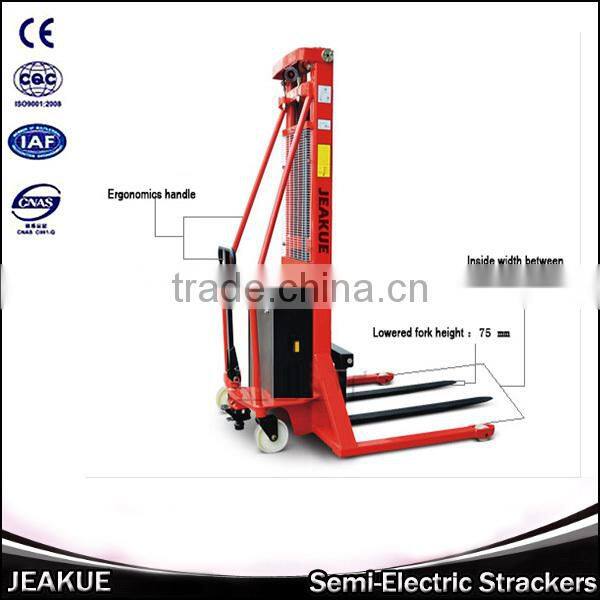

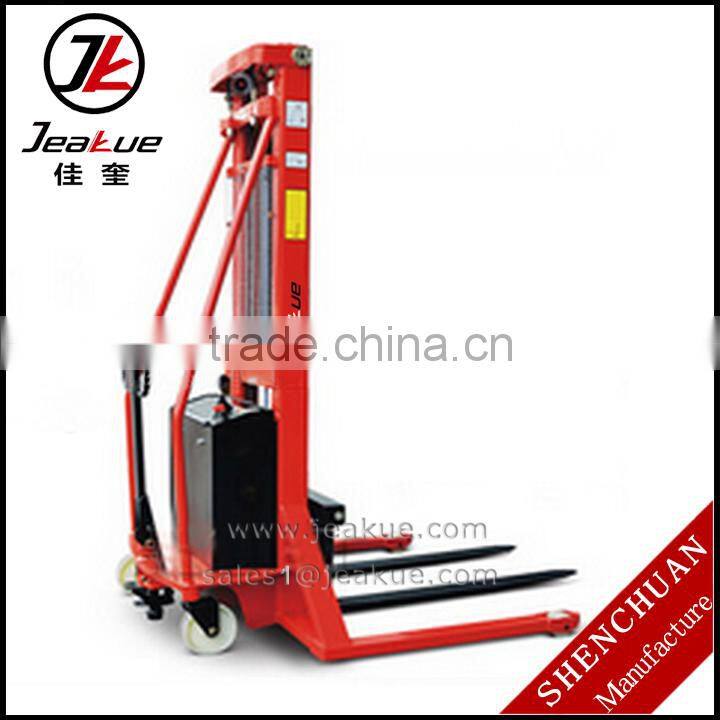

2015 Newest 1.5Ton Semi Electric Stacker With Adjustable Fork

2015 Newest 1.5Ton Semi Electric Stacker With Adjustable Fork photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
JEAKUE
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shanghai, China
Brand Name JEAKUE
Model Number JC-SES15
Power Souce AC Motor
Rated Loading Capacity 1500kgs Stacker
Max. Lifting Height 3500/4000mm One-level Gantry of Semi-electric Stacker
Fork Length 1150mm Stacker
Fork Width 190-800mm Stacker
Overall Dimensions 1850*1500*2270mm
Certification CE,CQC,ISO9001,UL
After-sales Service Provided Engineers available to service machinery overseas

2015 Newest 1.5Ton Semi Electric Stacker With Adjustable Fork







2015 Newest 1.5Ton Semi-Electric Stacker With Adjustable Fork

2015 Newest 1.5Ton Semi Electric Stacker With Adjustable Fork



 2015 Newest 1.5Ton Semi Electric Stacker With Adjustable Fork





ModelJK8469JK8470
Capacitykg15001500
lifting heightmm75-350075-4000
Fork lengthmm11501150
load centermm400400
Turning radiusmm23002300
Outside width between legsmm15001500
Inside width between legsmm13001300
Outside width between forksmm190-800190-800
Inside width between forksmm10-62010-620
Lifting speedmm/s≥50≥50
Lowering speed ControllableControllable
Lifting motor 12V/1600W12V/1600W
Battery 12V/120Ah12V/120Ah
Charger 220V/12V220V/12V
Overall Lengthmm18501850
Overall Widthmm15001500
Overall Heightmm22702520
Front wheel diameter?mm100100
Rear wheel diametermm200200
Self weightkg550580

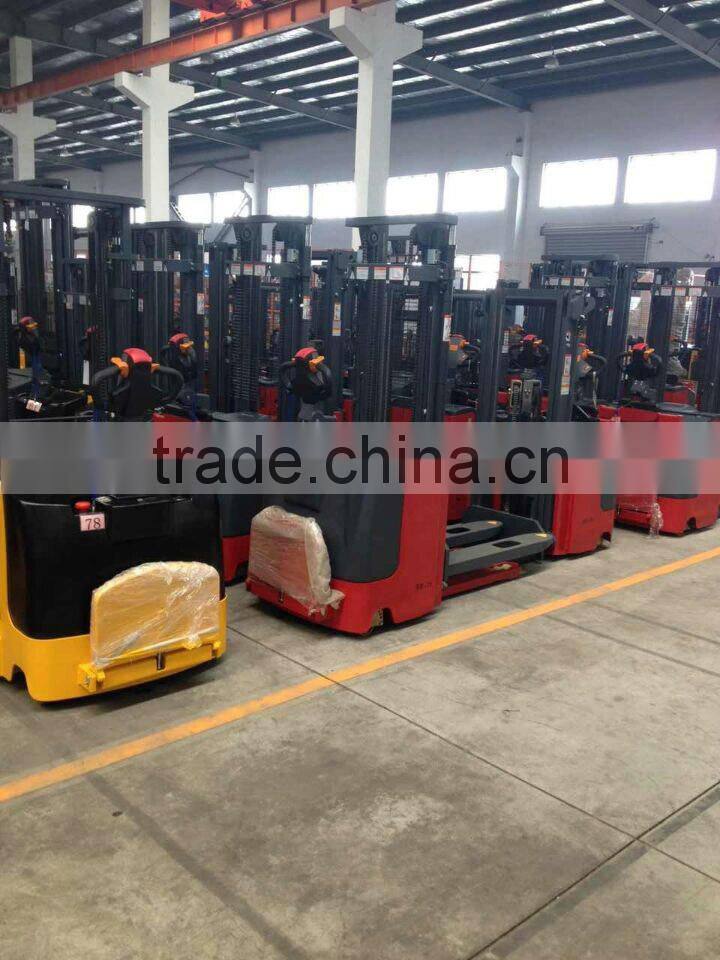

Exhibition show

 2015 Newest 1.5Ton Semi Electric Stacker With Adjustable Fork2015 Newest 1.5Ton Semi Electric Stacker With Adjustable Fork







Company Information



Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the past 10 years, we have been always adhering to the idea of “all service to meet customers’ needs”, breaking through technology, manufacturing the finest products, improving service with our globalization vision.

We have developed a variety of international advanced products joint with world-renowned industrial equipment manufacturers, such as: ABB, ZF, BOSCH, CAT, TEREX, and a variety of sophisticated products with independent intellectual property patents together with well-known Chinese universities in the area of machinery, electronics, physical mechanics etc.

Shenchuan Heavy Industrial has become one-stop storage and logistics solution leader and the most powerful supplier of material handling integrated systems. We have five divisions: Logistics Systems Division (sub-brand JEAKUE); Engineering Machinery Division (sub-brand JEADE); Agricultural Machinery Division (sub-brands JEATN); Construction Machinery Division (sub-brands JEADA); Mining Machinery Division (sub-brand JEAYO).
2015 Newest 1.5Ton Semi Electric Stacker With Adjustable Fork2015 Newest 1.5Ton Semi Electric Stacker With Adjustable Fork2015 Newest 1.5Ton Semi Electric Stacker With Adjustable Fork
We will provide comprehensive and multidimensional supply chain service for global customers with our most optimized scheme, best quality products, most attentive service and most competitive price, to reduce the maximum supply chain cost for customers and increase the production efficiency.
