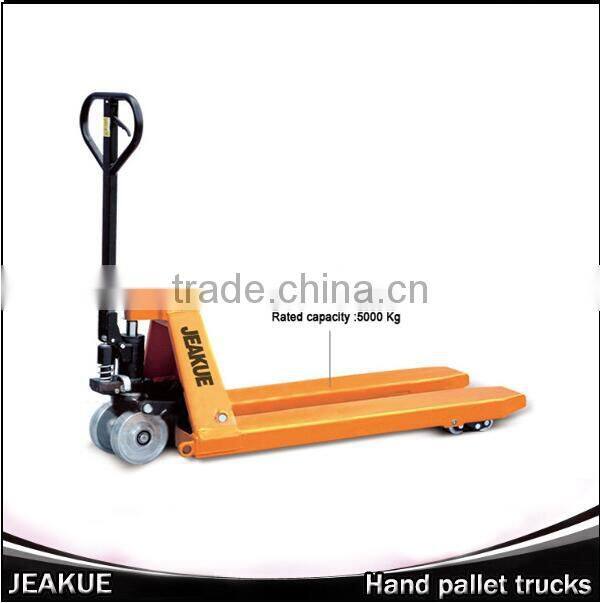

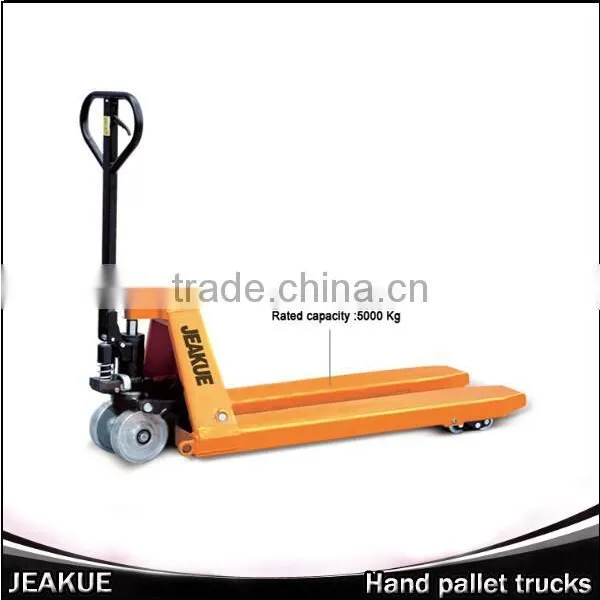

Heavy Duty Hand Pallet Jack 5000kg

Heavy Duty Hand Pallet Jack 5000kg thumbnail-1
Heavy Duty Hand Pallet Jack 5000kg thumbnail-2
Heavy Duty Hand Pallet Jack 5000kg thumbnail-3
Heavy Duty Hand Pallet Jack 5000kg thumbnail-4
Heavy Duty Hand Pallet Jack 5000kg thumbnail-5
Heavy Duty Hand Pallet Jack 5000kg photo-1
Heavy Duty Hand Pallet Jack 5000kg photo-2
Heavy Duty Hand Pallet Jack 5000kg photo-3
Heavy Duty Hand Pallet Jack 5000kg photo-4
Heavy Duty Hand Pallet Jack 5000kg photo-5
US$ 150 - 500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
JEAKUE
Contact Supplier Request Quote Chat Now
Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name JEAKUE
Model Number JA-HP50
Type Manual Pallet Truck
Rated Loading Capacity 5000kg
Max. Lifting Height 200mm Hand Pallet Truck
Min. Lifting Height 90mm Hand Pallet
Fork Length 1150mm
Fork Width 550/685mm Hand Pallet Truck
Certification CE
After-sales Service Provided Engineers available to service machinery overseas






It’s safe and beautiful, sturdy and durable, it has the characteristics of handiness and flexible;
.It could be loaded by only on operator and apply to a solo operation;
.It’s mainly used in the occasion such as factory, warehouse and wharf, ect.
.Configuration: fast lifting oil cylinder.

 Heavy Duty Hand Pallet Jack 5000kgHeavy Duty Hand Pallet Jack 5000kgHeavy Duty Hand Pallet Jack 5000kgHeavy Duty Hand Pallet Jack 5000kgHeavy Duty Hand Pallet Jack 5000kg



Item No.

JK8048

Rated lading capacity

kg

5000

Min height of pallet fork

mm

90

Max height of pallet fork

mm

200

Length of single pallet fork

mm

1150

Width of single pallet fork

mm

580/680

Turning wheels(big wheel)

mm

190x50

Turning wheels(small wheel)

mm

90x68

Tripod

mm

6

Push rob

mm

Square steel 30x30

Diameter of oil cylinder piston

mm

40

Size of pallet fork

mm

180x60

Thickness of plate

mm

Standing plate16  top plate 4

Thickness of stiffening plate

mm

16









Exhibition show

 Heavy Duty Hand Pallet Jack 5000kg

Heavy Duty Hand Pallet Jack 5000kg











Certification Show













Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the past 10 years, we have been always adhering to the idea of “all service to meet customers’ needs”, breaking through technology, manufacturing the finest products, improving service with our globalization vision.

 Heavy Duty Hand Pallet Jack 5000kg

We have developed a variety of international advanced products joint with world-renowned industrial equipment manufacturers, such as: ABB, ZF, BOSCH, CAT, TEREX, and a variety of sophisticated products with independent intellectual property patents together with well-known Chinese universities in the area of machinery, electronics, physical mechanics etc.

  Heavy Duty Hand Pallet Jack 5000kg

We will provide comprehensive and multidimensional supply chain service for global customers with our most optimized scheme, best quality products, most attentive service and most competitive price, to reduce the maximum supply chain cost for customers and increase the production .
