500kg Movable Electric Lifting Elevator

           Movable Electric Lift Table

Rated load:500kg
Min. height: 460mm
Max. height: 1165mm
Platform size :   1020×610  mm

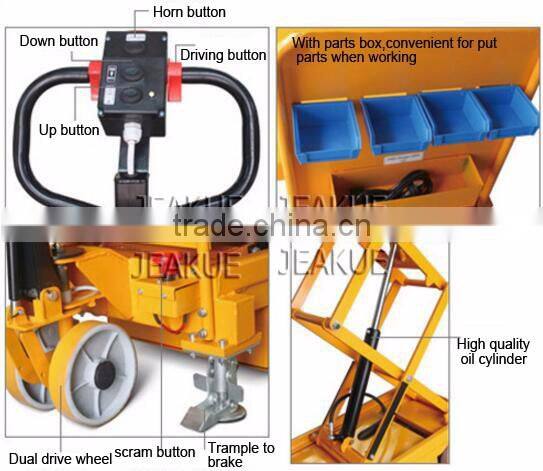

• Practical, convenient

• Special heavy design

• Easily lift cargo with pedal hydraulic pump

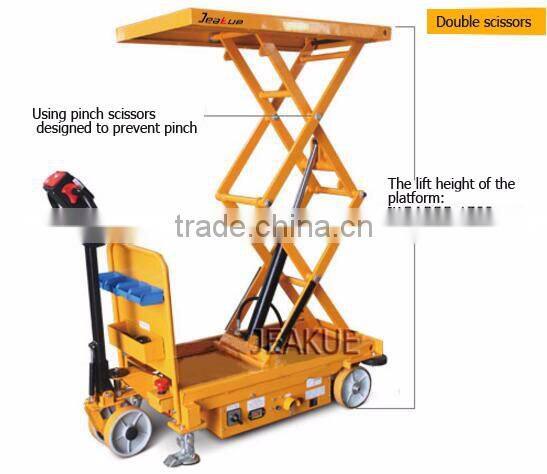

• New designed scissor structure ensures durability and stability

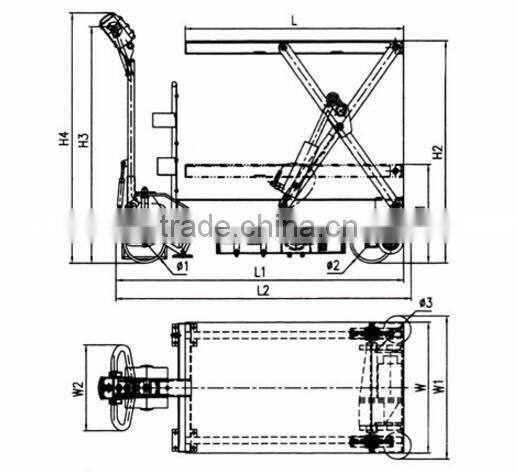

Model No.		JK01625	JK01626	JK01627	JK01628
Type		Single Scissor	Double Scissor	Single Scissor	Double Scissor
Rate Capacity	kg	500	500	800	800
Length of Platform	mm	1020	1020	1020	1020
Width of the Platform	mm	610	610	610	610
Height of the Platform(close)	mm	460	465	460	520

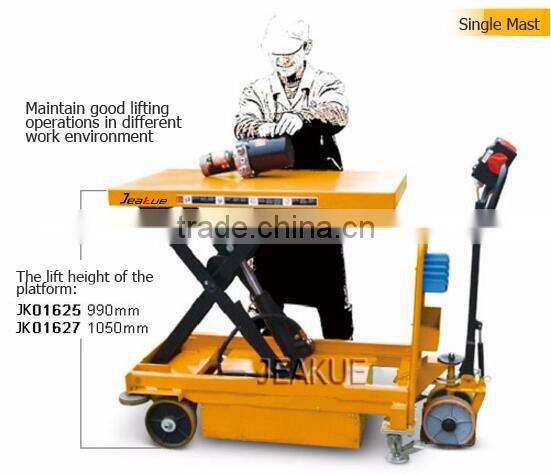

Height of the Platform(Lift)	mm	990	1700	1050	1850
Over height of the handle	mm	1165	1165	1165	1165
Overall length	mm	1380	1380	1380	1380
overall width	mm	667	667	667	667
Service weight	kg	203	250	241	293

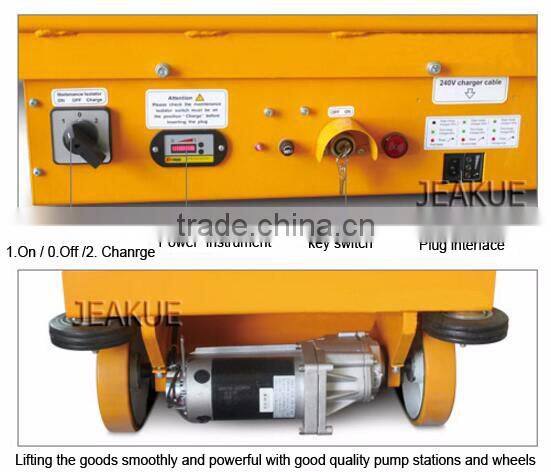

Battery		24V/70AH	24V/70AH	24V/70AH	24V/70AH
power of motor(driving wheel)	W	500	500	500	500
power of motor(pump station)	W	800	800	800	800



Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the past 10 years, we have been always adhering to the idea of “all service to meet customers’ needs”, breaking through technology, manufacturing the finest products, improving service with our globalization vision.

We have developed a variety of international advanced products joint with world-renowned industrial equipment manufacturers, such as: ABB, ZF, BOSCH, CAT, TEREX, and a variety of sophisticated products with independent intellectual property patents together with well-known Chinese universities in the area of machinery, electronics, physical mechanics etc.

We will provide comprehensive and multidimensional supply chain service for global customers with our most optimized scheme, best quality products, most attentive service and most competitive price, to reduce the maximum supply chain cost for customers and increase the production .
