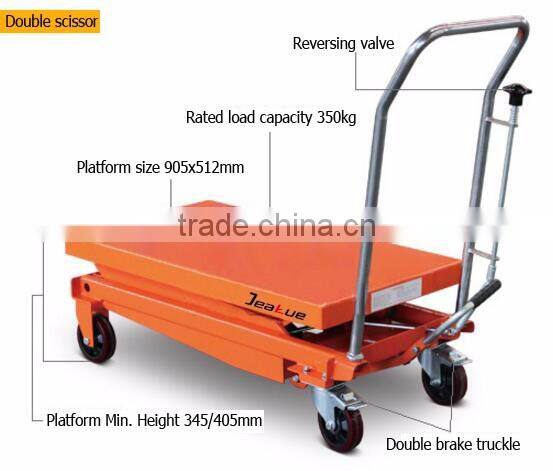

Movable Double Scissor Lift Table

Movable Double Scissor Lift Table

Rated load:350kg
Min. height: 405mm
Max. height: 1300mm
Platform size :   905×512 mm

• Practical, convenient

• Special heavy design

• Easily lift cargo with pedal hydraulic pump

• New designed scissor structure ensures durability and stability







Model		JK01614	JK01612	JK01615	JK01616	JK01624	JK01613	JK01617	JK01623

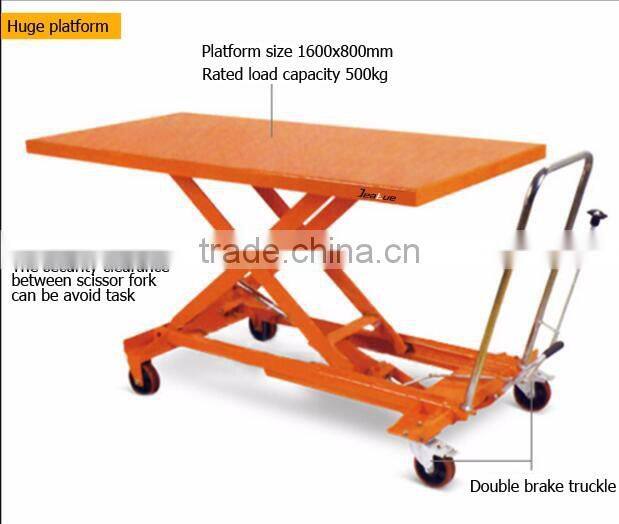

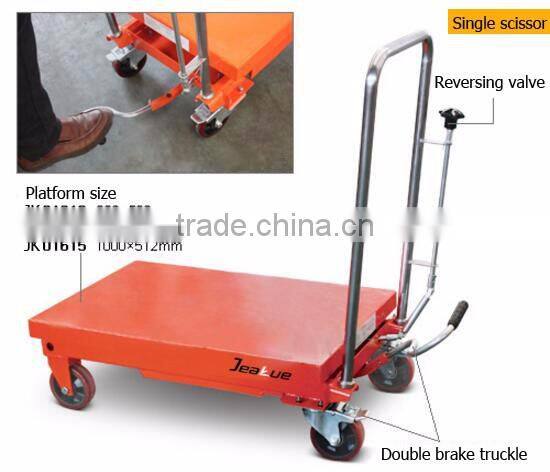

Type		Double scissor	Single scissor				Folding handle		Big platform
Load capacity	kg	350	300	1000	500	750	300	500	500
Max. platform height	mm	1300	900	1000	900	1000	900	900	900
Min. platform height	mm	345/405(option)	270/380(option)	410	280/390(option)	410	270	280	280/380(option)
Platform size	mm	905×512	820×500	1000×512	820×500	1000×512	820×500	820×500	1600×800
		×55	×50	×55	×55	×55	×50	×55	×55
Overall length	mm	1170	1070	1350	1070	1350	1070	1070	1830
Handle length	mm	970	970	970	970	970	970	990	950
Service weight	kg	103	65	113	75	107	66	79	125
