Economical Foot Pedal Scissor Lift Table

            Economical foot pedal scissor lift table

Rated load:500kg
Min. height: 390mm
Max. height: 910mm
Platform size :   852×502  mm

• Practical, convenient

• Special heavy design

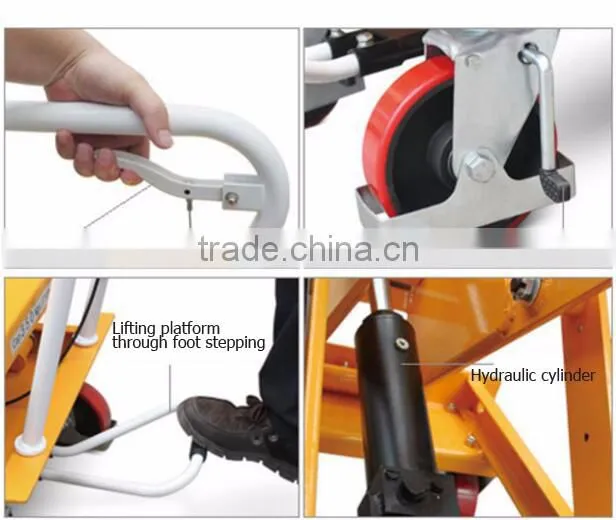

• Easily lift cargo with pedal hydraulic pump

• New designed scissor structure ensures durability and stability

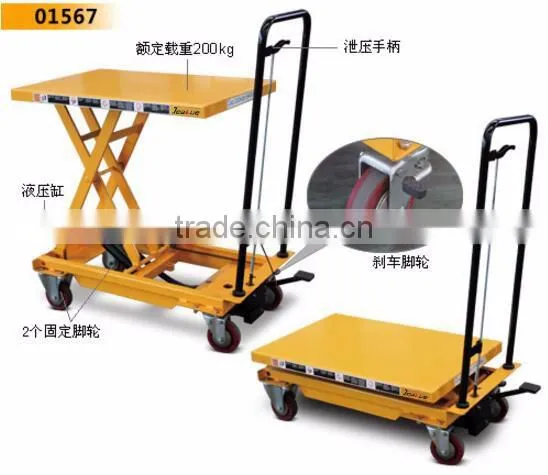

Model		JK01567	JK01568	JK01569	JK01570	JK01571

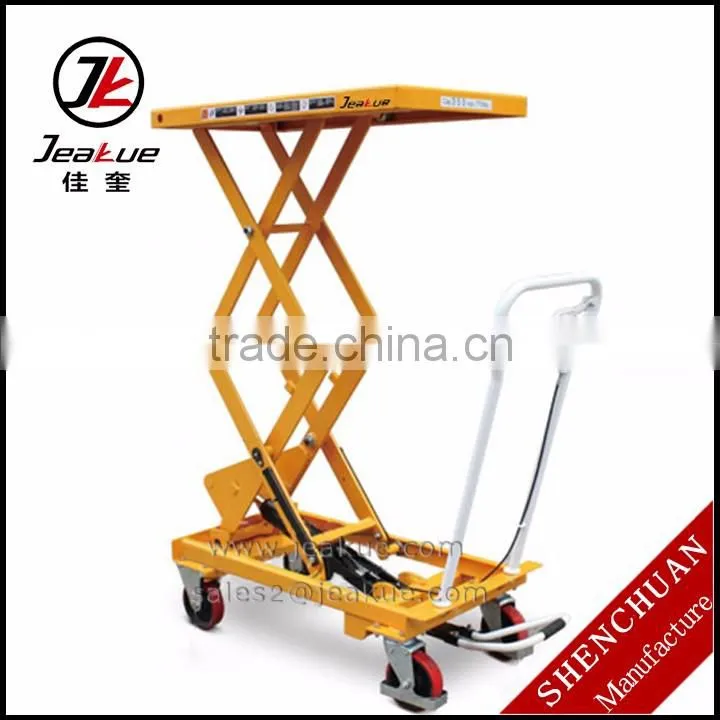

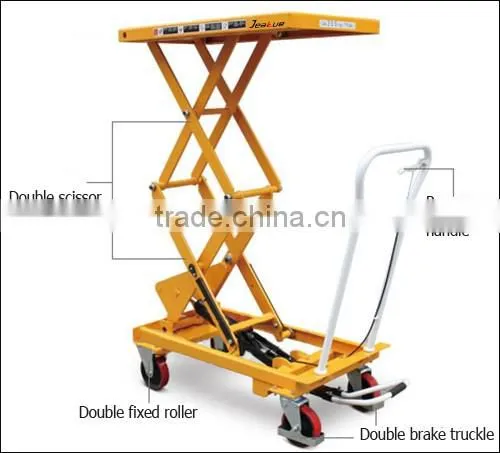

Type		Single scissor				Double scissor

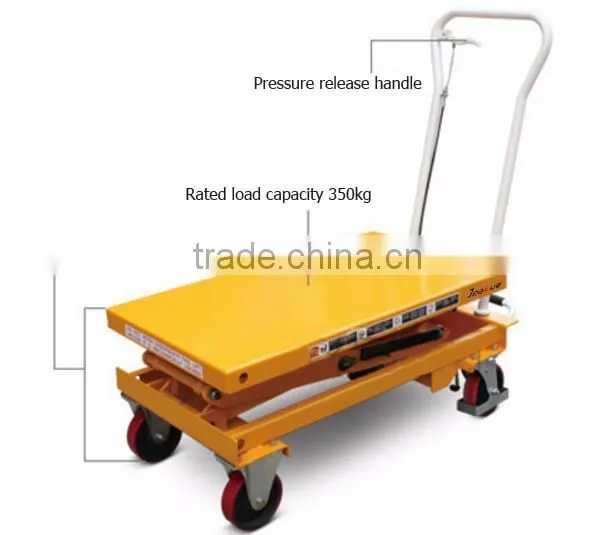

Load capacity	kg	200	300	500	800	350
Platform size( L×W)	mm	700×450	852×502	852×502	920×520	920×520
Min. platform height	mm	265	330	390	442	435
Max. platform height	mm	755	910	910	1000	1500
Handle height	mm	980	1100	1100	1130	1130
Dimension (L×W)	mm	870×450	1050×502	1050×502	1170×520	1170×520
Net weight	kg	44	74	81	114	125

























Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the past 10 years, we have been always adhering to the idea of “all service to meet customers’ needs”, breaking through technology, manufacturing the finest products, improving service with our globalization vision.

We have developed a variety of international advanced products joint with world-renowned industrial equipment manufacturers, such as: ABB, ZF, BOSCH, CAT, TEREX, and a variety of sophisticated products with independent intellectual property patents together with well-known Chinese universities in the area of machinery, electronics, physical mechanics etc.

We will provide comprehensive and multidimensional supply chain service for global customers with our most optimized scheme, best quality products, most attentive service and most competitive price, to reduce the maximum supply chain cost for customers and increase the production .
