China Brand CE Certificated 1T Lift Machine

            China brand CE certificated 1T lift machine

Rated load:1000kg
Min. height: 430mm
Max. height: 1220mm
Platform size :   1200×800  mm

• Practical, convenient

• Special heavy design

• Easily lift cargo with pedal hydraulic pump

• New designed scissor structure ensures durability and stability







Model No.	Type	Rate Capacity	Platform height(Min/Max)	Platform Size	Overall Size	Rise/Down time	Dia.of  wheel	Handle Height	Net weight
		kg	mm	(L×W)mm	(L×W)mm	s	mm	mm	kg

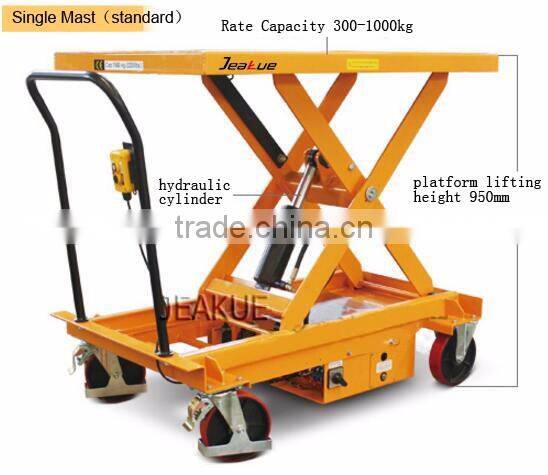

JK01551	Single Mast	300	450/950	1010×520	1185×520	8/8	150	1185	140
JK01552		500	450/950	1010×520	1185×520	8/8	150	1185	148
JK01553		750	450/950	1010×520	1260×520	8/8	150	1185	154
JK01554		1000	480/950	1010×520	1260×520	8/8	150	1185	169

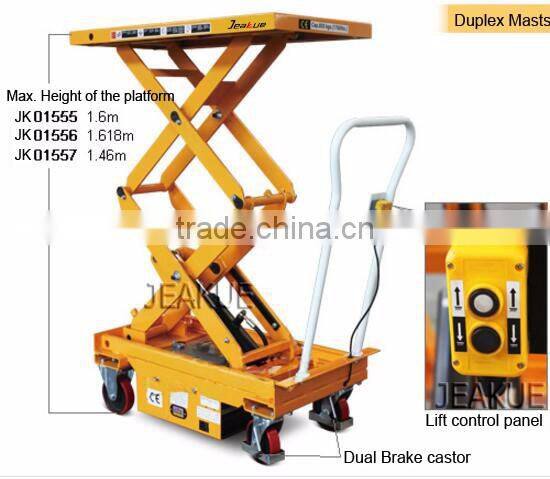

JK01555	Duplex Mast	300	495/1600	1010×520	1260×520	8/8	150	1185	183
JK01556		500	495/1618	1010×520	1260×520	8/8	150	1185	198
JK01557		800	510/1460	1010×520	1260×520	8/8	150	1185	176

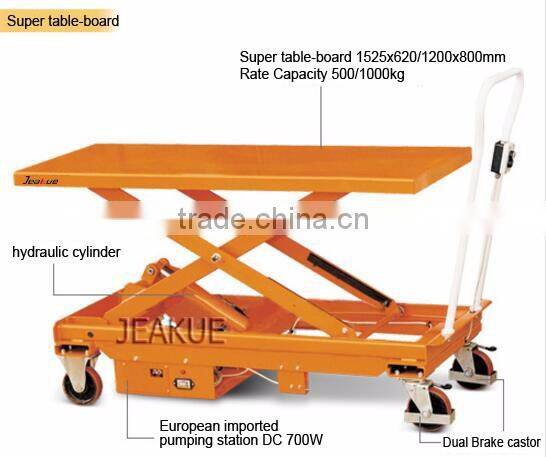

JK01558	Big Platform	500	440/1150	1525×620	1780×620	8/8	150	1185	215
JK01559		500	430/1220	1200×800	1390×800	8/8	150	1185	220
JK01560		1000	430/1220	1200×800	1390×800	8/8	150	1185	225
