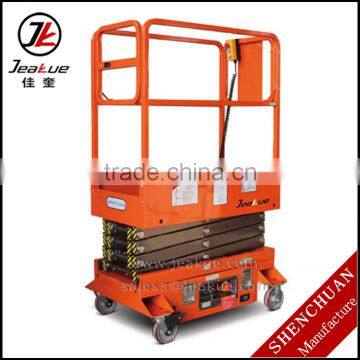

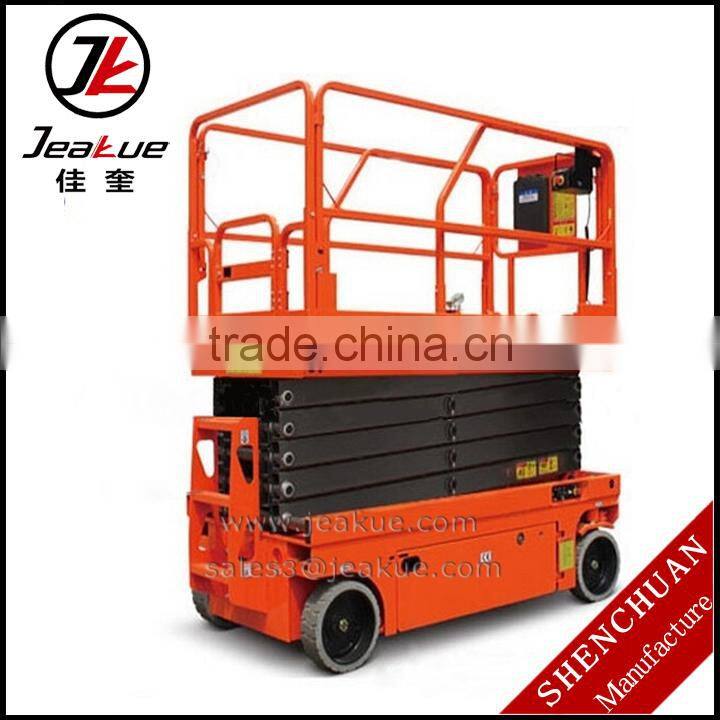

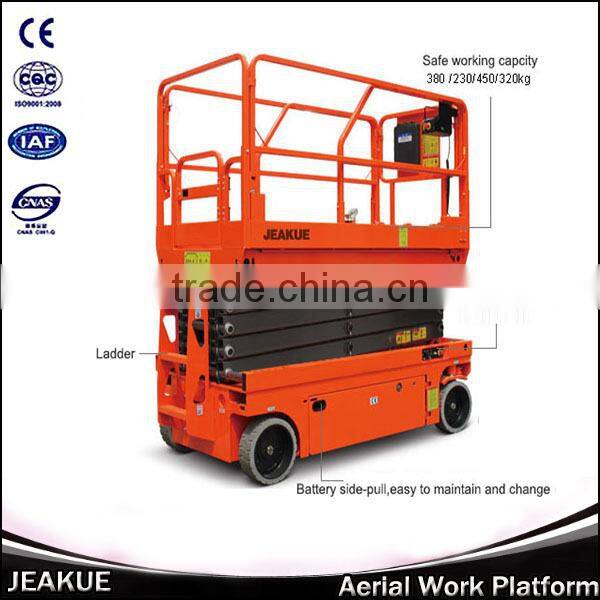

Full Electric Self propelled Scissor Aerial electric Work Platform
Full Electric Self propelled Scissor Aerial electric Work Platform
Electric Motor
1. Stretched pedal can make platform quickly spread to the operating point
2. Four models are available with the maximum working height at 8m to 12m
3. Fold-down rail narrowed the equipment volume
4. The minimum turning radius (round 0 m) and the compact design is convenient for working in narrow space
5. 25%gradeability when driving on slopes
6. Rotary chassis is convenient for maintenance.
7. Fault code automatic display and it is convenient for maintenance
Standard Configuration
1. proportional control 2. Automatic pit protection 3. Closed platform
4. All travelling 5. Non-trace tires 6. 4X2 Drive
7. Auto brake System 8. Emergency descent system 9. Emergency Stop Button
10. Anti-explosion pipe system 11. Fault diagnosis system 12. Slope protection system
13. Buzzer 14. Horn 15. work schedule
16. Safety maintenance support bar 17. Standard transportation forklift
18. Folded rail 19. Stretched platform
20. Charging protection system 21. Strobe lamp
Optional Configuration
1. Overweight sensor 2. AC power supply connected platform
3. Platform working lamp 4. Air duct connected platform
Model | JK8848 | JK8849 | JK8850 | JK8851 | JK8852 | |
| Max number of people | kg | 380 | 230 | 450 | 320 | 230 |
| Extend platform Rated capacity | kg | 113 | 113 | 113 | 113 | 113 |
| Max number of people | 2 | 2 | 2 | 2 | 2 | |
| Max working height | mm | 8000 | 10000 | 10000 | 12000 | 14000 |
| Max platform height | mm | 6000 | 8000 | 8000 | 10000 | 12000 |
| Overall length | mm | 2480 | 2480 | 2480 | 2480 | 2480 |
| Overall width | mm | 810 | 810 | 1150 | 1150 | 1150 |
| Over height(rail unfold) | mm | 2210 | 2340 | 2340 | 2470 | 2590 |
| Over height(rail fold) | mm | 1750 | 1880 | 1860 | 1990 | 2110 |
| Working platform size | mm | 2270×810 | 2270×810 | 2270×1120 | 2270×1120 | 2270×1120 |
| Platform extend size | mm | 900 | ||||
| Ground clearance (stowed) | mm | 100 | ||||
| Ground clearance(lifting) | mm | 19 | ||||
| Wheelbase | mm | 1870 | ||||
| Drive Motor | v/kw | 24/1.5 | ||||
| Lifting Motor | v/kw | 24/3 | ||||
| Drive speed(stowed) | km/h | 4.0 | ||||
| Drive speed(lifting) | km/h | 0.8 | ||||
| Min turning radius(inside) | mm | 0 | 0 | 0 | 0 | 0 |
| Min turning radius(outside) | mm | 2190 | 2190 | 2220 | 2220 | 2330 |
| Raising/Falling speed | sec | 22/34 | 22/40 | 36/33 | 54/42 | 84/38 |
| Battery | v/Ah | 4×6/210 | ||||
| Charger | v/A | 24/25 | ||||
| Maximum gradeability | 25% | |||||
| Max angle | 2-3° | |||||
| Tire | mm | Φ381×127 | ||||
| NW | kg | 1950 | 2100 | 2300 | 2580 | 2740 |
Product configuration table
| Name | Origin | English Brand |
| Hydraulic driving wheels | USA | Fairfield |
| controller | England | PG |
| handle | USA | Access |
| battery jar | Korea | 3D-210 |
| Charger | China |
Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the past 10 years, we have been always adhering to the idea of “all service to meet customers’ needs”, breaking through technology, manufacturing the finest products, improving service with our globalization vision.
We have developed a variety of international advanced products joint with world-renowned industrial equipment manufacturers, such as: ABB, ZF, BOSCH, CAT, TEREX, and a variety of sophisticated products with independent intellectual property patents together with well-known Chinese universities in the area of machinery, electronics, physical mechanics etc.
We will provide comprehensive and multidimensional supply chain service for global customers with our most optimized scheme, best quality products, most attentive service and most competitive price, to reduce the maximum supply chain cost for customers and increase the production efficiency.
