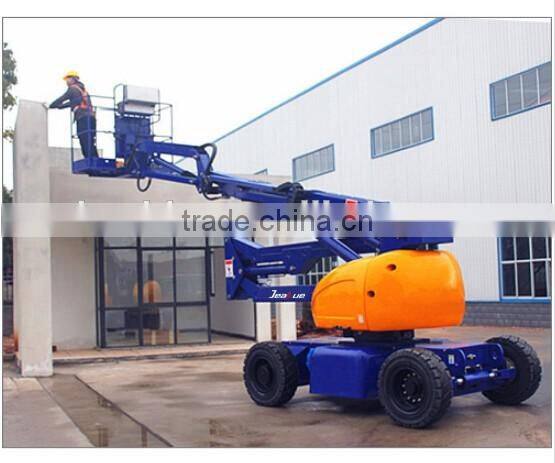

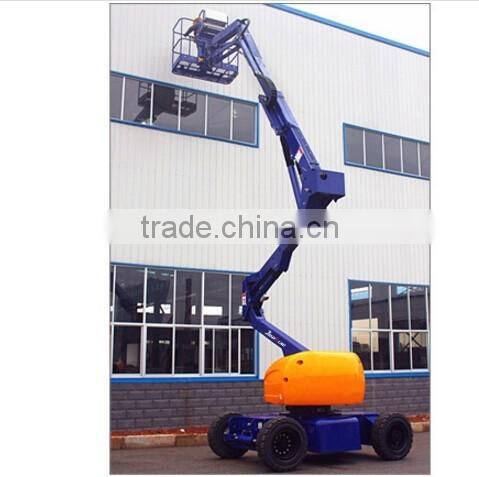

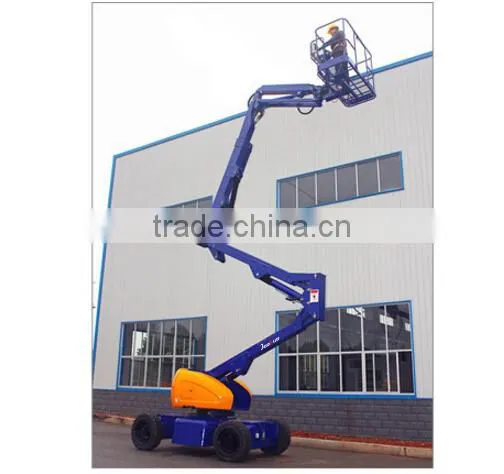

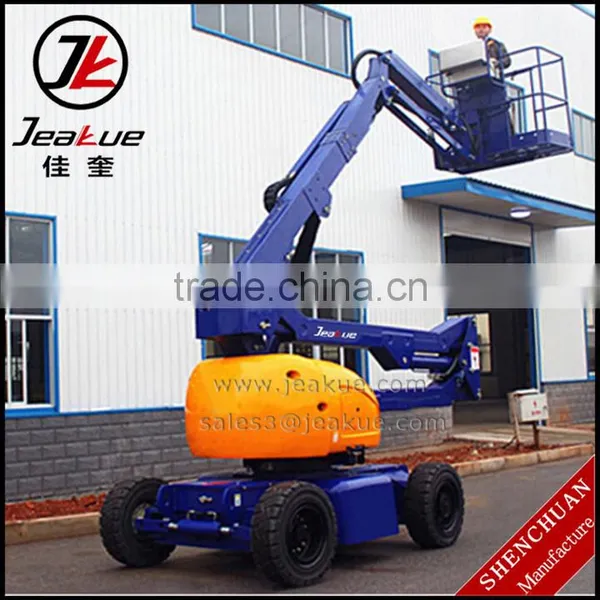

20m Electric Crank Arm Aerial Work Platform

· With automatic walking function, it is possible under different working conditions, fast, slow walk, only one person may operate the machine at the time of the completion of the lift aerial work continuously, forward, backward, turn, rotation and other movements, more traditional hydraulic platform greatly improving the work efficiency, reduce labor intensity and the number of operating personnel.

• All actions are on the table with the handle control operation, the motor is continuously variable, effectively extending the life of the battery and the motor, the motor only consumes energy at work. Multi-motor structure, walking, lifting, respectively, performed by different motors. Boom in any position, work platforms are safe walking, walking speed with the lift height increases.

· Reverse current brake and mechanical parking brake, the operation is simple, safe and reliable, the service brake automatically compensate for the brake disc brake.

Intelligent charging system, using automatic charger can automatically complete the whole process of charging, the battery is fully charged automatically stop.

· Wide-angle steering system, making the machine has excellent flexibility. With hydraulic automatic steering function. Platform consists of two AC inverter motor drive walking.

Control System

Adopt PLC and CAN bus control mode, the undercarriage, the turntable and platforms were installed on an industrial controller, simplifying the wiring, easy maintenance and repair. Metal plug air defense, protection grade IP65. At the same time the use of advanced CAN bus control circuit is simple, good reliability, maintenance and troubleshooting simple.

· Has upper and lower console (console and floor console platforms) and the upper and lower console commutation switching. When the upper portion of the lower part of the console to control the use of locking function.

· Console the hour meter displays the remaining battery power and other work carried out instructions.

The platform has a foot switch, only depress the foot switch in order to operate.

· Upper and lower console has an emergency stop button, when the operation of unforeseen circumstances, the operator can quickly cut off the power supply to avoid the platform continues to move.

With self-diagnostic function, customers can quickly and timely grasp of their work status of the equipment, better maintenance of the equipment. At the same time the product has the following features:

· Hour meter

· Battery discharge monitor

· Lighting instructions

· Driver operated warning

safety protection

· Working bucket with automatic leveling feature, the tilt angle of the bucket relative to the horizontal plane of the work can not be greater 1.5 °.

The platform reaches a certain amplitude and height, speed and movement speed of the boom automatically restricted. When the machine is parked in the irregularities of the ground Chaoguo 3 °, jib action will be limited.

· Both the upper and lower console shield protection.

· Boom head, cylinder piston rod, etc. There are dust and sediment retention device.

· Undercarriage and turntable position with rings for easy lifting.

Action Program features:

· Only when luffing tower arm to the maximum angle, the tower arm telescopic arm can be extended;

· Only when the tower boom is fully retracted telescopic boom, luffing tower arm down to prevent tipping forward and backward tilting, to ensure the stability of the vehicle.

· Patented weighing device. Using our patented technology of weighing device, the weighing device can achieve accurate weighing table load.

· The load weighing device not affect the position of the platform to avoid a miscarriage of justice affect the normal operation of the platform.

· PLC and CAN bus control. In the base chassis, the turntable and platforms were installed on an industrial controllers, which have a degree of protection IP65, while the use of advanced CAN bus control circuit is simple, good reliability; maintenance and troubleshooting simple.

· Electronic leveling, leveling work platform is to rely on leveling controller detects the angle of the platform relative to the vertical line, the output signal proportional control valve leveling automatic leveling, high leveling precision and reliability.

Descriptions Of Compact structure electric scissor aerial work platform lift promotion

1.The Mobile Scissor Lift is mainly used for lifting cargos and delivering goods,high-altitude operations.
2.An ideal equipment of safe operation
3.It is charactrized by great loading capacity.
4.Steady ascending and descending
5.New hydraulic system increase safety and protects 4M-18M hydraulic mobile scissor lift
6.Mobile convenient ,easy to work.
7.Economy and practicability.
8.It is applicable in the warehouse and garages and port ,building and so on.

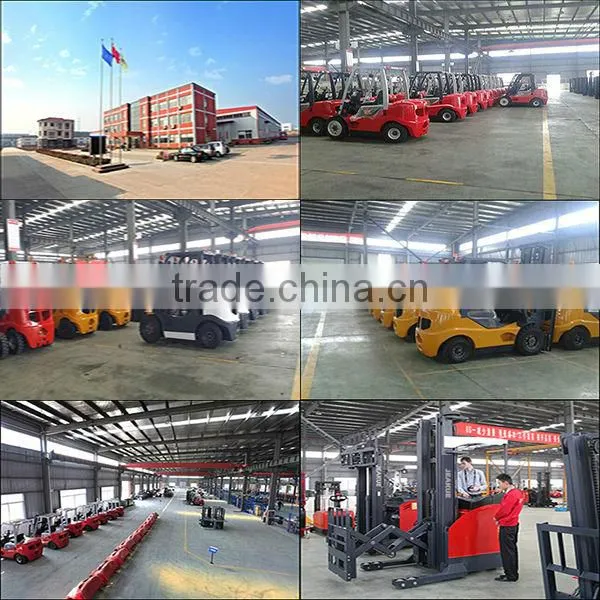

Shenchuan (Shanghai) Heavy Industrial Machinery Co., Ltd. was established in May 2003 in Shanghai. Over the past 10 years, we have been always adhering to the idea of “all service to meet customers’ needs”, breaking through technology, manufacturing the finest products, improving service with our globalization vision.
